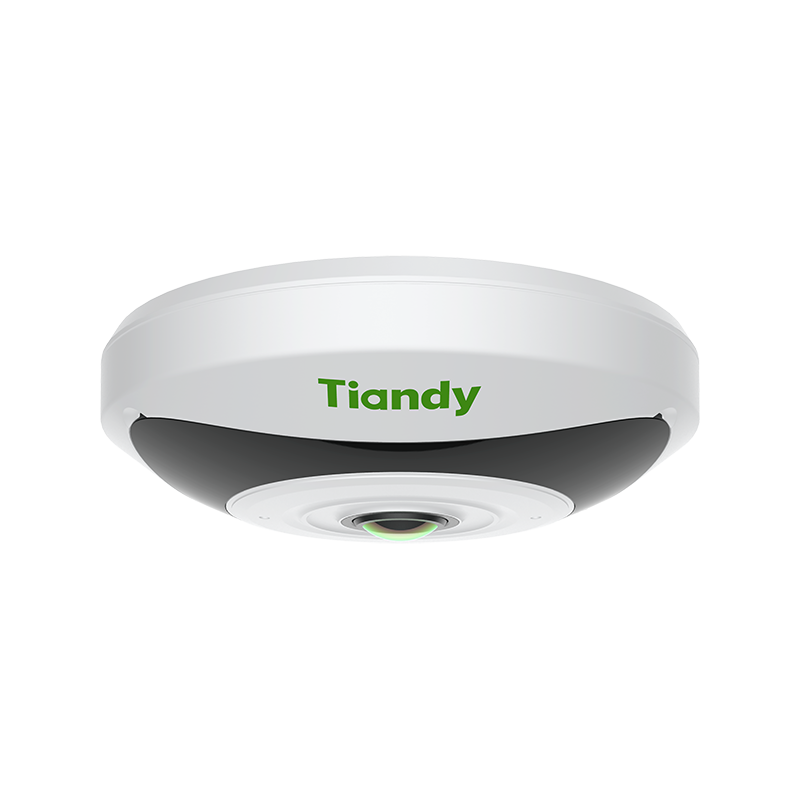

Tiandy 5MP Fixed IR Fisheye Camera

Product
Description

Camera

Image Sensor

1/2.7″CMOS

Min. Illumination

Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

IR-cut filter with auto Switch (ICR)

Smart IR

Yes

WDR

120dB

S/N

>39dB

Lens

Lens Type

Fixed focal lens

Focal Length

1.4mm

Lens Mount

M12

Aperture Range

F2.0

Aperture Type

Fixed

Field of View

180°(H); 180°(V); 180°(D)

DORI Distance

Detect:24m Observe:9m Recognize:4.8m Identify:2.5m

Illuminator

IR LEDs

3

IR Distance

Up to 30m

Wavelength

850nm

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

Video Bit Rate

32k~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

5MP,2592×1944@30fps

Main Stream

PAL:25fps(2592×1944, 2560×1440, 1920×1080, 1280×720) NTSC:30fps(2592×1944,
2560×1440, 1920×1080, 1280×720)

Sub Stream

PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240,
640×360, 352×240)

Third Stream

PAL:25fps(1920×1080, 1280*720) NTSC:30fps(1920×1080, 1280*720)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight
Lamp/Filament Lamp/Lock White Balance

ROI

8 rectangular static areas

OSD

Overlay of additional characters in 5 regions, 2 lines, with a maximum of
127 characters or 42 Chinese characters per region;
16*16/32*32/48*48/64*64/96*96

Picture Overlay

1*200×200 size BMP 24 color bit image overlay

Privacy Mask

4 black static areas

Defog

Yes

Feature

General Alarm

Motion Detection; Mask Alarm; Alarm Input

Exceptions Alarm

Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address
Conflict; FTP Server Exception

Linkage Method

Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify
Surveillance Center; Alarm Output

Video Analytics

Tripwire; Double Tripwire; Perimeter; Heatmap

Rules of Behavior Analyse In 1 Scene

8

Network

ANR

Yes

Protocols

HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1v2v3; DHCP; DNS; DDNS;
Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH;
Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP

System Compatibility

ONVIF(Profile S/T/G) ; SDK; CGI; Milestone; RTSP; RTMP

Remote Connection

?2

Client

Easy7 VMS

Moblie Client

EasyLive Plus

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface

Communication Interface

1*RJ-45 (10/100 Base-T)

Audio I/O

1; 1

Alarm I/O

1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC

Built-in Mic

Yes

Reset Button

Yes

On-board Storage

Support microSD/microSDHC/microSDXC card,up to 512GB

RTC

Yes

General

Web Client Language

17 languages Simple Chinese/Traditional
Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian

Operating Temperature

-40?~65?(-40?~149?)

Operating Humidity

?95%RH

Storage Temperature

-40?~65?(-40?~149?)

Storage Humidity

10%~95%RH(non-condensing)

Power Supply

DC12V±25%,Max. 8.5W; PoE:IEEE 802.3af,Max. 9.5W

Protection

Surge4000V; ESD6000V

Boundary Dimensions

122(L)122(W)39(H)mm

Package Dimensions

140(L)140(W)120(H)mm

GrossWeight

0.416kg
