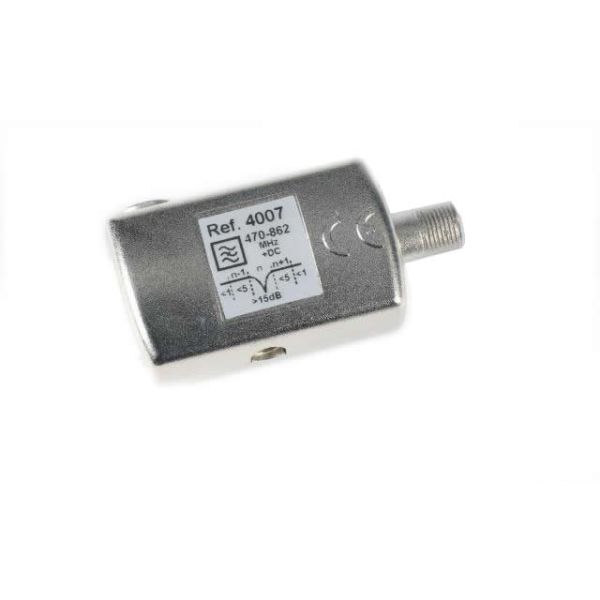

Trap filter 1 channel (Connection F).
Filter trap 1 channel (Connection F). Ref. 4007 Televes.
The trap filter has a fast connection input and an output F with F female connector.
The filter is used to reject a particular channel. & Nbsp;
The control channel is performed with a screwdriver. The ideal is to have a field meter to make u
Caracter?sticas:
Conector F.
Dimensiones: 63x33x22.
Paso corriente DC.
?
