Triax MFC 109 LTE 700 – Mast Amplifier (V+H+FI)
KSh4,428.00

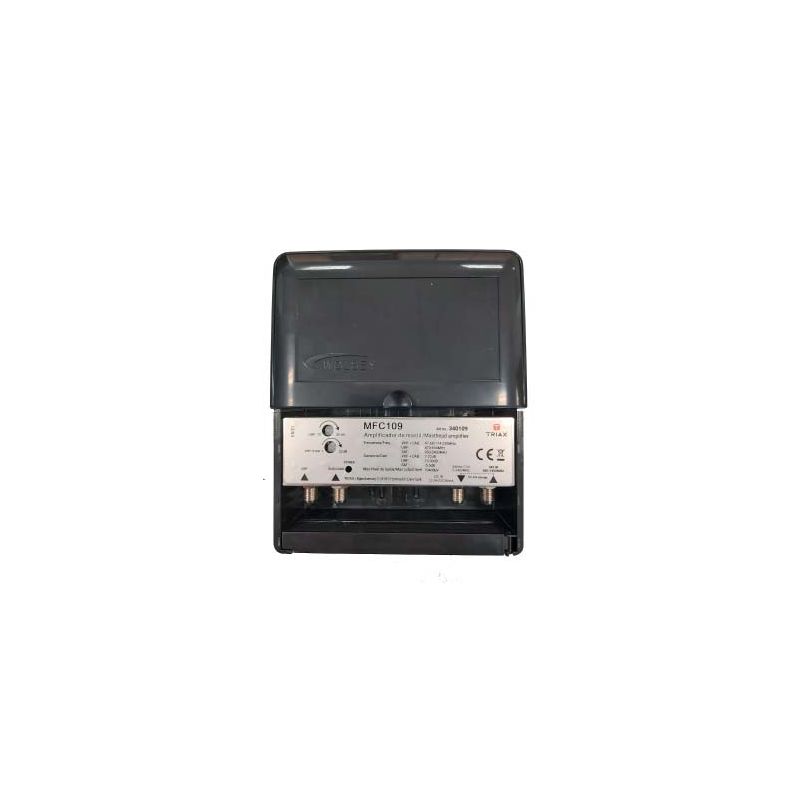

The MFC 109 LTE 700 is a mast-mount amplifier, powered via coaxial drop cable, covering the VHF (DAB), UHF and IF (SAT) bands in step. Its circuit is adapted to amplify the analog and digital terrestrial signals, mixing these with the IF signals through a low loss combiner, and allowing the passage of current to feed the LNB.
It has an LTE 700 filter to cut the range of channels from 49 to 59 whose frequencies (694 – 790 MHz) have been assigned for mobile communications services (LTE / 5G). It has 3 inputs: VHF (DAB), UHF and SAT and a single high-level output 104 dB?V.
Characteristics
Plastic box made of materials resistant to atmospheric agents.
Complies with RED regulations.
LED indicator of operation.
Adjustable gain.
Low noise figure.
12 to 24 Vdc power supply.
Pass current (max 400 mA) to supply the LNB
Simple and easy pole or wall mounting.
Specifications
Product MFC 109 LTE 700
Number of inputs / outputs 3/1
Entrance 1
Band
Frequency
Channel
MHz
UHF
470 – 694
21 – 48
Entry 2
Band
Frequency
Channel
MHz
BI / BII / DAB
47 – 68/174 – 230
5 – 12
Entrance 3
Band
Frequency
Channel
MHz
SAT
950 – 2400
Gain
BI + FM + BIII
UHF
SAT
dB
dB
dB
7 – 22
15 – 30
-5.5
Noise figure
BI + FM + BIII
UHF
dB
dB
2.8
1.8
Max. Output level
@ -60dB IMA3
dB?V 104
Supply voltage VDC 12 – 24
LED indicator Green Yes
Connectors F-female
Weight Kg 0.205
Dimensions
High or tall
Depth
Broad
mm
mm
mm
95
Four. Five
145
Related products
-
Add to cartVHF/2UHF Preamplifier / 2 Outputs
7413DC
Features
1 x VHF input (BIII/DAB) / 2 UHF inputs
2 broadband outputs
Selectable DC current step
Output level up to 109 dB?V
Adjustable gain on VHF 0-20 dB
Adjustable gain on UHF 8-28 dB
LTE (5G) rejection
Very low noise figure
Power LEDs
Operating voltage 12-24 VDC
Wall or mast mount
Specifications -
SmartKom LTE700 Televes smart mast amplifier
KSh50,340.00Add to cartSmartKom Intelligent Mast Amplifier with Autoprogramming. 4e/1s ?EasyF?: 3x(VHF/UHF)[dc]-FMmix G 45-(-1)dB Vs 85dB?V. Includes Home Power Supply 2e/1s ?F? 12V-800mA, with Bluetooth antenna.
-
Add to cartThe Televes 5354 mast amplifier has 2 inputs and 4 outputs that also allow the passage of the signal of a parabolic antenna, with an amplification power of 21db.
-
-
Add to cartKit consisting of:
Ref. 561521: Amplificateur NanoKom, 3 entr?es: BIII/UHF-FMcoupl?-BIScoupl? ? ?
Amplificateur de m?t qui amplifie et couple les signaux de television terrestre et satellite provenant de diff?rentes antennes.
Il poss?de 3 entr?es: Les signaux BIII/UHF sont amplifi?s alors que la FM et la BIS (SAT) sont uniquement coupl?s.
Passage de courant sur l’entr?e satelllite pour alimenter le LNB.
Ref. 5796: PicoKom power supply (for FImix) 12V – 220mA, 1 output
12V (220mA) source, which sends power through the input coaxial cable, allowing the TV signal to pass through. It is sandwiched in the installation to power mast amplifiers or a BOSS system. It is compatible with amplifiers with satellite mixing (FImix), as it automatically detects the existence of an LNB management signal (voltage and tone) generated by a receiver at its output, and lets it pass to its input.
Stands out for
They incorporate “USOS” (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device adjusts automatically to adapt its gain to variations in the input signal.
Separate amplification and very low noise figure, thus respecting the signal quality
Ultra-slim ergonomic design
EasyF connection system
They can be powered from 12 to 24V
Fully automated manufacturing subjected to rigorous quality controls
High armor chassis, made of Zamak
Main Features
LTE700 / 5G filter to eliminate telephony interference
ON / OFF switch to allow DC through to UHF input, to power a BOSS system
Simple assembly. Flange for fixing to the mast included
Durable orange ABS plastic housing for outdoor installation
EasyF connection system: simplicity and savingsThe EasyF is an innovative concept of connection of the internal conductor of the coaxial (live) cable, which is inserted directly into the device increasing the reliability of the connection. Furthermore, thanks to the absence of “F” connectors, it is possible to reduce the chassis and secure the connection of two cables with a single screw.
Real time savings: speeding up the installation is possible, as it is not necessary to make the connectorization of the coaxial cables. In addition, the process of threading the connectors on the device is avoided, which is sometimes complicated when space is not enough.
Connection reliability: the cable tie that holds the cables prevents the coaxial from loosening
Cost savings: no additional connector (neither “F” nor “CEI”) is required
Space optimization: inputs and outputs are always located on the same side of the device, avoiding bending the coaxial cables and facilitating work inside cabinets and registers
Very simple assembly in three steps: you only need to screw and unscrew the covers to connect two cables:
1. Unscrew the cover of the device to access the connection
2. Insert the previously stripped coaxial cables
3. Close the cover and screw to secure the connection
Find out more about the reliability of the EasyF system
With EasyF, the connection of the coaxial cable in the device is made by means of an automated system of insertion of the live (internal conductor) by contact, without requiring soldering.
Like the first day: the life of the device increases by eliminating the possible deterioration of the welds with the passage of time
Reduced failure rate: generally caused by cold welding
Optimization of electromagnetic behavior: at high frequencies
Reinforcement of our commitment to the environment: pollution caused by the welding process is eliminated and electricity consumption in production is reduced
