Ubiquiti Networks UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE) (UAP-IW-HD)
Ubiquiti
Networks UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE)
UniFi IW HD

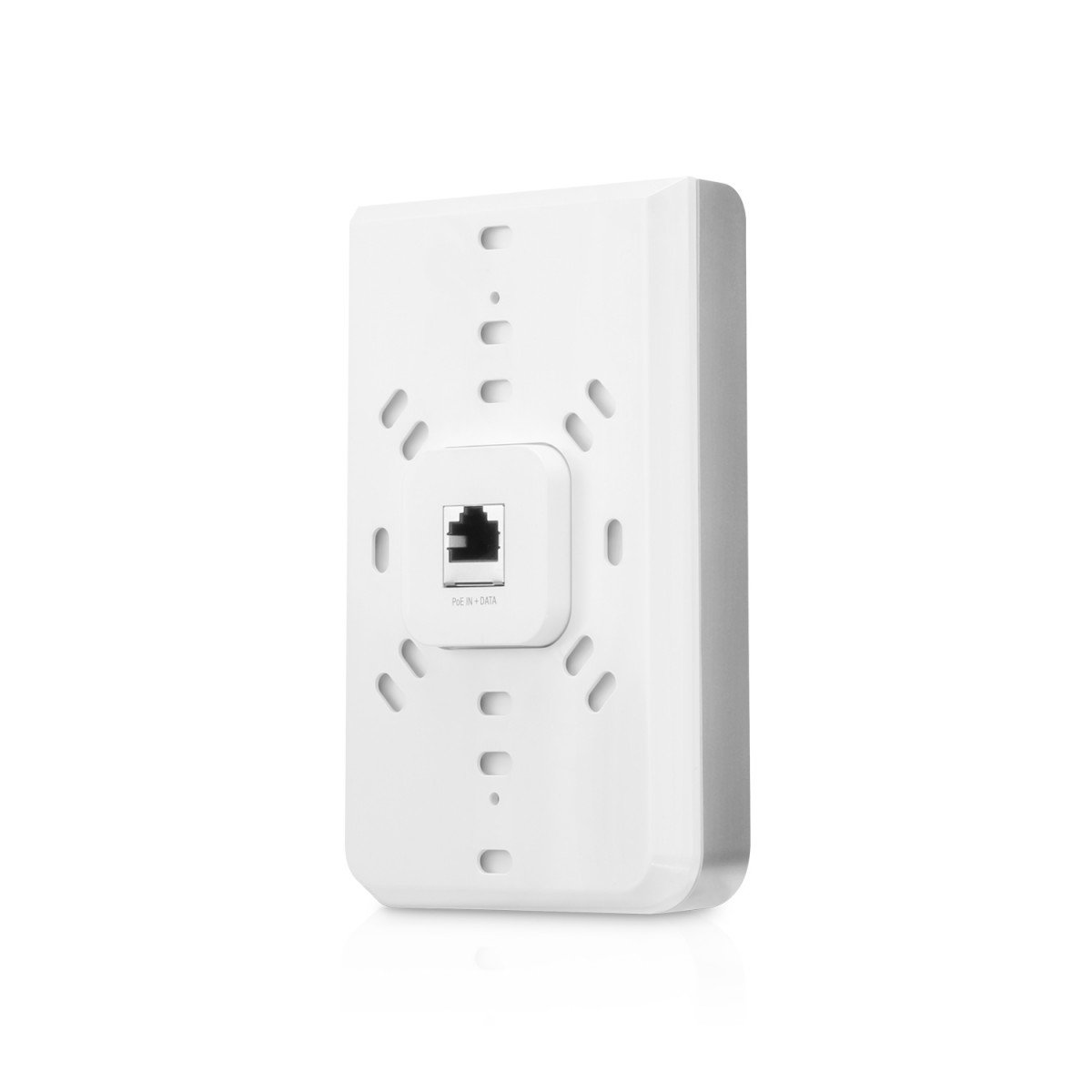

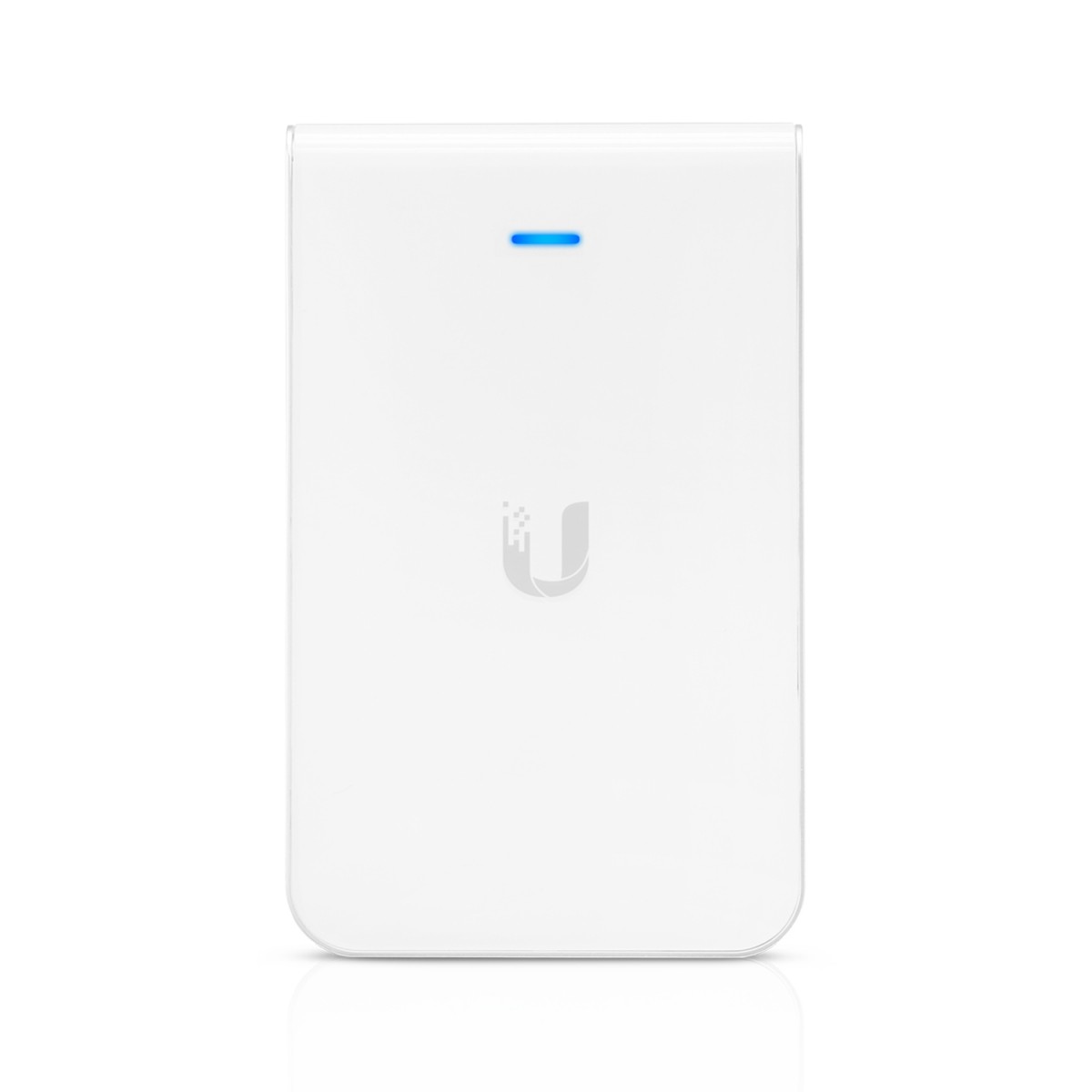

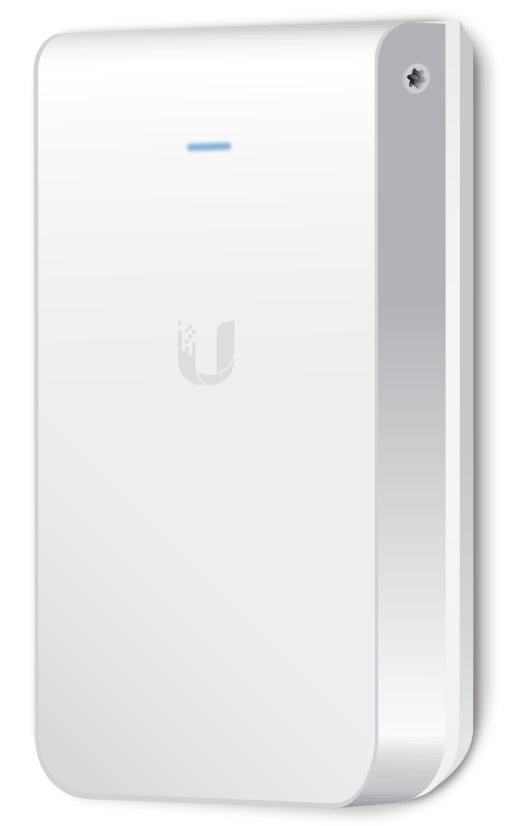

The UniFi IW HD AP has a refined industrial design and can be easily
installed using the included mounting hardware. Easily accessible through any
standard web browser and the UniFi app (iOS or AndroidTM), the UniFi
application is a powerful software engine ideal for high-density client
deployments requiring low latency and high uptime performance.
Integrated Gigabit Switch
Four ports are available for bridging – one of which offers PoE passthrough
when the AP is powered by an 802.3at PoE+ switch.
Superior Processing Power
The UniFi IW HD AP is capable of complex operations (guest control,
filtering, and other resource-intensive tasks) that may slow down a
lesser-equipped AP.
Power over Ethernet (PoE) Standard
The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at
compliant switch. We recommend powering your UniFi devices with a UniFi PoE
Switch.
Quick and Simple Installation
The UniFi IW HD AP has a refined industrial design and can be easily
installed using the included mounting hardware.
Customizable with Various Skins
Optional skins (sold separately) allow the UniFi IW HD AP to discreetly
blend into its setting.
UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out
networks, quickly manage system traffic, and provision additional UniFi
APs.
Additional Product Notes
4×4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2×2 MIMO on 2.4GHz (300Mbps
max PHY rate)
802.3af for base functionality. 802.3at required if using PoE
passthrough
1×4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE
passthrough (port 1 only)
Maximum data transfer rate Wi-Fi data rate (max) Ethernet LAN data
rates WAN connectiony Security algorithms Placement Antennas quantity
1733 Mbit/s 1733 Mbit/s 10,100,1000 Mbit/s Ethernet
(RJ-45) WEP,WPA,WPA-AES,WPA-Enterprise,WPA-PSK,WPA-TKIP,WPA2,WPA2-EAP,WPA2-TKIP Wall 4
Wall-mounted
WiFi 5 AP with 6 spatial streams and a built-in 4-port switch ideal for
single-room coverage in hospitality environments.
WiFi 5
6 spatial streams
90 m² (1,000 ft²) coverage
200+ connected devices
Powered using PoE/PoE+*
(4) GbE ports with (1) PoE output
GbE uplink
*PoE+ input required for single-port PoE output.
