Ubiquiti Networks UniFi UAP-IW 150 Mbit/s White Power over Ethernet (PoE)
KSh8,864.12
**
UAP-IW –
excellent network updating tools

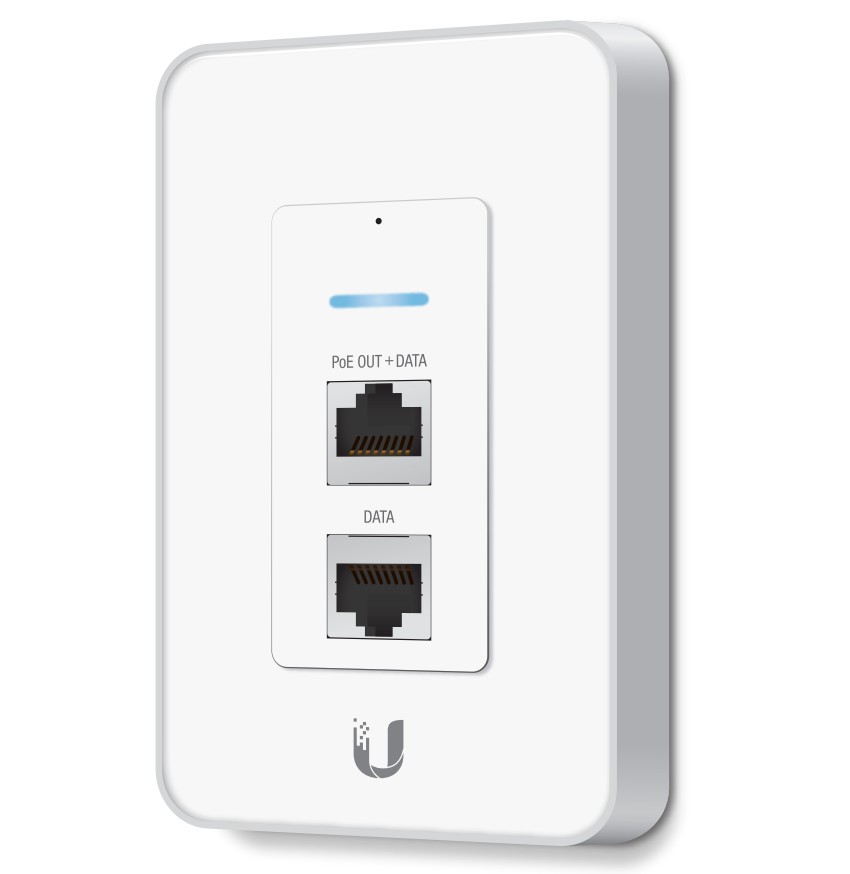

The Ubiquiti UniFi AP In-Wall allows for the transformation of an Ethernet
socket into a wireless access point. It is equipped with one RJ-45 port and
one PoE port which is perfect for connecting VoIP solutions.
The Ubiquiti UAP-IW access point meets the requirements of those users who
want to update their network. It allows for the transformation of an Ethernet
socket into a versatile UniFi access point without the need for additional
cables.
Key features
functional and simple
easy and quick to install
works with the UniFi Switch (24 and 48 port versions)
ability to connect cameras and VoIP phones
Structure example
Installation
An intuitive installation process allows for the transformation of any
Ethernet socket into a functional access point.
Use
The device works with UniFi switches (8, 16, 24 and 48 port versions). It
is equipped with two ports. It works in the 802.11bgn 2.4GHz band with a
range of 25 m. It is perfect for small rooms (hotel rooms, offices,
etc.).
Comparison
UAP-IW UAP UAP-LR UAP-PRO
2.4 GHz Speed¹ 150 Mbps 300 Mbps 300 Mbps 450 Mbps
5 GHz Speed¹ 300 Mbps
Range¹ 25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)
Gigabit Ethernet
Secondary Ethernet Port
Wi-Fi Standards 802.11 b/g/n 802.11 a/b/g/n 802.11 a/b/g/n 802.11
a/b/g/n
2.4 GHz
5 GHz
Simultaneous Dual-Band
Ubiquiti Passive PoE
802.3af PoE
²
Security Lock
¹ Speed and Range values may vary and are based on optimal
environments.
² UniFi switch support only.
Unboxing
Manufacturer’s content
Read more in the manufacturer’s documentation
Read the manual
Specifications
