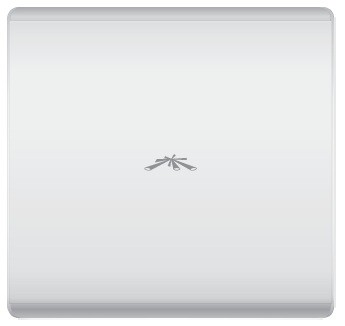

Ubiquiti PBM5 Networks PowerBridge M5 150 Mbit/s White

PBM5 –
efficient Ubiquiti solution
The Ubiquiti PBM5 is a professional device that combines innovation with
durability. Thanks to the use of latest technology the power of the product
is extraordinary.

This product is equipped with a 400 MHz Atheros MIPS 24KC processor. The
device uses 64 MB internal memory and 8 MB flash drive memory. Data may be
transferred with  speeds of up to 150 Mbit/s.

Work

The device works in the 5.470 – 5.825 GHz band. When it comes to
connections it uses standard LAN and WLAN solutions, it is equipped with one
Ethernet LAN (RJ-45) port. It is distinguished by 10/100BaseT(X) cable
technology.

Use

The PBM5 is used to create efficient and stable Point-to-Point
connections.

Antenna

The antenna’s maximum gain is 26.5 dBi and it allows for the creatioin of
wireless connections over distances of up to 20 km. Its durable components
allow for use at temperatures ranging from -30 to 80 degrees Celsius.

Installation

The installation of the device is simple and intuitive. The installation
process is easy and effortless.

Key features
works in the 5 GHz band
150+ Mbps bandwidth
26.5 dBi maximum gain
Dual Linear polarisation
2×2 MIMO
445 x 416 x 34 mm size

Comparison

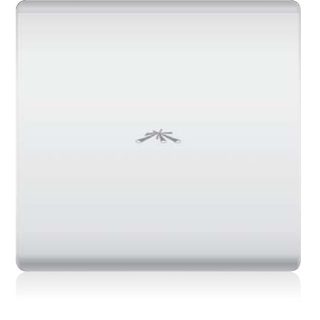

PBM3

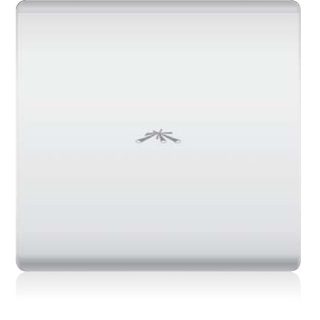

PBM365

PBM5

FREQUENCY 3 GHz 3.65 GHz 5 GHz
THROUGHPUT 150+ Mbps 150+ Mbps 150+ Mbps
RANGE 20+ km 20+ km 20+ km
DIMENSIONS 445 x 416 x 34 mm 445 x 416 x 34 mm 445 x 416 x 34 mm
NETWORKING INTERFACE (1) 10/100 Ethernet Port (1) 10/100 Ethernet Port (1)
10/100 Ethernet Port

Manufacturer’s content

 Read more in the manufacturer’s documentation

Specifications
