Ubiquiti UAP-LR-3 Networks UAP-LR 300 Mbit/s Power over Ethernet (PoE)

UAP-LR-3 –
a set of reliable UniFi access points

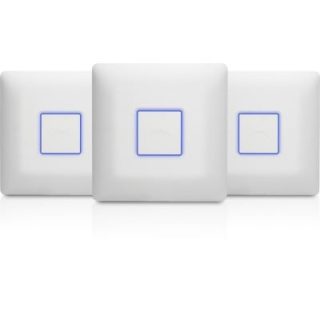

This set of three UniFi LR access points differs from the standard UAP
series by means of a longer range of up to 183 m. The devices use 802.11n
MIMO and have a speed of up to 300 Mbps.

A part of the Ubiquiti UniFi functional solution offer, the UAP-LR-3
includes three UAP-LR access points. They are distinguished by high capacity
and an original design. They work in the 2.4 GHz band and provide 300 Mbit/s
data transfer speed. They are equipped with an Ethernet port and two
integrated antennas. Their maximum range is 183 m. The devices support
PoE.

Key features
183 m range
dual band technology work
plug&play installation
easy configuration
can be mounted on walls and ceilings
scalability
modern design

Use

The manufacturer guarantees that the devices are distinguished by their
functionality and use of advanced technologies. This is reflected not only in
its use but also in the design itself. An industrial, simple design and
compact construction with an LED ring, it does not take up too much space,
working perfectly in environments that require long range. The devices can be
mounted on walls or ceilings.

Comparison


  UAP-IW UAP UAP-LR UAP-PRO
2.4 GHz Speed¹ 150 Mbps 300 Mbps 300 Mbps 450 Mbps
5 GHz Speed¹       300 Mbps
Range¹ 25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)
Gigabit Ethernet

Secondary Ethernet Port


Wi-Fi Standards 802.11 b/g/n 802.11 a/b/g/n 802.11 a/b/g/n 802.11
a/b/g/n
2.4 GHz

5 GHz

Simultaneous Dual-Band

Ubiquiti Passive PoE

802.3af PoE
²

Security Lock

¹ Speed and Range values may vary and are based on optimal
environments.

² UniFi switch support only.

See video

PoE Switch Compatibility for UAPs and UVCs
AP/Camera Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter:
INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.

 Manufacturer’s content

  Read more in the manufacturer’s documentation

  Read the manual

Specifications
