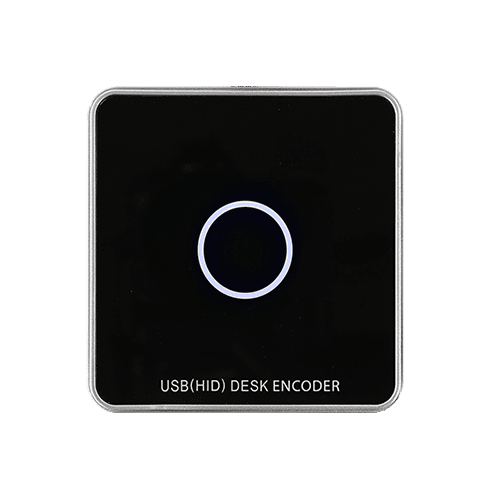

ZKTeco D147-H LOCK Hotel Cards Encoder
Description
ZKTeco D147-H LOCK Hotel Cards Encoder
D147-H Encoder, a non-contact smart USB hotel IC card encoder based on an international standard ISO / IEC14443 A protocol, works perfectly with the ZKBioSecurity Online Hospitality software. The encoder uses USB interface for power supply.
Its simple operation, stable card reading performance, plus compatibility with plenty card types make it a good fit for RFID applications such as hotel, access control, time & attendance, security, patrol, etc.
ZKTeco D147-H LOCK Hotel Cards Encoder specifications
Model
D147-H Encoder
Dimensions
107 * 107 * 23 (mm) (wire length: 1,500mm)
International Standard
ISO / IEC 14443 A
Card Supporting (Read-only)
S50 / S70 / DESfire / NTAG213 / NTAG216 / Ultralight / FM1204 / FM12
Card Supporting (Read and Write)
S50 / S70 / DESfire / NTAG213 / NTAG216 / Ultralight / FM1204 / FM1208
Read Range
0 ~ 3cm (depends on the work environment and card type)
Operating Humidity
13.56MHz
Power Supply
DC 5V (±4%)
Operating Temperature
-10°C ~ +70°C
Storage
-20°C ~ +80°C
