1.5m TSH Coaxial Cable Lead IEC Male Compression – IEC Female PROEasyF
1.5m Coaxial Cable Lead TSH Class A++ IEC Male – IEC Female Televes 3858

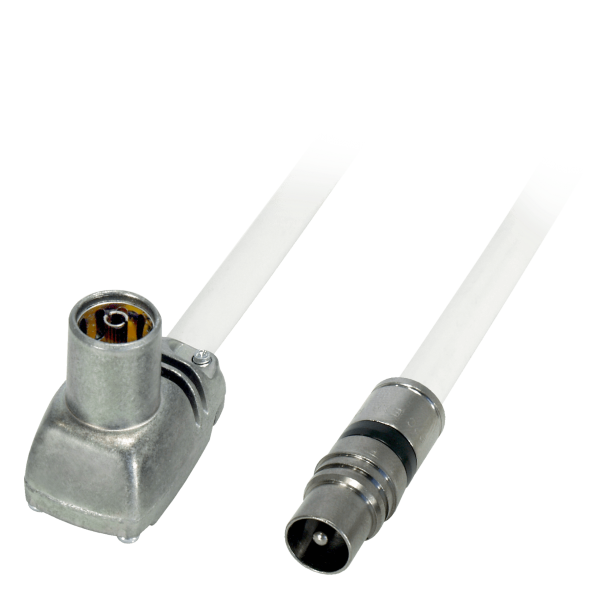

High quality 1.5 meter coaxial patch cord with IEC Male compression connector at one end (ref. 3818) and IEC Female PROEasyF at the other (ref. 413210). Using white 75 ohms SK2000plus triple-shielded class A++ cable.
Cable with copper conductor (Cu) and tinned copper braid (CuSn), recommended for routes with high levels of electromagnetic noise, since it is a cable with very high triple shielding (TSH) and class A++.
Coaxial extension cable designed for connection from the wall socket to the TV device. It can also be used for professional applications, due to its excellent characteristics.
**
1.5m Triple Shield and Class A++ Coaxial Cable Lead with IEC Male Compression and IEC Female PROEasyF connectors
What technical specifications does the Televes 3858 Coaxial Cable have?
References / Art. Nr. 3858xx / KS-KKW20xx
?Cable type Class A++
?Inner conductor ?? mm 1.02
?Material? Cu (copper)
?Resistance ohm/Km 22
?Dielectric ?? mm 4.6
?Material? PEE (foam polyethylene)
?Over lapped foil ?Material Aluminium + Polyester
?Braid ?Material? CuSn (tinned copper)
?Resistance ohm/Km 10.5
?Coverage % 82
?2nd shielding film Si
?Outer sheath ?? mm 6.7
?Material? PVC (polyvinyle clorhidre)
?Minimum bending radius mm 33.5
?Shielding at 1GHz dB >105 (typ. 130)
?Capacitance pF/m 54
?Impedance 75
?Velocity ratio % 84
?Attenuations dB/m
?Frequency ?200 MHz 0.09
?500 0.14
?800 0.18
?1000 0.21
?1350 0.25
?1750 0.28
?2050 0.31
?2300 0.32
