PAU Distributor 8 Outputs F Connector 15dB from Televes

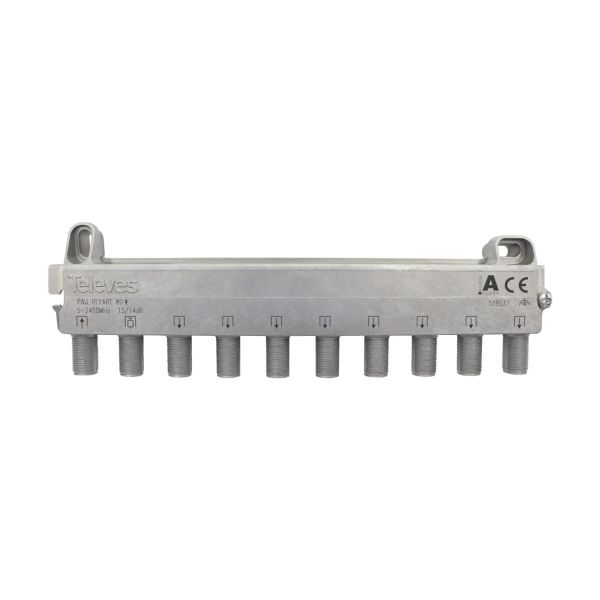

PAU Repartidor de 8 Salidas 519537 de Televes
Este repartidor de instalaci**n**interior tiene**8 salidas con conectores F, apto para**se**ales SMATV.**Dispone de un buen apantallamiento y**mejora las p**rdidas de paso.
Como viene con**PAU, ofrece una entrada adicional cargada de 75 Omhs**para la conexi**n de la segunda bajante. Este punto de acceso a usuario para distribuci**n se usa en instalaciones ICT-2 colectivas.**
Incluye tornillo de puesta a tierra y**paso de DC desde la salida a la entrada. **Tambi**n se puede instalar en exterior, siempre y cuando lo pongamos dentro de un cofre (TEL4177).
El repartidor tiene una atenuaci**n**15dB en terrestre y 14dB en SAT.**Se puede instalar sobre muro, rack o ensamblado sobre rail DIN. Su carcasa blindada est** hecha de**zamak**proporciona un**gran blindaje.**
Especificaciones T?cnicas del PAU Repartidor de 8 Salidas 519537 de Televes
Margen de frecuencia MHz 5 … 2400
N?mero de salidas ? 8
Entradas/Bandas ?
TERR SAT
P?rdidas de paso dB
15 14
Rechazo entre salidas dB
> 20 > 20
Conectores ? “F” hembra
Voltaje m?x. V 24
Corriente m?x. mA 350
Paso DC ? Sal.?Entr.
