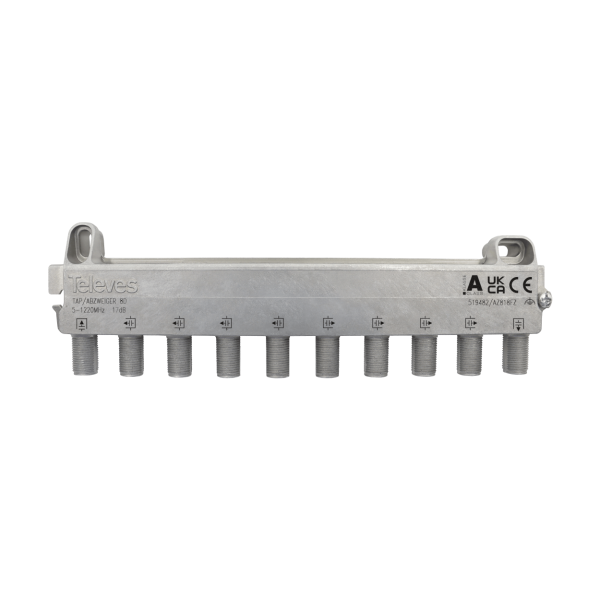

8-Output CATV Splitter F Connector 17dB from Televes
Televes 8 Outputs CATV shunt F connector 17dB
8-output F-type shunt with 17dB attenuation for terrestrial signals (5-1220 MHz), compatible with Docsis 3.1 coaxial cable data technology. It does not include DC power pass-through.
This shunt is used in indoor installations, for wall, rack or standard DIN rail mounting.
It has a high efficiency, comes with a chassis made of zamak, which provides a great shielding. It is compatible with DOCSIS 3.1, which is an international standard that defines the requirements needed to achieve the highest possible speed in data transmission over cable networks.
This shunt is not suitable for satellite signal distribution.
Frequency range
MHz
5 … 1220
Number of exits
?
8
Step Losses
dB
4,5
Number of exits
dB
17
Rejection between derivation
dB
> 20
Connectors
?
“F” female
