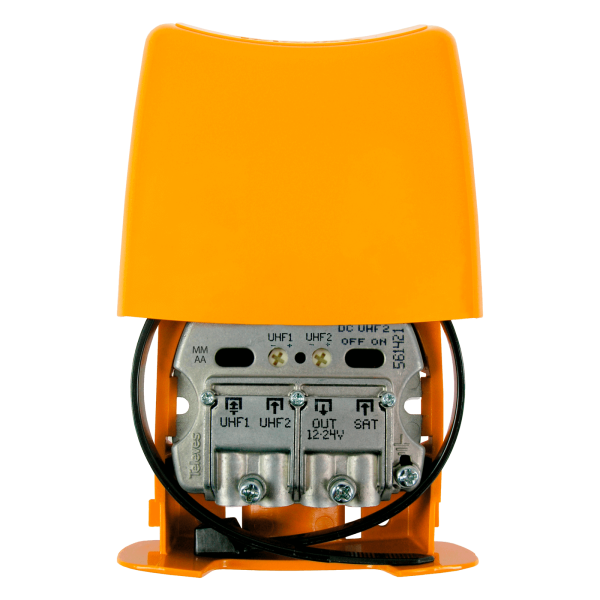

Mast Amplifier 28dB UHF-UHF-FImix LTE 5G
Mast Amplifier 28dB 3 Inputs (UHF-UHF-FImix) LTE 5G Televes 561421
Mast amplifier with 3 inputs UHF-UHF-FImix: the two UHF inputs are amplified at 28dB, while the FI (satellite) is only mixed. It allows DC pass in the UHF2 input and to power the LNB; It has an ON/OFF switch to power the UHF antenna.
The device can be powered at 12-24V. Its EasyF connection system simplifies installation by not requiring connectors, only the stripped coaxial cable.
Amplifier adapted to the 2nd Digital Dividend thanks to the integrated LTE700 (470-698 MHz) filter that eliminates interference with the 5G band.
3-input UHF-UHF-FImix mast amplifier with 28dB gain and 5G LTE filter
What are the main characteristics of the Televes 561421 Mast Amplifier?
Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
Fully automated manufacturing, subject to the most stringent quality controls
High-screening Zamak chassis
LTE filter to remove mobile phone interference
ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
Easy mounting. Equipped with a clamp for mast mounting
Resistant ABS-plastic orange case for outdoor installation
What technical specifications does the Televes 561421 Mast Amplifier have?
Bands UHF 1 UHF 2 SAT
Frequency margin MHz 470…694 470…694 950…2150
Gain dB 28 -2,5
Gain adjustment range dB MANUAL
0 … 20 –
Max. output level DIN 45004B dB 108 –
EN 50083 115 –
10 CH DVB-T – –
Noise level dB 6,5 –
DC Pass DC UHF OFF mA 0
ON – 40 –
DC SAT – – 300
Power supply Vdc/mA 12-24 / 50
Protection index IP 23
Operating temperature ?C -5 … +45
