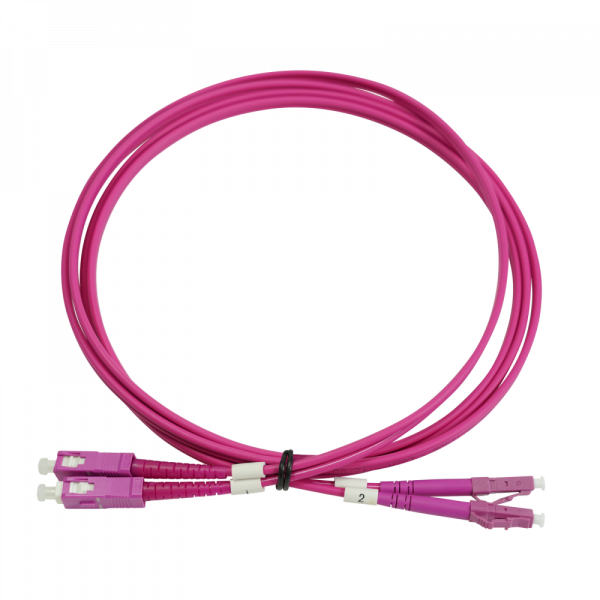

Multimode Fiber Optic Patch Cord OM4 3mm Duplex LC/PC ? SC/PC LSFH 2m
OM4 Multimode patch cord with Duplex LC/PC ** SC/PC connector from Televes
This fiber optic patch cord allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters. These patch cords are mainly used to interconnect routers and switches through the SFP ports found in the same rack. In this case it will be used when the switches have OM4 multimode SFP ports with LC/PC connector and are separated by a distance of less than 2 meters.
This fiber optic patch cord has two LC/PC connectors at each end and two SC/PC connectors at the other, since it is duplex. Its 3mm cover is LSFH halogen-free, suitable for indoors.
This cable comes in magenta color, the cable type is multimode OM4 ITU-T G.651.1.
Technical Specifications of the OM4 Multimode Patch Cord with Duplex LC/PC ? SC/PC connector from Televes
?
Fiber core type ? Multi-mode (ITU-T-G.651.1)
Optical fiber type category ? OM4
Fiber core diameter ?m 50
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Outer sheath Diameter mm 3
Outer sheath Material ? LSFH
Blocking jelly ? No
Insertion losses in connector 1 dB < 0.3
Insertion losses in connector 2 dB < 0.3
Return losses in connector 1 dB > 30
Return losses in connector 2 dB > 30
Optical connector type 1 ? LC
Polishing type (Optical connector 1) ? PC
Optical connector type 2 ? SC
Polishing type (Optical connector 2) ? PC
Structure reinforcement element ? Aramid fibers
Minimum bending radius mm 45
Operating temperature ?C -20 … 70
