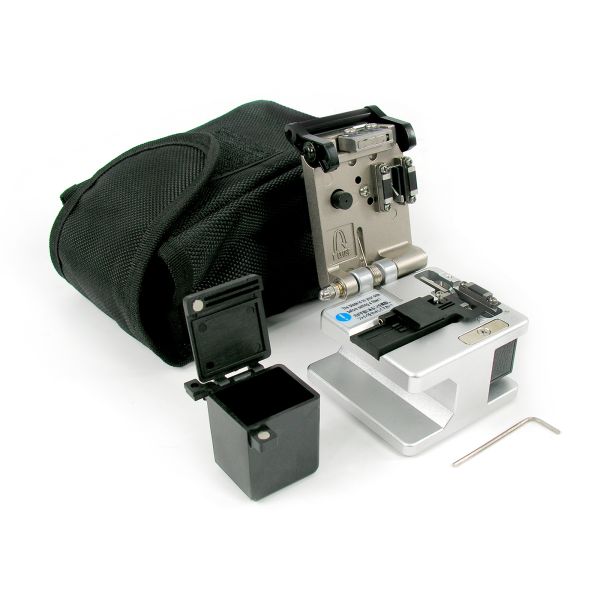

Fiber optic cutting machine 232301 Televes
Fo slicer
Equipped with high quality and precision components, the Televes 232301 cutter provides a perfect cut (90**), which usually generates a perfect fusion (0,01dB). The work process is facilitated by the assisted opening of the cutter. In addition, it includes a slider for the blade by magnet, which prevents premature wear of the tool.
It incorporates positioning guides for fibers with a coating of 250 and 900 microns, as well as for fibers with external protection of 3mm.
The fiber optic cutter 232301 is a high precision cutting cutter.
What technical characteristics does the 232301 cutter have?
Cut adjustment from 5mm to 20mm.
High precision of cut before the 125 microns of diameter of the fiber (90?).
It incorporates a container to collect the excess fiber after the cut, thus guaranteeing the safety of the operator.
Life of the blade exceeds 16,000 cuts.
It incorporates transport bag / protection, as well as a complete manual for its maintenance.
What is the 232301 cutter made of?
Blade slider
Guide groove for fibers with 250 micron coating
Guide groove for fibers with 900 micron coating
Guide groove for fibers with external protection of 3mm
Cutting blade
Cutting magnet
