Indoor Amplifier UHF/VHF 2S+TV 20dB “F” LTE 5G

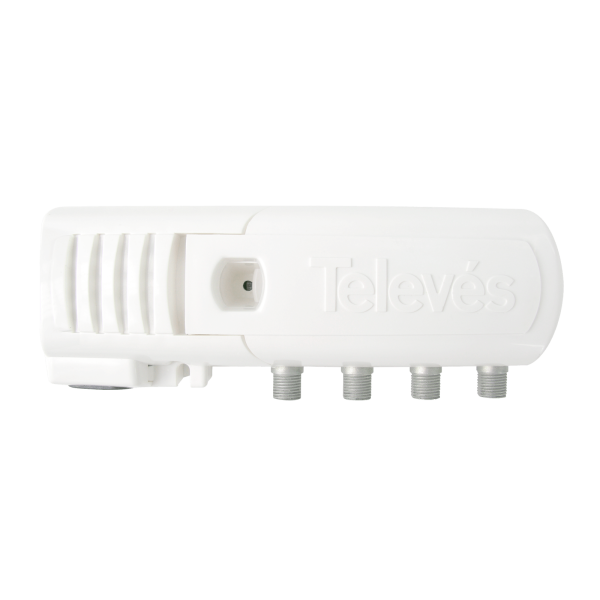

Indoor Amplifier UHF/VHF 2S+TV “F” 20dB Televes 552220
Indoor home amplifier for VHF/UHF with 3 “F” outputs (2 + 1TV) to expand the domestic TV network. Amplifier adapted to the 2nd Digital Dividend with integrated 5G LTE filter (694 MHz).
This amplifier has a gain of 20dB and supports a maximum output level of 110dB**V. The TV output has a lower gain (12dB) to be connected directly to the TV, without installing a outlet.
Discrete and compact design amplifier, with integrated low consumption power supply (40% less than other amplifiers).
Indoor amplifier for UHF/VHF G. 20dB with 3 outputs (2+TV) with 5G LTE filter
What are the main characteristics of the Televes 552220 Indoor Amplifier?
Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Manual gain control, protected by a folding cover
Can be wall-mounted using screws
?F? connectors
What technical specifications does the Televes 552220 Indoor Amplifier have?
Outputs 3 (2 + 1TV)
Frequency range MHz 47…694
Gain dB 20 (12 @TV)
Gain regulation margin dB 0 … 15
Output level EN50083(1) dB?V 117
DIN45004B 110
Noise figure dB 6
Mains tension/frequency V~/Hz 193-253 / 50-60
AC power consumption W/mA 2,3 / 23
Operating temperature range ?C -5 … +45
Protection index IP 20
