PAU Distributor 2 Outputs Connector F 5 dB Televes

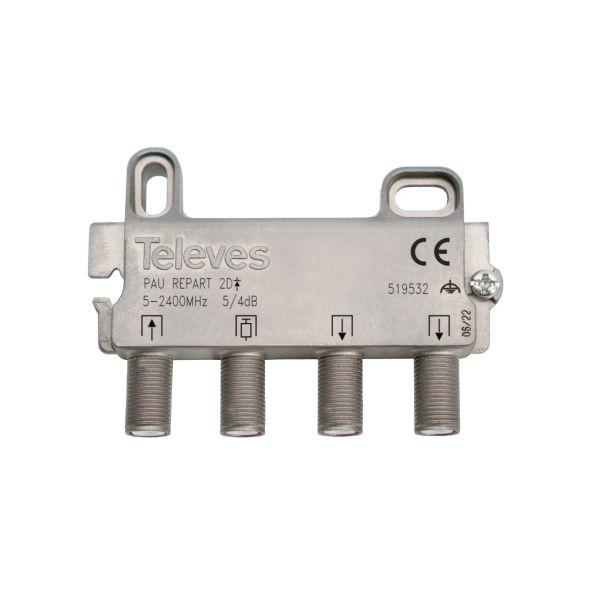

Televes PAU 2-Outlet PAU Distributor 519532
This installation splitter**indoor**has**2 outputs with F connectors, suitable for**SMATV signals.**It has a good shielding and**improves pass through losses..
As it comes with the PAU, it offers an additional 75 Omhs charged input for the connection of the second downstream. This user access point for distribution is used in collective ICT-2 installations;
It includes grounding screw and**DC pass from the output to the input. It can also be installed outdoors, as long as we put it inside a box (TEL4177).
The splitter has an attenuation 5 dB at 690 MHz. It can be installed on wall, rack or DIN rail mounted. Its shielded housing is made of zamak providing great shielding.
Technical Specifications of the PAU 2-Output Distributor 519532 from Televes
Frequency range
MHz
5 … 2400
Number of outputs
?
2
Inputs/Bands
?
TERR
SAT
Passage losses
dB
5
4
Rejection between departures
dB
> 20
> 20
Connectors
?
“F” female
Max Voltage
V
24
Max current
mA
350
Pass DC
?
out?in.
