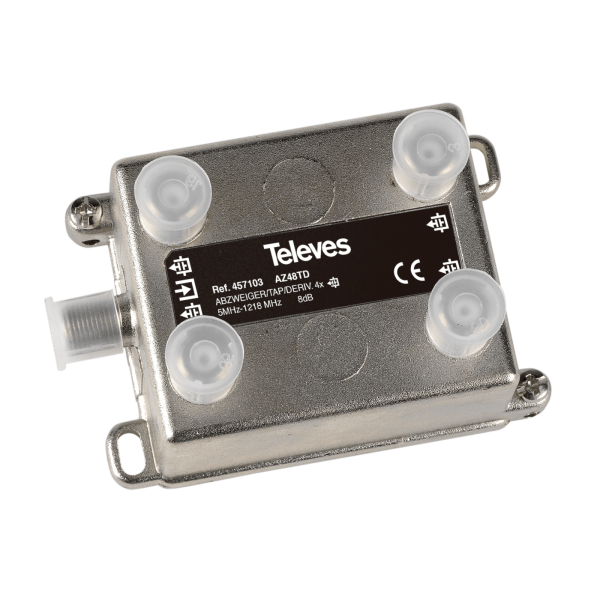

Shunt 4 CATV Outputs F Connector 8dB Televes
DTT tap 5-1220MHz 4D 8dB Docsis 3.1 Televes 457103
Tap with 4 front F-type outputs with 8dB of attenuation, without pass output.Tap for terrestrial signals 5-1220MHz, compatible with Docsis 3.1 coaxial cable data technology.
Due to the lack of pass output and the low insertion losses it has, it is designed to be installed on the first floor of an ICT home. It is for indoor installation.
This tap is not suitable for satellite signal distribution.
DTT tap (5-1218 MHz) with 4 F outputs with 8dB loss, compatible with Docsis 3.1
What are the main characteristics of the 4D Televes 457103 tap?
F connectors
Outstanding shielding
Grounding screw provided
Does not have any pass outputs.
What technical specifications does the 4D Televes 457103 tap have?
Frequency range MHz 5-1218
Number of outputs 4
Floors 1
Through loss dB –
Tap loss 8
Rejection between taps >20
DC Pass (max.) A –
