Distributor TDT-SAT 6D 11dB Connector F 519506 of Televes
TDT-SAT Splitter with 6 Outputs Connector F 519506 from Televes

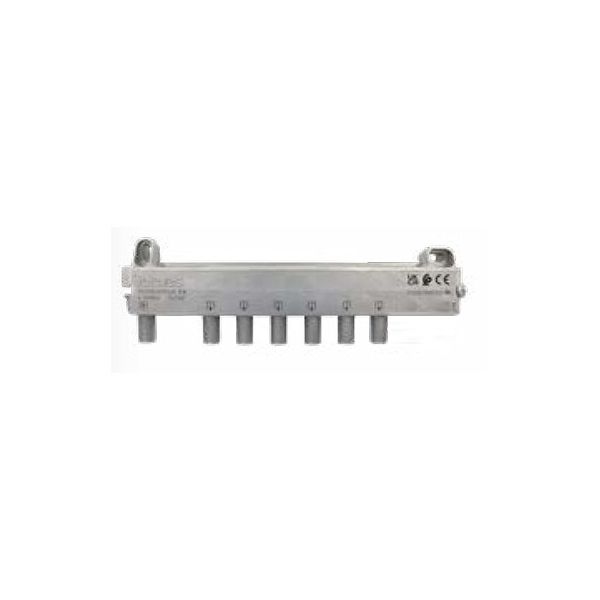

The splitter is a small-sized 6-output distributor with F connection that allows working in the frequency range from 5 to 2400 MHz.
This distributor has a good behavior at high frequencies, with low attenuations and high shielding efficiencies.
Improves through losses and provides good shielding.
Includes the grounding screw.
Technical Specifications of the Televes 6-Output DTT-SAT Splitter Connector F 519506
What technical characteristics does the 519506 distributor have?
?
F-connectors
Step loss improvement
good shielding
Includes ground screw
Frequencies: From 5 – 2400MHz
Number of Exits: 6
Lost: 12/11dB
?
Frequencies range MHz 5-2400
5-862 950-2400
Number of outputs 5
Step losses dB 10 12
