Distributor with 6 TDT Outputs with F Connector 12 dB from Televes

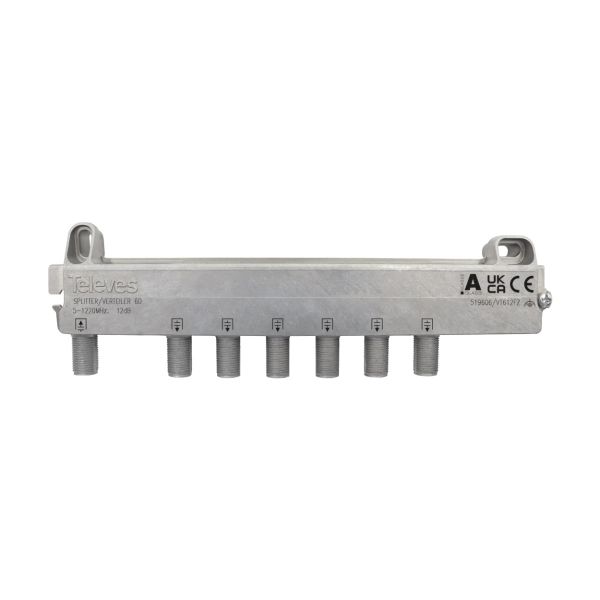

Televes F Connector 6-Output DTT Distributor
The distributor is a small 6-output distributor with an F connection that allows it to work in the frequency range from 5 to 1200 MHz.
This distributor has good performance at high frequencies, with low attenuations and high shielding efficiencies. Improves throughput losses and provides good shielding.
Includes grounding screw. Great mounting flexibility since it can be installed screwed to the wall, on rack plates or on a DIN rail (in the latter case, with adapter 519901).
Its connection is very simple since the 10** inclination angle it has makes it easier to screw in the F connectors. In addition, it allows the wiring to pass through its rear part.
This range of distributors can be chained together, through the ground screw itself, so that we will only use a single grounding cable.
Technical Specifications of the Televes F Connector 5 Output DTT Distributor
FREQUENCY MARGIN MHz 5 … 1200
NUMBER OF OUTPUTS ? 6
STEP LOSSES dB 12
REJECTION BETWEEN OUTPUTS dB
> 20 ?
CONNECTORS ? “F” female
?
