Splitter 3 Outputs Connector F 8/7dB of Televes
TDT-SAT distributor 3 outputs F Televes 519503

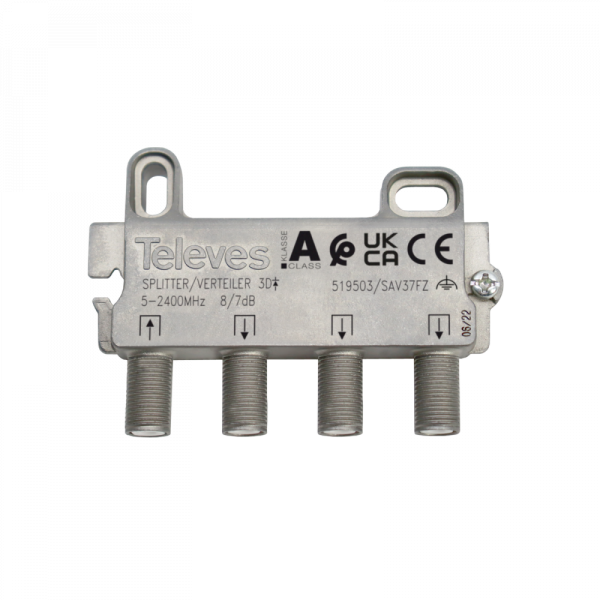

Televes 519503 interior distributor with 3 directions with type F connectors. This distributor works in the frequency range 5 to 2400 MHz and has an attenuation of 7dB for terrestrial signal and 8dB for satellite.
It is used to distribute the TV signal from a coaxial cable to 3 sockets in the house. Includes DC current step to power the LNB of the satellite antenna.
Technical Specifications of TDT-SAT Distributor 3 outputs F Televes 519503
?
Frequency range MHz 5 … 2400
Number of outputs ? 3
Inputs/Bands ?
TERR SAT
Through losses dB
8 7
Rejection between outputs dB
> 20 > 20
Voltage max. Vdc 24
Max. current mA 350
DC pass ? Out?In
