PBE-5AC-300 – PowerBeam series practical solution

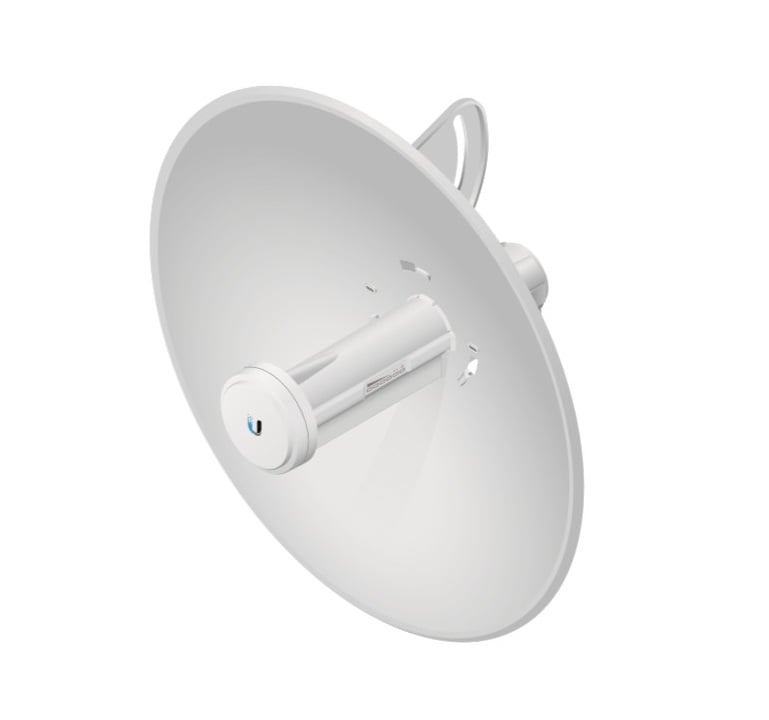

The PBE-5AC-300 is a complete Ubiquiti radio system which works in the 5
GHz band. The bandwidth of the device is 450 Mbps and the range is 20 km.
Additionally, it is characterised by a very favourable price to quality
ratio.

The PBE-5AC-300 device is perfect for installations that require maximum
efficiency and RF isolation. It offers high resistance and scalability. Its
innovative construction filters interference.

Work

This product is equipped with a 560 MHz Atheros MIPS 74KC processor. The
device uses 64 MB internal memory and 16 MB flash drive memory. The device
works in the 5150 – 5875 MHz band.

Innovation

The device is based on AirMax technology which has been tested millions of
times all across the world and is characterised by extraordinary efficiency
when working outside.

Antenna

The device is equipped with a 22 dBi maximum gain antenna. It uses
InnerFeed technology.

Key features
works in the 5 GHz band
450+ Mbps bandwidth
20 km range
22 dBi antenna gain
AirMax technology
InnerFeed Technology

Installation

The installation of Ubiquiti devices is fast and effortless. The
installation process is easy and intuitive.

Use

Comparison


PBE-5AC-300

PBE-5AC-400

PBE-5AC-500

PBE-5AC-620

FREQUENCY 5 GHz 5 GHz 5 GHz 5 GHz
THROUGHPUT 450+ Mbps 450+ Mbps 450+ Mbps 450+ Mbps
RANGE 20+ km 25+ km 25+ km 30+ km
GAIN 22 dBi 25 dBi 27 dBi 29 dBi
DISH REFLECTOR 300 mm 400 mm 500 mm 620 mmN
NETWORKING INTERFACE (1) 10/100/1000 Ethernet Port (1) 10/100/1000 Ethernet
Port (1) 10/100/1000 Ethernet Port (1) 10/100/1000 Ethernet Port

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
