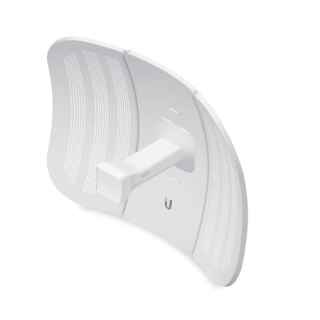

  Ubiquiti Networks LBE-M5-23 bridge/repeater 1×1 SISO 100 Mbit/s White

  Innovative
  Ubiquiti LiteBeam M5 series LBE-M5-23 radio system
  The Ubiquiti LBE-M5-23 radio system works in the 5 GHz band. It is
  distinguished by its use of the 802.11n MIMO 1×1 standard and a bandwidth of
  up to 100 Mbps.

  Ubiquiti LBE-M5-23 works in two modes – Router or Bridge. The device works
  in the 5150 5875 MHz band. The use of the 802.11a/n MIMO 1×1 standard allows
  it to reach 100 Mbps TP/IP real bandwidth.

  Parameters

  LBE-M5-23 includes an integrated radio module with 25 dBm power level. The
  maximum gain of the antenna is 23 dBi. The AMG-PRO uses an Atheros MIPS 74KC
  560 MHz processor.







  InnerFeed

  The LBE-M5-23 device uses InnerFeed technology, which allows for the
  integration of the antenna emitter with the radio module and this in turn
  leads to better efficiency.





  AirMax

  The product is AirMax protocol compliant, which eliminates the problem of
  hidden stations and allows for transmission without interference.





  Installation

  The installation process is easy and effortless. The antenna uses a
  spherical handle which allows for easy configuration and setting up of the
  appropriate angle.





  Key features
  5 GHz band
  power gain 23 dBi
  size 362 x 267 x 184 mm
  802.11n MIMO 1×1 standard
  up to 100 Mbps bandwidth



  Comparison












  LBE-M5-23











  LBE-5AC-23





  LBE-5AC-16-120

  Frequency Band 5 GHz 5 GHz 5 GHz
  Antenna Gain 23 dBi 23 dBi 16 dBi
  Antenna Type 1×1 SISO 2×2 MIMO 2×2 MIMO
  Polarization Vertical Vertical + Horizontal Vertical + Horizontal
  airMAX ac

  Gigabit Ethernet

  Point-to-Point Functionality

  Point-to-MultiPoint Functionality



  Manufacturer’s content

   Read more in the manufacturer’s documentation

   Read the manual



  Specifications
