12 Core Multi Mode Fiber Optic Cable – Kenya

Related products

•

  1X4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter – Kenya

  KSh5,000.00

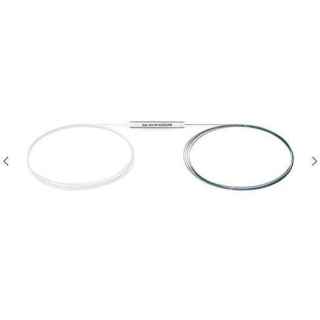

  1X4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter



  The 1×4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical splitter designed to efficiently distribute a single input signal to four output fibers. Its bare PLC (Planar Lightwave Circuit) design is housed within a durable steel tube, providing robust protection and mechanical strength.

  This splitter operates across a wavelength range of 1260 nm to 1650 nm, making it suitable for both 1310 nm and 1550 nm applications. It features a typical insertion loss of ?7.5 dB and a high return loss of ?50 dB, ensuring minimal signal degradation and reflection. With a uniformity of ?1.2 dB and a polarization dependent loss (PDL) of ?0.2 dB, the device delivers consistent and reliable signal distribution.

  The splitter uses 250µm tight-buffered singlemode fibers, offering flexibility and protection. It is designed to withstand extreme temperatures from -40°C to +85°C, making it suitable for a wide range of environmental conditions.

  The compact steel tube design allows for easy installation in splice trays or enclosures, and it includes features for clear port labeling and maintenance. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×4 Bare PLC Steel Tube Splitter is a dependable and efficient choice for high-speed and high-density fiber optic applications, including FTTH, PON, and CATV networks.



  Add to cart

  Quick View
•

  1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors – Kenya

  KSh29,000.00

  1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors?

  1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors from the leading dealer in Nairobi Kenya, buy online 1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors and have it delivered at your doorstep.

  ?

  Geehes PLC splitters feature low insertion loss, good channel-to-channel uniformity and low PDL over the 1260 to 1650 nm wavelength range. For maximum network robustness and minimum maintenance requirements, these splitters are designed to operate over a wide temperature range suitable for outside plant installation.

  Service operators can extend service to customers taking advantage of passive optical networks requiring anywhere from 1 x 2 to 1 x 64 splits. Features:

  ?Single fiber, SC/LC/ST/FC-based connector
  ?In-line connection available
  ?Operating temperature: -40? to 85?C
  ?Cable Diameter Range: 1.5mm, 2.0mm, 3.0mm,2.0*3.0mm

  Application:

  ?FTTx systems
  ?PON networks
  ?CATV links
  ?Optical signal distribution
  ?Broadband, CATV, telecom, data centers, LAN, WAN, medical, military and wireless
  ?Compliance

  ? Specification: ?

  FIber Optical?PLC Splitter?
  Parameter 1?4 1?8 1?16 1?32 1?64 2?4 2?8 2?16 2?32
  Operating Wavelength(nm) 1260~1650
  Port Wavelength Range (nm) 1310 ?20,1490 ?10 and 1550 ?20
  Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
  Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
  PDL @ 1310/1550 nm (dB) ?0.3
  Return Loss@ 1310/1551 nm (dB) ?-55
  Input Power (mW) 250max
  Operating Temperature (?) -40~+85?
  Storage Temperature (?) -40~+85?
  Fiber Type Corning G657A1

  Add to cart

  Quick View
•

  20km Transceiver 1000 Base-LX SPF Mini GBC Module – Kenya

  KSh30,000.00

  20km Transceiver 1000 Base-LX SPF Mini GBC Module

  The 20km Transceiver 1000Base-LX SFP Mini GBIC Module is a high-performance optical transceiver designed for long-distance Gigabit Ethernet connectivity. It supports data rates up to 1 Gbps and operates over singlemode fiber with a maximum reach of 20 kilometers.

  Featuring a 1310 nm wavelength, this module is equipped with LC duplex connectors and provides reliable, high-speed data transmission with a link budget of 11 dB and a typical receiver sensitivity of -20 dBm. It operates within a temperature range of 0°C to +70°C and is compliant with IEEE 802.3z standards.

  The module is hot-swappable, allowing for easy replacement without powering down, and includes built-in digital diagnostic monitoring (DDM) for real-time performance tracking. It adheres to safety and environmental standards, including RoHS compliance, making it a versatile and dependable solution for high-speed networking applications.

  Technical Details
  MANUFACTURER H!Fiber.com
  PART NUMBER ASF13-24-10-D-Net(2pcs)
  ITEM WEIGHT 2.22 ounces
  PACKAGE DIMENSIONS 6.69 x 4.92 x 0.75 inches
  ITEM MODEL NUMBER ASF13-24-10-D-Net(2pcs)
  IS DISCONTINUED BY MANUFACTURER No
  SIZE 1000Base-LX: 10km
  COLOR For Netgear
  ITEM PACKAGE QUANTITY 1
  BATTERIES INCLUDED? No
  BATTERIES REQUIRED? No
  Compatible for Netgear AGM732F and other open equipments with 1G SFP port. 2-Pack
  1000Base-LX Gigabit Ethernet, 1.25 Gbps, 1310nm wavelength ,10km reach, Singlemode,Dual LC connector.
  Hot-Pluggable SFP Transceiver Module, PLUG and PLAY, with Advanced DDM Function to monitor real-time parameter and state on fiber links.
  100% Each transceiver is individually done performance test and compatibility test in our Test center before packing.
  Enjoy 30-day free-returned and 3-year warranty service

  Add to cart

  Quick View
•

  12 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF – Kenya

  KSh13,000.00

  12 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF?

  ?

  The 12 Port 1U LC/UPC Duplex Single-Mode Adapter Rack Mount Optical Distribution Frame (ODF) is a compact and efficient solution for managing fiber optic connections in telecommunications, data centers, enterprise networks, and local area networks (LANs). This ODF is specifically designed to accommodate 12 duplex LC/UPC ports, providing a high-density solution for single-mode fiber applications.

  The ODF features LC connectors with UPC (Ultra Physical Contact) polish, ensuring minimal insertion loss and excellent return loss. With a typical insertion loss of ? 0.2 dB and return loss of ? 50 dB, this device offers superior signal integrity and performance for single-mode fiber networks operating at wavelengths of 1310 nm and 1550 nm. It is compatible with G.652 and G.657 single-mode fiber types, making it suitable for a wide range of optical network infrastructures.

  Constructed from durable, corrosion-resistant materials, the ODF includes a sturdy metal or high-strength plastic frame. The high-precision ceramic sleeves within the adapters ensure accurate fiber alignment and secure connections, while the overall design is rated for over 1000 mating cycles, offering long-lasting reliability.

  The 1U rack-mountable design allows the ODF to fit seamlessly into standard 19-inch racks or cabinets, occupying minimal space while maximizing fiber management efficiency. The front panel is clearly labeled for easy port identification, and integrated cable management features ensure organized routing, reducing cable clutter and simplifying maintenance.

  Designed to withstand various environmental conditions, the ODF supports an operating temperature range from -20?C to 70?C and can handle up to 95% relative humidity. It complies with industry standards such as TIA/EIA-568 and IEC, and meets RoHS and UL safety certifications, ensuring it is both safe and reliable for critical network applications.

  The 12 Port 1U LC/UPC Duplex Single-Mode Adapter Rack Mount ODF is ideal for network environments that require efficient, high-density fiber management. Its compact design, robust construction, and superior performance make it an excellent choice for telecommunications, data centers, and enterprise networks, providing a dependable platform for modern fiber network infrastructures. Whether used for new installations or upgrades, this ODF delivers exceptional performance and ease of use, meeting the demands of high-speed, high-reliability optical networks.

  ?

  Add to cart

  Quick View
•

  1/2 Galvanised Large D Shackle – Kenya

  KSh750.00

  1/2 Galvanised Large D Shackle?

  The 1/2? Galvanised Large D Shackle is a robust and reliable fastening device designed for a wide range of heavy-duty applications. Constructed from high-quality galvanized steel, this shackle is treated with a hot-dipped galvanised finish, ensuring exceptional corrosion resistance and durability even in harsh environments.

  With a size of 1/2 inch (12.7 mm), the large D shape of the shackle facilitates efficient load distribution, making it ideal for securing and lifting heavy loads. The design typically features a screw pin or bolt-type pin, ensuring a secure connection and easy attachment to various rigging equipment, such as ropes, chains, and hooks.

  The shackle?s dimensions, generally around 2-3 inches in width and 4-6 inches in height, allow for versatility in applications, whether in marine, construction, or industrial settings. It is engineered to meet relevant industry standards for strength and safety, providing peace of mind when handling significant loads.

  The 1/2? Galvanised Large D Shackle is essential for those seeking a dependable and sturdy solution for towing, lifting, or securing applications, making it a vital tool in any rigging or safety equipment arsenal.

  Material Alloy Steel
  Size 1/2? ? 2.1/2?
  Brand Multiple Brands
  Usage/Application Industrial, Erection, Construction, Lifting, etc.
  Loading Capacity 1 Ton ? 55 Tons
  Color Galvanized with colored pin
  Type Screw Pin, Nut Bolt
  Surface Finishing Galvanized
  Finish Galvanized
  Grade Grade 80

  Add to cart
