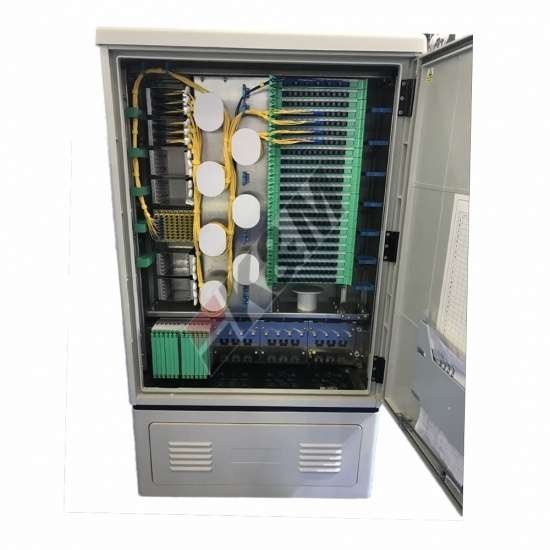

144 cores Pedestal mounted fiber distribution cabinet SC/APC connectors – Kenya
KSh120,000.00
144 cores Pedestal mounted fiber distribution cabinet SC/APC connectors?
The 144-Core Pedestal Mounted Fiber Distribution Cabinet is a robust and secure solution designed for outdoor fiber optic distribution. It features 144 SC/APC connectors, providing high-density fiber management for telecom networks and FTTH deployments. Constructed from corrosion-resistant materials, the cabinet offers IP55-rated protection against environmental elements. It includes a comprehensive cable management system, multiple entry points, and a multi-point locking mechanism for enhanced security. This cabinet is ideal for managing and distributing large-scale fiber connections in demanding outdoor environments.
Specifications
Specifications 144 core
Photoelectric performance Insertion loss ? 0.2dB; additional loss ? 0.2B
Working wavelength 850nm1310nm1550nm
Insertion and durability life > 1000 times
Application Telecom / Mobile / China Unicom / Radio and TV
144 cores Pedestal mounted fiber distribution cabinet SC/APC connectors?
The 144-Core Pedestal Mounted Fiber Distribution Cabinet is a robust and secure solution designed for outdoor fiber optic distribution. It features 144 SC/APC connectors, providing high-density fiber management for telecom networks and FTTH deployments. Constructed from corrosion-resistant materials, the cabinet offers IP55-rated protection against environmental elements. It includes a comprehensive cable management system, multiple entry points, and a multi-point locking mechanism for enhanced security. This cabinet is ideal for managing and distributing large-scale fiber connections in demanding outdoor environments.
Specifications
Specifications 144 core
Photoelectric performance Insertion loss ? 0.2dB; additional loss ? 0.2B
Working wavelength 850nm1310nm1550nm
Insertion and durability life > 1000 times
Application Telecom / Mobile / China Unicom / Radio and TV
Related products
-
Add to cart12 Core Underground Armoured Singlemode Fibre Optic Cable , G652D?
The 12 Core Underground Armoured Singlemode Fibre Optic Cable is specifically engineered for robust, high-capacity communication in challenging environments. Designed for underground installations, this cable features a durable armoured construction that offers exceptional protection against physical damage, moisture, and environmental hazards, making it ideal for direct burial and outdoor applications.
With 12 singlemode fibers, this cable supports long-distance data transmission, typically achieving distances of up to 40 km or more, depending on network conditions. It operates effectively at standard wavelengths of 1310 nm and 1550 nm, ensuring minimal signal loss and high-speed performance.
The outer jacket is crafted from low smoke zero halogen (LSZH) or PVC material, providing additional safety and reduced toxicity in case of fire. The armouring, made from steel or aluminum tape, adds a layer of mechanical strength, allowing the cable to withstand harsh conditions and potential impacts.
Designed with a minimum bending radius of 20 times its outer diameter, this cable maintains flexibility during installation and ensures reliable performance in various setups. It operates within a temperature range of -40?C to +70?C, ensuring functionality in diverse climates.
The 12 Core Underground Armoured Singlemode Fibre Optic Cable is compliant with international standards (such as IEC and TIA/EIA), reflecting its quality and reliability. This cable is an essential component for telecommunications networks, data centers, and other applications requiring secure, high-speed connectivity in underground settings, providing a future-proof solution for modern communication needs.
?
? -
Add to cart12 Core Singlemode Un-Armoured Fibre Optic Cable?
The 12 Core Singlemode Un-Armoured Fibre Optic Cable is engineered for high-performance data transmission across long distances, making it an ideal choice for telecommunications, data centers, and backbone networks. This cable features 12 singlemode fibers with a core diameter of 9 ?m and a cladding diameter of 125 ?m, ensuring optimal light transmission for both 1310 nm and 1550 nm wavelengths.
The un-armoured design allows for greater flexibility and lighter weight, making installation easier in various environments. The outer diameter typically measures around 3.0 mm and is available with either a PVC or LSZH (Low Smoke Zero Halogen) sheath, offering a balance between durability and fire safety.
With a maximum attenuation of ? 0.35 dB/km at 1310 nm and ? 0.20 dB/km at 1550 nm, this cable maintains high signal integrity even over extensive distances. Its minimum bend radius of 10 x the outer diameter during installation and 20 x the outer diameter in use ensures that the cable can withstand tight bends without compromising performance.
Operating efficiently in temperatures ranging from -20?C to +70?C, this cable is designed for resilience and reliability in various conditions. The fibers are color-coded in accordance with industry standards, with yellow indicating singlemode fibers, facilitating easy identification during installation.
Overall, the 12 Core Singlemode Un-Armoured Fibre Optic Cable combines advanced technology and practical design, making it an excellent choice for organizations looking to enhance their network infrastructure with reliable, high-speed connectivity.
?
-
1/2 Galvanised Large D Shackle – Kenya
KSh750.00Add to cart1/2 Galvanised Large D Shackle?
The 1/2? Galvanised Large D Shackle is a robust and reliable fastening device designed for a wide range of heavy-duty applications. Constructed from high-quality galvanized steel, this shackle is treated with a hot-dipped galvanised finish, ensuring exceptional corrosion resistance and durability even in harsh environments.
With a size of 1/2 inch (12.7 mm), the large D shape of the shackle facilitates efficient load distribution, making it ideal for securing and lifting heavy loads. The design typically features a screw pin or bolt-type pin, ensuring a secure connection and easy attachment to various rigging equipment, such as ropes, chains, and hooks.
The shackle?s dimensions, generally around 2-3 inches in width and 4-6 inches in height, allow for versatility in applications, whether in marine, construction, or industrial settings. It is engineered to meet relevant industry standards for strength and safety, providing peace of mind when handling significant loads.
The 1/2? Galvanised Large D Shackle is essential for those seeking a dependable and sturdy solution for towing, lifting, or securing applications, making it a vital tool in any rigging or safety equipment arsenal.
Material Alloy Steel
Size 1/2? ? 2.1/2?
Brand Multiple Brands
Usage/Application Industrial, Erection, Construction, Lifting, etc.
Loading Capacity 1 Ton ? 55 Tons
Color Galvanized with colored pin
Type Screw Pin, Nut Bolt
Surface Finishing Galvanized
Finish Galvanized
Grade Grade 80 -
Add to cart1X4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical splitter designed to efficiently distribute a single input signal to four output fibers. Its bare PLC (Planar Lightwave Circuit) design is housed within a durable steel tube, providing robust protection and mechanical strength.
This splitter operates across a wavelength range of 1260 nm to 1650 nm, making it suitable for both 1310 nm and 1550 nm applications. It features a typical insertion loss of ?7.5 dB and a high return loss of ?50 dB, ensuring minimal signal degradation and reflection. With a uniformity of ?1.2 dB and a polarization dependent loss (PDL) of ?0.2 dB, the device delivers consistent and reliable signal distribution.
The splitter uses 250µm tight-buffered singlemode fibers, offering flexibility and protection. It is designed to withstand extreme temperatures from -40°C to +85°C, making it suitable for a wide range of environmental conditions.
The compact steel tube design allows for easy installation in splice trays or enclosures, and it includes features for clear port labeling and maintenance. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×4 Bare PLC Steel Tube Splitter is a dependable and efficient choice for high-speed and high-density fiber optic applications, including FTTH, PON, and CATV networks.
-
Add to cart1 X 8 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors?
1 X 8 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors from the leading fiber dealer in Nairobi kenya, buy online 1 X 8 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors and have it delivered.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
?
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It?s mainly used for various connection and distribution boxes or network cabinets.
?
Product Specification
?
Package Style Mini Module Configuration Type 1?8
Fiber Type Singlemode G.657A1 Connector Type SC/APC
Input/Output Fiber Diameter 900?m Input/Output Fiber Length 1.5m
Insertion Loss ?10.6dB Return Loss ?50dB
Loss Uniformity ?0.8dB Directivity ?55dB
Polarization Dependent Loss ?0.2dB Temperature Dependent Loss ?0.5dB
Wavelength Dependent Loss ?0.3dB Operating Bandwidth 1260~1650nm
Split Ratio 50/50 Steel Tube Dimensions (HxWxD) 0.16?x2.36?x0.28? (4x60x7mm)
Operating Temperature -20~70?C Storage Temperature -40~85?C
