1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter – Kenya
KSh7,100.00

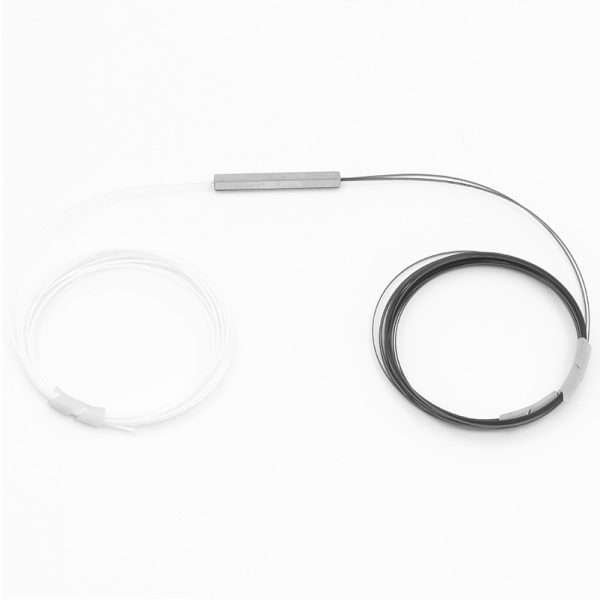

1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter from the leading fiber dealer in Nairobi Kenya, buy 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter and have it delivered.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation.
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Name of the test
Condition
Duration
Temperature- Humidity aging
85°C and 85% RH
7 days
Vibration
10 – 55Hz, 1.52mm double amplitude, in three axes
1 hour
Component Impact
Test Impact of 500g (mass ? 0.125kg), 1ms , half sine pulse
2 impacts
Temperature Cycling Test
-40 – 70°C, Ramp rate: 1°C /min, Dwell time > 15min
10 cycles
Temperature- Humidity cycling
-40 – 85°C , between 10°C and 23°C – 85% RH, at 85°C – 20%RH, between °C and 85°C – maintain a linear change in RH, below 10°C – uncontrolled RH
14 days
Water Immersion
43 ± 2°C , PH 5.5 ± 0.5
7 days
Fiber Side Pull test
0.23 kg load, 90° angle , 2 directions
5 seconds
Fiber Side Pull test
0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter from the leading fiber dealer in Nairobi Kenya, buy 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter and have it delivered.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation.
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Name of the test
Condition
Duration
Temperature- Humidity aging
85°C and 85% RH
7 days
Vibration
10 – 55Hz, 1.52mm double amplitude, in three axes
1 hour
Component Impact
Test Impact of 500g (mass ? 0.125kg), 1ms , half sine pulse
2 impacts
Temperature Cycling Test
-40 – 70°C, Ramp rate: 1°C /min, Dwell time > 15min
10 cycles
Temperature- Humidity cycling
-40 – 85°C , between 10°C and 23°C – 85% RH, at 85°C – 20%RH, between °C and 85°C – maintain a linear change in RH, below 10°C – uncontrolled RH
14 days
Water Immersion
43 ± 2°C , PH 5.5 ± 0.5
7 days
Fiber Side Pull test
0.23 kg load, 90° angle , 2 directions
5 seconds
Fiber Side Pull test
0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs
