2.5mm PVC insualted Flat Twin and Earth Wire Cable – Kenya
KSh15,000.00

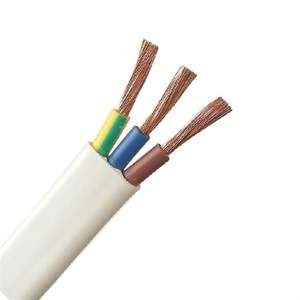

2.5mm PVC insualted Flat Twin and Earth Wire Cable
2.5mm PVC insualted Flat Twin and Earth Wire Cable is used to carry electricity into or within buildings and structures, and can be employed for a variety of commercial and residential applications –
including electrical wiring systems, power generators, motors and electrical lights. ACWU and NMWU, in particular, are well-suited for direct earth burial and wiring in hazardous locations.
Key Specifications/Special Features:
Model Number:RV Type:Insulated Application: Household Wiring Rated Voltage: 450/750 V Color:Red/Yellow/Blue/Green/Black… Conductor Material:100% oxygen-free Copper Conductor Type: Solid Insulation Material:PVC Packaging Details:100 feet in coil or other as customized s
Constructions 1. Conductor: Flexible copper conductor,comform to IEC 60228 class 5 2. Insulation:PVC/D 3.Sheath:PVC type ST5
Applications Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards International:IEC 60227 China:GB/T 5023-2008 Other standards such as BS,DIN and ICEA upon request
2.5mm twin flat electrical cable also known as FTE (flat twin and earth) the live and neutral conductors are individually insulated, and the Circuit Protective Conductor (CPC), or earth, is bare.
Cable size: 2.5mm
Insulation: PVC
Conductor: 2 x solid plain copper cores
Sheath: Grey PVC (Polyvinyl-Chloride)
Voltage rating: 300/500 volts
Maximum Current rating: 18 amps
Temperature rating: 0°C to +70°C
Overall diameter: 4.55 x 8.80mm
Bending radius: 3 x overall diameter
RoHS approved
BASIC and BS6004 approved
100-meter coil
2.5mm PVC insualted Flat Twin and Earth Wire Cable
2.5mm PVC insualted Flat Twin and Earth Wire Cable is used to carry electricity into or within buildings and structures, and can be employed for a variety of commercial and residential applications –
including electrical wiring systems, power generators, motors and electrical lights. ACWU and NMWU, in particular, are well-suited for direct earth burial and wiring in hazardous locations.
Key Specifications/Special Features:
Model Number:RV Type:Insulated Application: Household Wiring Rated Voltage: 450/750 V Color:Red/Yellow/Blue/Green/Black… Conductor Material:100% oxygen-free Copper Conductor Type: Solid Insulation Material:PVC Packaging Details:100 feet in coil or other as customized s
Constructions 1. Conductor: Flexible copper conductor,comform to IEC 60228 class 5 2. Insulation:PVC/D 3.Sheath:PVC type ST5
Applications Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards International:IEC 60227 China:GB/T 5023-2008 Other standards such as BS,DIN and ICEA upon request
2.5mm twin flat electrical cable also known as FTE (flat twin and earth) the live and neutral conductors are individually insulated, and the Circuit Protective Conductor (CPC), or earth, is bare.
Cable size: 2.5mm
Insulation: PVC
Conductor: 2 x solid plain copper cores
Sheath: Grey PVC (Polyvinyl-Chloride)
Voltage rating: 300/500 volts
Maximum Current rating: 18 amps
Temperature rating: 0°C to +70°C
Overall diameter: 4.55 x 8.80mm
Bending radius: 3 x overall diameter
RoHS approved
BASIC and BS6004 approved
100-meter coil
