20km Transceiver 1000 Base-LX SPF Mini GBC Module – Kenya
KSh30,000.00

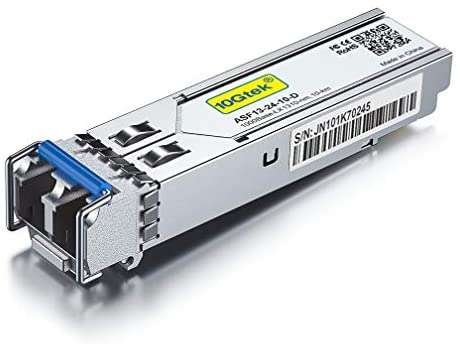

20km Transceiver 1000 Base-LX SPF Mini GBC Module
The 20km Transceiver 1000Base-LX SFP Mini GBIC Module is a high-performance optical transceiver designed for long-distance Gigabit Ethernet connectivity. It supports data rates up to 1 Gbps and operates over singlemode fiber with a maximum reach of 20 kilometers.
Featuring a 1310 nm wavelength, this module is equipped with LC duplex connectors and provides reliable, high-speed data transmission with a link budget of 11 dB and a typical receiver sensitivity of -20 dBm. It operates within a temperature range of 0°C to +70°C and is compliant with IEEE 802.3z standards.
The module is hot-swappable, allowing for easy replacement without powering down, and includes built-in digital diagnostic monitoring (DDM) for real-time performance tracking. It adheres to safety and environmental standards, including RoHS compliance, making it a versatile and dependable solution for high-speed networking applications.
Technical Details
MANUFACTURER H!Fiber.com
PART NUMBER ASF13-24-10-D-Net(2pcs)
ITEM WEIGHT 2.22 ounces
PACKAGE DIMENSIONS 6.69 x 4.92 x 0.75 inches
ITEM MODEL NUMBER ASF13-24-10-D-Net(2pcs)
IS DISCONTINUED BY MANUFACTURER No
SIZE 1000Base-LX: 10km
COLOR For Netgear
ITEM PACKAGE QUANTITY 1
BATTERIES INCLUDED? No
BATTERIES REQUIRED? No
Compatible for Netgear AGM732F and other open equipments with 1G SFP port. 2-Pack
1000Base-LX Gigabit Ethernet, 1.25 Gbps, 1310nm wavelength ,10km reach, Singlemode,Dual LC connector.
Hot-Pluggable SFP Transceiver Module, PLUG and PLAY, with Advanced DDM Function to monitor real-time parameter and state on fiber links.
100% Each transceiver is individually done performance test and compatibility test in our Test center before packing.
Enjoy 30-day free-returned and 3-year warranty service
20km Transceiver 1000 Base-LX SPF Mini GBC Module
The 20km Transceiver 1000Base-LX SFP Mini GBIC Module is a high-performance optical transceiver designed for long-distance Gigabit Ethernet connectivity. It supports data rates up to 1 Gbps and operates over singlemode fiber with a maximum reach of 20 kilometers.
Featuring a 1310 nm wavelength, this module is equipped with LC duplex connectors and provides reliable, high-speed data transmission with a link budget of 11 dB and a typical receiver sensitivity of -20 dBm. It operates within a temperature range of 0°C to +70°C and is compliant with IEEE 802.3z standards.
The module is hot-swappable, allowing for easy replacement without powering down, and includes built-in digital diagnostic monitoring (DDM) for real-time performance tracking. It adheres to safety and environmental standards, including RoHS compliance, making it a versatile and dependable solution for high-speed networking applications.
Technical Details
MANUFACTURER H!Fiber.com
PART NUMBER ASF13-24-10-D-Net(2pcs)
ITEM WEIGHT 2.22 ounces
PACKAGE DIMENSIONS 6.69 x 4.92 x 0.75 inches
ITEM MODEL NUMBER ASF13-24-10-D-Net(2pcs)
IS DISCONTINUED BY MANUFACTURER No
SIZE 1000Base-LX: 10km
COLOR For Netgear
ITEM PACKAGE QUANTITY 1
BATTERIES INCLUDED? No
BATTERIES REQUIRED? No
Compatible for Netgear AGM732F and other open equipments with 1G SFP port. 2-Pack
1000Base-LX Gigabit Ethernet, 1.25 Gbps, 1310nm wavelength ,10km reach, Singlemode,Dual LC connector.
Hot-Pluggable SFP Transceiver Module, PLUG and PLAY, with Advanced DDM Function to monitor real-time parameter and state on fiber links.
100% Each transceiver is individually done performance test and compatibility test in our Test center before packing.
Enjoy 30-day free-returned and 3-year warranty service
Related products
-

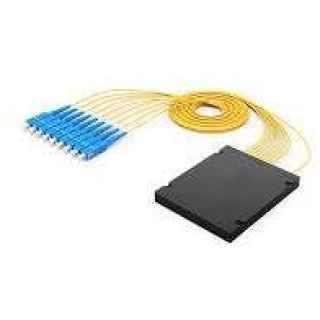

Add to cart2 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors
The 2 x 32 PVC 0.9mm Fiber Jacket SC/PC Rack Mount Splitter is a high-performance optical distribution device designed for efficient signal splitting in fiber optic networks. This splitter accommodates two input fibers and distributes optical signals evenly across 32 output fibers, making it ideal for applications such as FTTH, PON, and CATV networks.
Housed in a compact 19-inch rack-mountable enclosure, this splitter features SC/PC connectors with a physical contact polish to minimize insertion loss and back reflections, ensuring reliable signal performance. The splitter is constructed with singlemode fibers that comply with ITU-T G.657A and G.652D standards and includes a durable PVC 0.9mm fiber jacket for added protection and flexibility.
With a typical insertion loss of ?16.5 dB, high return loss of ?50 dB, and excellent uniformity, the splitter offers consistent performance across a wide wavelength range of 1260 nm to 1650 nm. Designed for versatility, it is suitable for installation in various environmental conditions, operating within temperatures from -40°C to +85°C, and is compliant with industry standards, including Telcordia GR-1209, GR-1221, and RoHS.
The device also features integrated cable management and clear labeling for easy installation and maintenance, making it a practical and reliable choice for modern high-density fiber optic networks.
Specifications:
Parameter Value
Product Type 1×2/2×2 1×4/2×4 1×8/2×8 1×16/2×16 1×32/2×32 1×64/2×64 1×128/2×128
Wavelength(nm) 1260~1650
I.L(dB) Typ. 3.6/4.2 7.1/7.2 10.4/10.6 13.6/13.8 17.2/17.5 20.1/20.5 25.0/25.2
Max. 4.3/4.5 7.4/7.6 10.7/11.0 14.0/14.8 18.0/18.0 21.5/21.5 25.8/25.8
Uniformity(Max.)(dB) 0.5/0.8 0.8/1.0 1.0/1.2 1.4/1.5 1.6/1.8 2.0/2.5 2.6/3.0
PDL(Max.)(dB) 0.2/0.2 0.3/0.3 0.3/0.3 0.3/0.3 0.3/03 0.5/0.5 0.8/1.0
TDL(Max.)(dB) 0.5
R.L(dB) ?55(APC)/?55(UPC)
Directivity(dB) ?55
Operating & Storage Temperature -40~+85
-

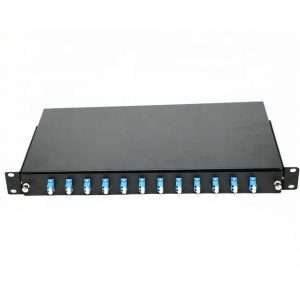

Add to cart12 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF?
?
The 12 Port 1U LC/UPC Duplex Multimode Adapter Rack Mount Optical Distribution Frame (ODF) is an efficient and robust solution for managing high-density fiber optic connections in network installations. Designed for standard 19-inch racks, this 1U unit offers 12 LC duplex ports, providing seamless integration into existing network infrastructure.
Constructed from durable cold-rolled steel with a sleek powder-coated finish, the ODF ensures long-lasting performance and protection. The front panel features 12 LC duplex adapters, each with an Ultra Physical Contact (UPC) finish, guaranteeing low insertion loss and high return loss, making it ideal for high-performance multimode fiber networks.
Compatible with OM1, OM2, OM3, OM4, and OM5 fiber types, this ODF supports both 50/125 ?m and 62.5/125 ?m multimode fibers. The integrated rear cable management system ensures organized and secure routing of fibers, minimizing stress and potential damage.
Installation is straightforward, with front access simplifying maintenance and configuration changes. The ODF includes a rear cable management tray or brackets, mounting screws, cable ties, and dust caps to facilitate a neat and efficient setup.
Compliant with industry standards such as TIA/EIA, IEC, and RoHS, and adhering to UL 94V-0 flammability ratings, this ODF meets all necessary safety and environmental regulations. Its compact design allows for effective space utilization while optional lockable doors enhance security.
Whether for data centers, telecommunications closets, or enterprise networks, the 12 Port 1U LC/UPC Duplex MM Adapter Rack Mount ODF provides a reliable, high-density solution for optical connection management, ensuring excellent performance and ease of use in various environments.
?
-
Add to cart1X64 blockless 900µm fiber LC/PC PLC Fiber splitter connectors
The 1×64 Blockless 900µm Fiber LC/PC PLC Fiber Splitter is a high-performance optical splitter designed for distributing a single input signal to 64 output fibers. Featuring a compact, blockless design, this splitter is ideal for space-constrained installations and provides efficient signal distribution in fiber optic networks.
It uses LC/PC connectors with a physical contact polish to ensure minimal insertion loss and back reflection. The splitter supports a wide wavelength range of 1260 nm to 1650 nm and offers a typical insertion loss of ?20.5 dB, with high return loss of ?50 dB and uniformity of ?2.0 dB.
The device is equipped with 900µm tight-buffered fibers, providing enhanced flexibility and durability. Designed to meet industry standards such as Telcordia GR-1209, GR-1221, and RoHS, it ensures reliable and consistent performance across various network applications including FTTH, PON, and CATV. The splitter is easy to install and maintain, making it a practical solution for high-density fiber optic deployments.
Product Name: Fiber Optic PLC Splitter 1×16 Blockless With LC APC 9 / 125?m Connector Configuration Type: 1×16
Package Style: Mini Module Connector Type: LC/APC
Fiber Type: Singlemode Return Loss: ?60dB
Operating/Storage Temperature: -40~85°C Directivity: ?55dB
High Light:
rack mount plc splitter,
plc splitter module
-

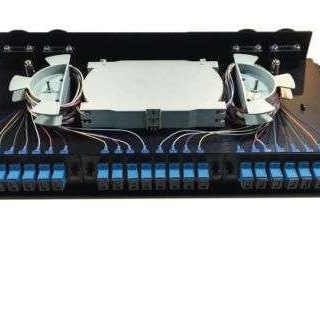

Add to cart12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF?
12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF and have it delivered.
fiber patch panel can applied in branch connection of optical cable termination;19?standard structure,sliding design,rack mounted;Suitable for FC,SC,ST,LC Adapters.
?GPZ/SP-CL fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network.?
12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF? is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
? Features:?
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
The box has a pothook, which is convenient to install and dismantle
The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
The box is of unique structure, reasonable layout, and has adequate room for operation
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
The indoor type is of excellent seal performance, which could prevent water from entering effectively
Can be installed with LC adapter
Up to 12 cores splice capacity
Sliding design? Packing Details:
Type Size(mm) W*D*H Max Capacity Outer carton dimension Outer carton weight
GPZ/SP-CL-1U 430*300*1U 48 485*420*350/5pcs 27.5/5pcs
GPZ/SP-CL-2U 430*300*2U 96 500*355*550/4pcs 26.3/4pcs
GPZ/SP-CL-4U 430*300*4U 192 500*350*540/1pcs 18.9/1pc
GPZ/SP-CLA-1U 430*250*1U 48 485*305*425/4pcs 20/4pcs
GPZ/SP-CLB 450*320*445 96 485*420*350/4pcs 20/4pcs -

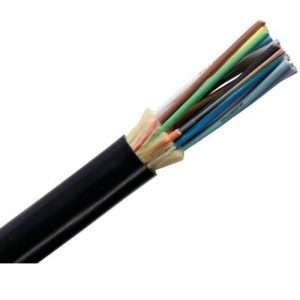

Add to cart12 Core Multi Mode Fiber Optic Cable?
