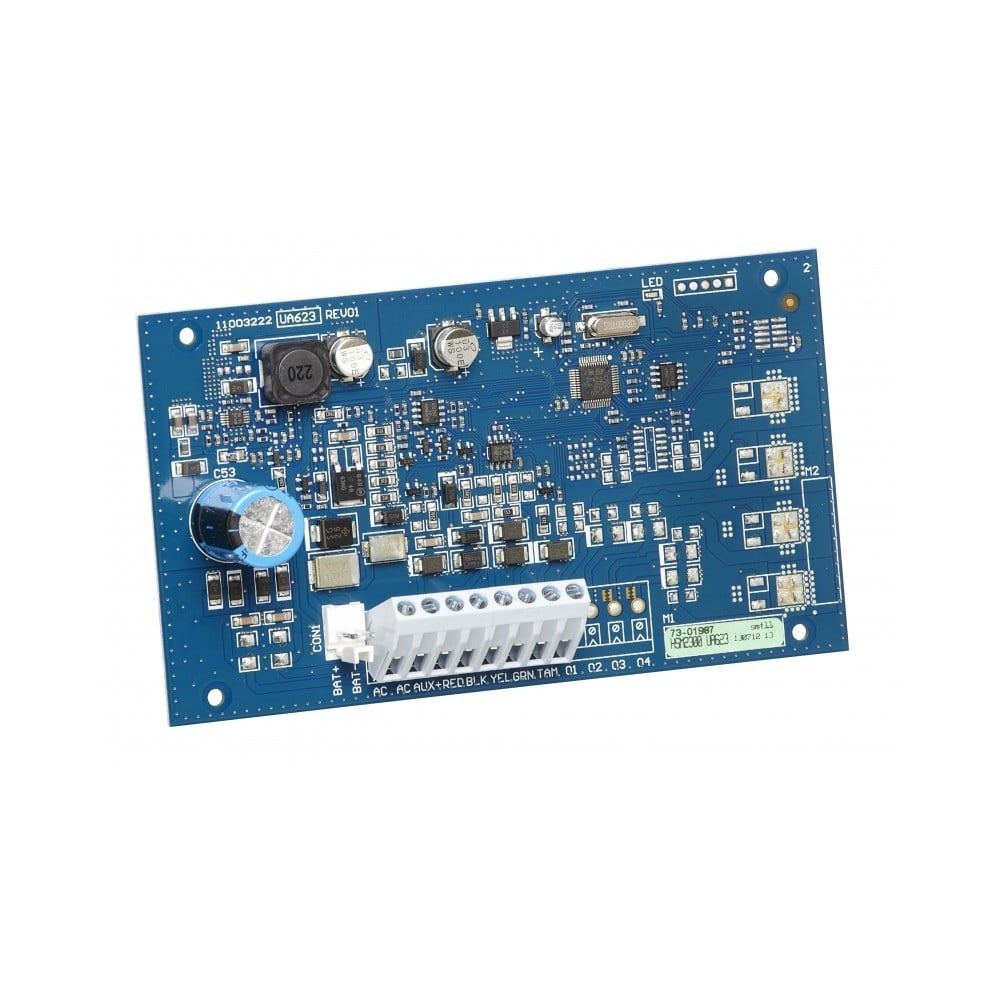

BCS HSM2300 Power supply module with 4 programmable 1A outputs

Name: BCS HSM2300 Power supply module with 4 programmable 1A outputs | +254720548999
SKU: DS-2CD2343G2-LI2U(2.8mm)
Price: 21502.75 KES
Availability: InStock

KSh21,502.75

>
Product Name: Power Supply Module with 4 Programmable Outputs 1A

>
Manufacturer: BCS

>
Output Current: 1A

>
Input Voltage: 220-240VAC, 50Hz

>
Power Consumption: 40mA

>
Compatible with: NEO Series Control Panels

>
Aux Output Load Capacity: 1A

>
Battery Backup: DC 12V, replaceable every 3-5 years

>
Dimensions: 145 x 83 mm

>
Operating Temperature Range: -10°C to 55°C

The BCS
HSM2300 is an advanced power supply module designed to enhance the
functionality of security systems. With four programmable outputs rated at
1A, this module is perfectly suited for use with Power Neo series control
panels. It operates efficiently with an input voltage of 220-240VAC at 50Hz
and draws a minimal current of 40mA, ensuring a reliable power supply for all
compatible devices.

One of the standout features of the BCS HSM2300 is its integrated backup
power solution. It comes with a maintenance-free 12V DC battery that can last
between 3-5 years and has a capacity ranging from 7-17Ah. This battery offers
a backup duration of up to 24 hours, with the ability to charge to 80%
capacity within 24 hours, all while protecting against complete battery
depletion. This feature makes it an ideal choice for critical applications in
security systems where downtime is not an option.

Furthermore, the BCS HSM2300 module operates effectively across a
temperature range of -10°C to 55°C, ensuring stable performance in various
environmental conditions. Its compact dimensions of 145 x 83 mm make it easy
to install without occupying excessive space in your setup. Invest in the BCS
HSM2300 for a reliable and efficient power supply solution tailored to your
security needs.
