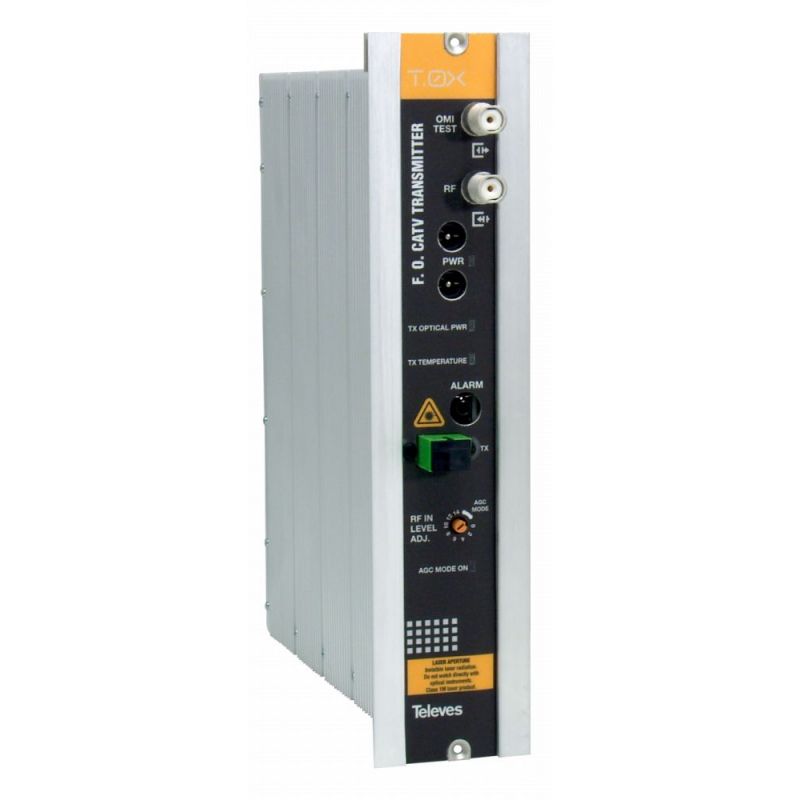

CATV optical transmitter with CAG without C.R 1550nm Po…
KSh584,672.00
Produces an optical signal in the 1550 nm-window modulated by the RF input signal (47 MHz – 1100 MHz). The optical output power is 10 dBm.?
Equipped with automatic gain control (AGC).?
Furthermore, it is stable in terms of temperature, thanks to the laser temperature control circuit.?
Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks.
Highlights
MATV-compatible: up to 1100 MHz bandwidth
OMI (Optical Modulation Index) test point
Optical power and laser temperature LED indicators
MQW-DFB refrigerated laser
AGC with operation LED indicator
Wide range of input power values
Optical power drop alarm
Features
Very low equivalent noise conversion
Easy to install and use
High energy efficiency
SC/APC optical connectors, and F-type connectors for RF
Specifications
Optical transmitter
RF parameters RF frequency range MHz 47-1100
RF input level dB?V/dBmV 90 / 30
RF manual gain adjust dB 0 … 14 (steps 2 dB)
CAG control dB 15
Flatness dB ?1
CSO (CENELEC 42) note 1 dB 60
CTB (CENELEC 42) note 1 dB 60
Optical Laser type MQW-DFB cooled
Wavelength nm 1550 ?20
Optical power dBm 10
General RF connectors tipo F female
Optical connectors SC/APC
Supply voltage Vdc 12-24
Power consumption mA 360-220
Operation temperature
?
?C
?F
-5 ? +45
23 … 113
Related products
-
Add to cartOptical mini-receiver for small MDU (Multi Dwelling Unit); receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz) with amplification. Equipped with OLC technology. Perfect for RF Overlay, FTTB, and FTTH applications.?Local powering
-
Add to cartCWDM WideBand satellite and terrestrial optical transmitter specifically designed for indoor installation. Intended for two-satellite transmission to more than 64 users, this device receives a satellite signal from an RF Wideband LNB and terrestrial band, and distributes it over a fiber output in the 1570nm window with 9dBm optical power.
-
Add to cartProfessional fusion splicer equipped with six alignment engines to work on the different axes, capable of performing an optical fibre fusion in 9 seconds. Furthermore, fusion is automatically started with the cover closure. It also allows the fusion of pre-configured connectors, thus connectorizing the fibre.
-
Optical Receiver Module Quattro Overlight ?SC/APC?…
KSh87,608.00Add to cartOptimized electronic and optical engineering, at the service of TV. This Wideband and terrestrial satellite optical receiver is responsible for capturing an optical TV signal (1100…1650nm), processing it and recovering the original terrestrial and satellite TV signals, offering 4 outputs in Quattro mode: each connector provides a of the four TVSAT combinations of polarity and band.
-

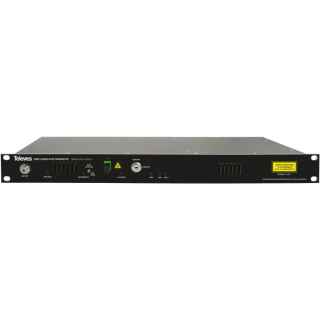

Add to cartProduces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 6 dBm.
