Dahua 8 Channel NVR, DHI-NVR4108HS-8P-4KS2/L 8 Channel 4K H.265 Lite NVR – Kenya
KSh15,000.00
Dahua 8 Channel NVR, DHI-NVR4108HS-8P-4KS2/L 8 Channel 4K H.265 Lite NVR
System
Main Processor
Industrial-grade embedded processor
OS
Embedded Linux
Operation Interface
Web/operating in local GUI
Perimeter Protection by Camera
Performance
8 channels
AI Search
Search for pictures by channel, time and event type
Face Detection by Camera
Performance
4 channels
Face Attributes
6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search
Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance
8 channels
AI Search
Search by target classification (human, vehicle)
Video
Access Channel
8
Network Bandwidth
Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution
8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability
8 × 1080p@30 fps
Video Output
1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display
1, 4, 8, 9 views
Third-party Camera Access
ONVIF; RTSP
Compression
Video
Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio
PCM/G711A/G711U/G726/AAC
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access
Android; iOS
Interoperability
ONVIF(profile T/S/G); CGI; SDK
Browser
Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback
Up to 8 channels for playback
Record Mode
Manual record; alarm recording; SMD recording; smart recording
Storage
Local HDD; network
Backup
USB storage device
Playback Function
1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
Storage
Disk Group
Yes
Alarm
General Alarm
Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm
Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm
Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage
Recording, snapshot, audio, buzzer, log, preset, and email
External Port
Audio Input
1 × RCA input
Audio Output
1 × RCA output
HDD
1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB
2 (1 × front USB2.0; 1 × back USB2.0)
HDMI
1 (supports up to 4K resolution output)
VGA
1
Network
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE
8
General Parameter
Power Supply
DC48 V/53 V, 2A/1.8 A
Power Consumption
< 10 W (HDD not included, idling) Total output power of PoE is 72W, the maximum output power of a single port is 25.5W Net Weight 0.92 kg (2.03 lb) Gross Weight 2.07 kg (4.56 lb) Product Dimensions 260 mm × 232.5 mm × 50.3 mm (10.24? × 9.15? × 1.98?) (W × L × H) Package Dimensions 117 mm × 373 mm × 307 mm (4.61? × 14.69? × 12.09?) (W × L × H) Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F) Storage Conditions 0 °C to +40 °C (32 °F to 104 °F) Operating Humidity 10?~93? Storage Humidity 30%~85% Operating Altitude 3000 m (9842.52 ft) Installation Desktop mounted Certifications CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B
Dahua 8 Channel NVR, DHI-NVR4108HS-8P-4KS2/L 8 Channel 4K H.265 Lite NVR
System
Main Processor
Industrial-grade embedded processor
OS
Embedded Linux
Operation Interface
Web/operating in local GUI
Perimeter Protection by Camera
Performance
8 channels
AI Search
Search for pictures by channel, time and event type
Face Detection by Camera
Performance
4 channels
Face Attributes
6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search
Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance
8 channels
AI Search
Search by target classification (human, vehicle)
Video
Access Channel
8
Network Bandwidth
Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution
8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability
8 × 1080p@30 fps
Video Output
1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display
1, 4, 8, 9 views
Third-party Camera Access
ONVIF; RTSP
Compression
Video
Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio
PCM/G711A/G711U/G726/AAC
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access
Android; iOS
Interoperability
ONVIF(profile T/S/G); CGI; SDK
Browser
Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback
Up to 8 channels for playback
Record Mode
Manual record; alarm recording; SMD recording; smart recording
Storage
Local HDD; network
Backup
USB storage device
Playback Function
1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
Storage
Disk Group
Yes
Alarm
General Alarm
Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm
Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm
Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage
Recording, snapshot, audio, buzzer, log, preset, and email
External Port
Audio Input
1 × RCA input
Audio Output
1 × RCA output
HDD
1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB
2 (1 × front USB2.0; 1 × back USB2.0)
HDMI
1 (supports up to 4K resolution output)
VGA
1
Network
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE
8
General Parameter
Power Supply
DC48 V/53 V, 2A/1.8 A
Power Consumption
< 10 W (HDD not included, idling) Total output power of PoE is 72W, the maximum output power of a single port is 25.5W Net Weight 0.92 kg (2.03 lb) Gross Weight 2.07 kg (4.56 lb) Product Dimensions 260 mm × 232.5 mm × 50.3 mm (10.24? × 9.15? × 1.98?) (W × L × H) Package Dimensions 117 mm × 373 mm × 307 mm (4.61? × 14.69? × 12.09?) (W × L × H) Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F) Storage Conditions 0 °C to +40 °C (32 °F to 104 °F) Operating Humidity 10?~93? Storage Humidity 30%~85% Operating Altitude 3000 m (9842.52 ft) Installation Desktop mounted Certifications CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B
Related products
-
Add to cartDahua 2MP WDR IR Bullet Network Camera, DH-IPC-HFW2231T-ZAS-S2
Camera
Image Sensor
1/2.8” CMOS
Effective Pixels
1920 (H) × 1080 (V)
ROM
128 MB
RAM
128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.002 Lux@F1.6
IR Distance
50 m (164.04 ft) (IR)
IR On/Off Control
Auto/Manual
IR LEDs Number
4 (IR LED)
Pan/Tilt/Rotation Range
Horizonal: 0°–360°
Vertical: 0°–90°
Rotation: 0°–360°Lens
Lens Type
Motorized vari-focal
Mount Type
?14
Focal Length
2.7 mm–13.5 mm
Max. Aperture
F1.6
Field of View
Horizonal: 109°–28°
Vertical: 57°–16°
Diagonal: 131°–33°Optical Zoom
5 times
Iris Type
Fixed
Close Focus Distance
0.8m–0.8m (2.62 ft–2.62 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
44.1 m
(144.69 ft)
17.6 m
(57.74 ft)
8.8 m
(28.87 ft)
4.4 m
(14.44 ft)
T
151.7 m
(497.70 ft)
60.6 m
(198.82 ft)
30.3 m
(99.41 ft)
15.1 m
(49.65 ft)
Smart Event
General IVS Analytics
Intrusion; tripwire
Video
Video Compression
H.265; H.264; H.264B; MJPEG
Smart Codec
H.264: Yes
H.265: YesVideo Frame Rate
50Hz
Main stream (1920 × 1080@25 fps); sub stream (704 × 576@25 fps)
60Hz
Main stream (1920 × 1080@30 fps); sub stream (704 × 480@30 fps)Stream Capability
Main stream; sub stream
Resolution
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 KbpsDay/Night
ICR switch
BLC
Yes
WDR
120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
Disable/Enable (4 areas, rectangle)
Region of Interest(RoI)
Yes (4 areas)
Smart IR
Yes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)
Mirror
Yes
Privacy Masking
4 areas
Audio
Audio Compression
G.711a; G.711Mu; G.726; AAC
Network
Network
RJ-45 (10/100 Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Interoperability
ONVIF (Profile S/Profile G); CGI; Milestone; Genetec
User/Host
20
Edge Storage
Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS
Browser
IE
Google
FirefoxManagement Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL: UL60950-1 CANPort
Audio Input
1 (RCA port)
Audio Output
1 (RCA port)
Alarm Input
1 channel In: 5mA 5VDC
Alarm Output
1 channel Out: 300mA 12VDC
Power
Power Supply
12V DC/POE
Power Consumption
Basic power consumption: 2W (12V DC), 2.7W (POE)
Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 8.2W (12V DC), 9.6W (POE)Environment
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Operating Humidity
?95%
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Storage Humidity
?95%
Protection
IP67
Structure
Casing
Metal
Dimensions
?244.1 mm × 90.4 mm (?9.61? × 3.26?)
Net Weight
0.9 kg (1.98 lb)
Gross Weight
1.15 kg (2.54 lb)
-

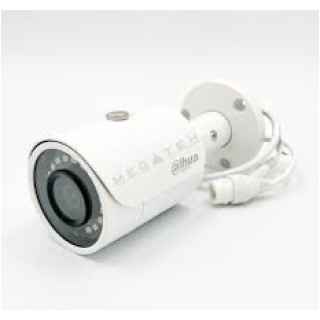

Add to cartDahua HFW1230S-S5 Bullet IP Camera 2MP 2.8mm fixed lens
The Dahua HFW1230S-S5 Bullet IP Camera is a high-performance 2MP surveillance camera designed for effective outdoor monitoring with its robust IP67 weatherproof rating. Equipped with a 2.8mm fixed lens, this camera captures a wide 106° horizontal field of view, providing clear, expansive footage at a resolution of 1920 x 1080. Its 1/2.7” 2MP progressive CMOS sensor and maximum F1.85 aperture allow for detailed and bright image capture, even in challenging lighting conditions.
The camera’s intelligent infrared (IR) technology enables clear night vision up to 30 meters, automatically adjusting the IR intensity for balanced lighting in low-light environments. Advanced features like Digital Wide Dynamic Range (DWDR), 2D Noise Reduction (2D NR), and Backlight Compensation (BLC) enhance image quality further by minimizing distortions and noise, ensuring crisp footage in both high-contrast and dimly lit scenes.
The HFW1230S-S5 supports H.265 and H.264 compression formats, effectively reducing storage requirements and bandwidth use while maintaining image quality. For flexibility in installation, the camera offers Power over Ethernet (PoE) functionality alongside a standard 12V DC power option. Network features include motion detection and Region of Interest (ROI) functionality, and the camera is compatible with ONVIF protocols, enabling easy integration into a variety of security systems.
Designed for durability, the camera operates reliably in extreme temperatures ranging from -30°C to +60°C and is protected by a metal housing. With its smart design, versatile features, and reliable performance, the Dahua HFW1230S-S5 Bullet IP Camera is ideal for securing a variety of outdoor locations, providing reliable and intelligent monitoring year-round.
-
Add to cartDAHUA DH-IPC-HDBW5241EP-ZE-27135-DC12AC24V 2MP IR Dome Camera
Camera
Image Sensor
1/2.8? CMOS
Max. Resolution
1920 (H) × 1080 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.002 lux@F1.5 (Color, 30 IRE)
0.0002 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)S/N Ratio
>56 dB
Illumination Distance
40 m (131.23 ft) (IR)
Illuminator On/Off Control
Auto
Illuminator Number
3 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°Lens
Lens Type
Motorized vari-focal
Lens Mount
?14
Focal Length
2.7 mm–13.5 mm
Max. Aperture
F1.5
Field of View
Horizontal: 109°–30°
Vertical: 57°–17°
Diagonal: 131°–35°Iris Control
Auto
Close Focus Distance
0.8 m (2.62 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
44.1 m (144.69 ft)
17.6 m (57.74 ft)
8.8 m
(28.87 ft)
4.4 m
(14.44 ft)
T
146.2 m (479.66 ft)
58.4 m (191.60 ft)
29.2 m (85.80 ft)
14.6 m (47.90 ft)
Smart Event
IVS
Abandoned object; missing object
Heat Map
Yes
Professional, intelligent
IVS (Perimeter Protection)
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
SMD 3.0
Less false alarm, longer detection distance
Face Detection
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People Counting
Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
AI Coding
AI H.265; AI H.264
Video Frame Rate
Main stream: 1920 × 1080@(1 fps–25/30 fps)
Sub stream: D1@(1 fps–25/30 fps)
Third stream: 1080p@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability
3 streams
Resolution
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbpsDay/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto; manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Image Stabilization
Electronic Image Stabilization (EIS)
Smart Illumination
Yes
Defog
Yes
Image Rotation
0°/90°/180°/270°
Mirror
Yes
Privacy Masking
8 areas
Audio
Audio Compression
PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input error; intensity change; people counting; face detection; voltage detection; people counting in area; stay detection; people number error detection; queue management
Network
Network Port
RJ-45 (10/100 Enhancement Base-T)
SDK and API
Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host
20 (Total bandwidth: 80 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser
IE: IE8 and later
Chrome
FirefoxManagement Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Certification
Certifications
CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07Port
Audio Input
1 channel (terminal)
Audio Output
1 channel (terminal)
Alarm Input
1 channels in: 5 mA 3 V–5 VDC
Alarm Output
1 channel out: 300 mA 12 VDC
Power
Power Supply
12 VDC (±25%)&24 VAC (±30%); PoE (802.3af); ePoE
Power Consumption
Basic: 4.6 W (12 VDC); 4.9 W (24 VAC); 4.9 W (PoE)
Max. (max. stream + intelligence + IR on + focus): 11.8 W (12 VDC); 11.5 W (24 VAC); 11.3 W (PoE)Environment
Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity
? 95%
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Protection
IP67; IK10
Structure
Casing
Metal + plastic
Product Dimensions
?159 mm × 117.9 mm (6.26? × 4.64?)
Net Weight
950 g (2.09 lb)
Gross Weight
1200 g (2.65 l
-
Dahua DH-IPC-HFW1230SP-S4, Dahua Camera – Kenya
KSh5,000.00Add to cartDahua DH-IPC-HFW1230SP-S4, Dahua Camera
Camera
Image Sensor
1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H) x1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
18
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8 mm (3.6 mm optional)
Max. Aperture
F2.0/F2.0
Angle of View
H:104°/92°,V:55°/50°
Focus Control
Fixed
Close Focus Distance
0.6m(0.9m)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
40(131ft)
16(52ft)
8(26ft)
4(13ft)
3.6 mm
53(174ft)
21(69ft)
11(36ft)
5(16ft)
PTZ
Pan/Tilt Range
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS
Tripwire, Intrusion
Video
Compression
H.265/H.264H/MJPEG(Sub Stream)
Smart Codec
Support H.265+/H.264+
Streaming Capability
2 Streams
Resolution
1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / DWDR
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image
Support
Smart IR
Support
Digital Zoom
16x
Flip
0°/90°/180°/270°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
N/A
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;
TLS
Interoperability
ONVIF Profile S&G, API
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, DMSS
Smart Phone
IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface
N/A
Audio Interface
N/A
RS485
N/A
Alarm
N/A
Electrical
Power Supply
DC12V, PoE (802.3af)(Class 0)
Power Consumption
<5.5W Environmental Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Ingress Protection IP67 Vandal Resistance N/A Construction Casing Metal+Plastic Dimensions ?70mm×164.7mm(2.76”x6.49”) Net Weight 0.38Kg(0.84lb) Gross Weight 0.44Kg(0.97lb
-

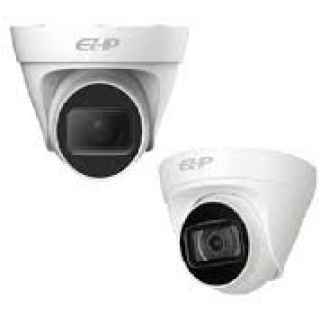

Add to cartDahua 2 MP, Dahua IP Dome Camera DH-IPC-T1B20P-L
Camera
Image Sensor
1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H) x1080(V)
RAM/ROM
64MB/16MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.09Lux/F2.0(Color,1/3s,30IRE)
0.5Lux/F2.0(Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
1
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8 mm (3.6 mm optional)
Max. Aperture
F2.0/F2.0
Angle of View
H:115°/87.5°, V:60°/47°
Focus Control
Fixed
Close Focus Distance
0.5m(1.64ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
43.5m(143ft)
17.4m(57ft)
8.7m(28.5ft)
4.3m(14ft)
3.6 mm
53.3m(175ft)
21.3m(70ft)
10.7m(35ft)
5.3m(17.4ft)
PTZ
Pan/Tilt Range
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression
H.265/H.264H/MJPEG(Sub Stream)
Smart Codec
Support H.265+/H.264+
Streaming Capability
2 Streams
Resolution
1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P (1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H265:12K~6400K
H.264:32K ~8192K
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / DWDR
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detetion
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image Stabilization (EIS)
N/A
Smart IR
Support
Digital Zoom
16x
Flip
0°/90°/180°/270°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
N/A
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;
NTP;Multicas; ICMP; IGMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users/20 Users
Edge Storage
N/A
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS,DMSS
Smart Phone
IOS, Android
Certifications
Certifications
CE: (EN 60950:2000)
FCC: FCC Part 15 Subpart B
Interface
Video Interface
N/A
Audio Interface
N/A
RS485
N/A
Alarm
N/A
Electrical
Power Supply
DC12V, PoE (802.3af)(Class 0)
Power Consumption
<4.8W Environmental Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Ingress Protection IP67 Vandal Resistance N/A Construction Casing Metal+Plastic Dimensions ?109mm×85.5mm(4.29”x3.36”) Net Weight 0.24Kg(0.53lb) Gross Weight 0.36Kg(0.79lb)
