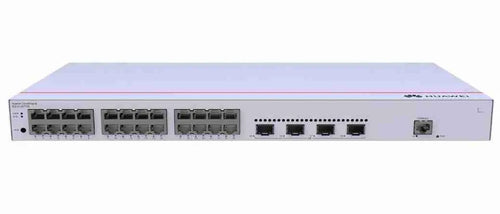

Huawei S310-24T4S 24-Port Non-PoE Network Switch – L2+ (static router), 24*10/100/1000 BASE-T Ports, 4*GE SFP Ports
KSh40,000.00
Huawei S310-24T4S 24-Port Non-PoE Network
Switch – L2+ (static router), 24*10/100/1000 BASE-T Ports, 4*GE SFP
Ports
Key Features
Twenty-four 10/100/1000BASE-T Ports
Four 1000BASE-X Ports
One Console Port
RST Button:
NOTICE: To restore the factory settings and reset the switch, hold down the
button for at least 6 seconds. To reset the switch, press the button.
Resetting the switch will cause service interruption. Exercise caution when
you press the button.
Ground Screw
Jack for AC Power Cable Locking Strap:
NOTE: The AC power cable locking strap is not delivered with the
switch.
AC Socket
Ports:
10/100/1000BASE-T Port: RJ45, a 10/100/1000BASE-T Ethernet electrical port
sends and receives service data at 10/100/1000 Mbit/s. Available components:
Ethernet cable.
1000BASE-X Port: SFP, a 1000BASE-X port can send and receive data at 100 or
1000 Mbit/s. Available components include:
FE SFP/eSFP optical modules (applicable in V200R021C00 and later
versions)
GE eSFP optical modules
GE-CWDM eSFP optical modules
GE-DWDM eSFP optical modules
GE SFP copper module
Industrial optical modules (only optical modules with 1 Gbit/s transmission
speed and transmission distances less than or equal to 10 km are
supported)
10GE SFP+ optical modules (only used for stack connection, OSXD22N00 not
supported)
10GE-CWDM SFP+ optical modules (only used for stack connection)
10GE-DWDM SFP+ optical modules (only used for stack connection)
1 m and 3 m SFP+ high-speed copper cables (only used for stack
connection)
3 m and 10 m SFP+ AOC cables (only used for stack connection)
0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration
stacking)
Console Port: RJ45, the console port is connected to a console for on-site
configuration. Available components: Console cable.
Indicators and Buttons:
The S300-24T4S has similar indicators to those on the S300-24P4S except
that the S300-24T4S does not have a PoE mode indicator. For details, see the
S300-24P4S.
Power Supply System: The switch has a built-in AC power module and does not
support pluggable power modules.
Heat Dissipation System: The switch has a built-in fan for forced air
cooling. Air flows in from the left side and front panel, and exhausts from
the right side. When working properly at a normal temperature, the device
meets the desktop-class noise requirements. However, the fan speed may be
high and the noise may be loud during device startup.
Technical Specifications:
Dimensions without Packaging (H x W x D):
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x
442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel
to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm
(1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with Packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54
in. x 21.65 in. x 14.17 in.)
Chassis Height [U]: 1 U
Weight without Packaging: 2.45 kg (5.4 lb)
Weight with Packaging: 3.34 kg (7.36 lb)
Typical Power Consumption: 32.7 W
Typical Heat Dissipation: 111.58 BTU/hour
Maximum Power Consumption: 47.6 W
Maximum Heat Dissipation: 162.42 BTU/hour
Static Power Consumption: 18.4 W
MTBF: 66.16 years
MTTR: 2 hours
