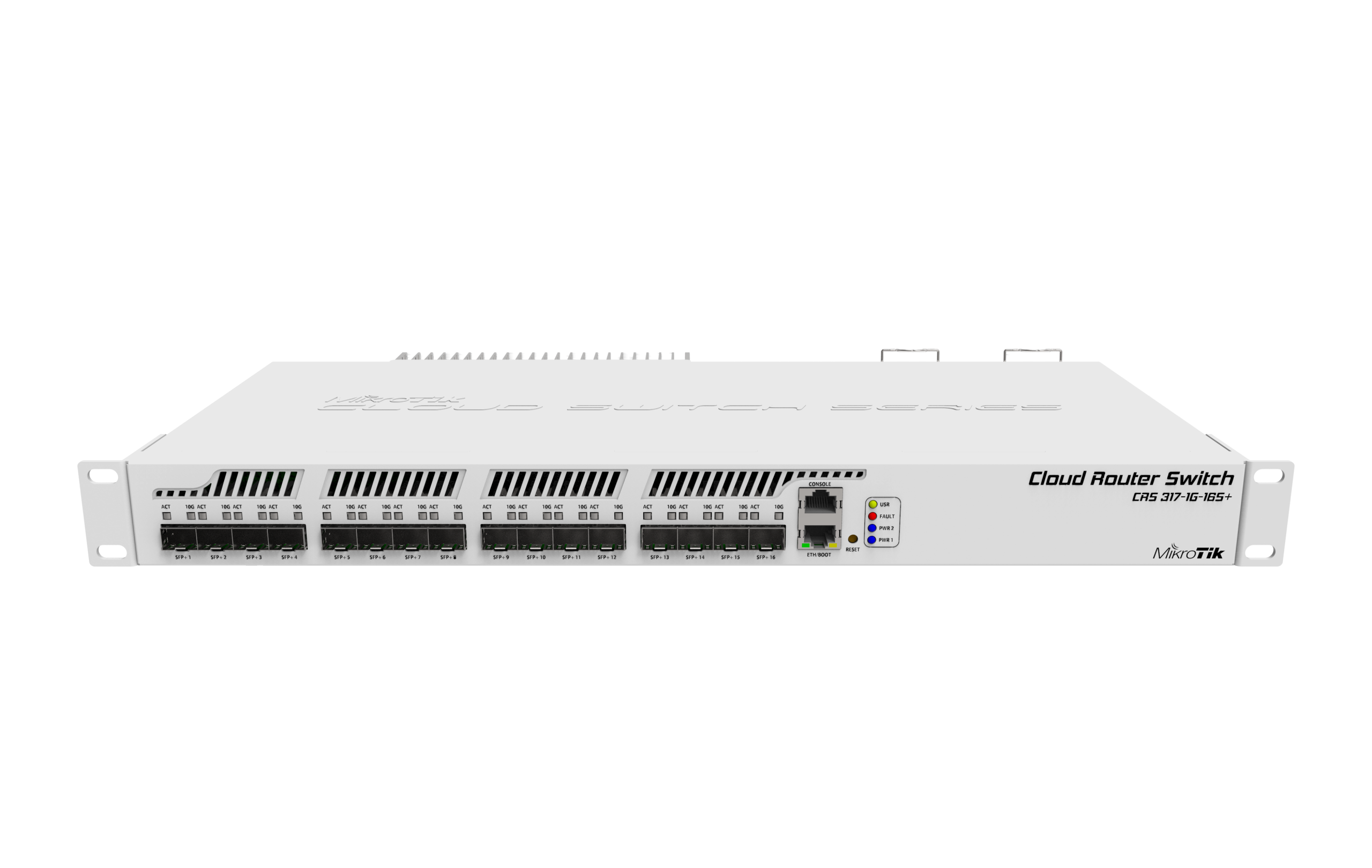

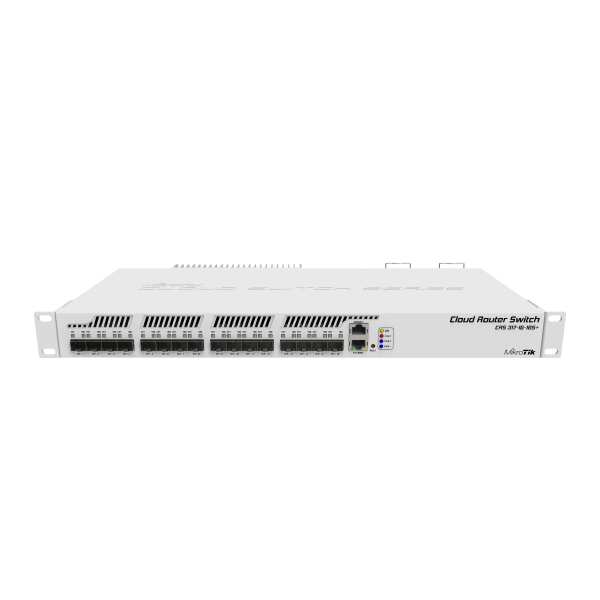

MikroTik CRS317-1G-16S+RM

Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management. CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network. The unit has dual redundant power supplies and passive cooling case – for hot environments two redundant fans will automatically keep the system cool if needed. Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code CRS317-1G-16S+RM Architecture ARM 32bit CPU 98DX8216 CPU core count 2 CPU nominal frequency 800 MHz Switch chip model 98DX8216 Dimensions 443 x 224 x 44 mm RouterOS license 6 Operating System RouterOS / SwitchOS Size of RAM 1 GB Storage size 16 MB Storage type FLASH MTBF Approximately 200’000 hours at 25C Tested ambient temperature -20°C to 60°C Suggested price $499.00 Powering Details Number of AC inputs 2 AC input range 100-240 Number of PSU slots 2 Frequency (Hz) 50-60 Max power consumption 44 W Cooling type 2 fans Ethernet Details 10/100/1000 Ethernet ports 1 Fiber Details SFP+ ports 16 Peripherals Details Serial console port RJ45 Other Details CPU temperature monitor Yes Beeper Yes Certification & Approvals Details Certification CE, EAC, ROHS Included parts Rack ears 2x IEC cords K10 screw kit The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products XS+2733LC15D $349 S+AO0005 $49 S-55DLC80D $39 XS+DA0003 $39 S-31DLC20D $29.00 XQ+BC0003-XS+ $79 XS+DA0001 $29 S-RJ01 $29.00 S+85DLC03D $59.00 S+RJ10 $65 S-85DLC05D $22.00 S-3553LC20D $79.00 S-4554LC80D $89
