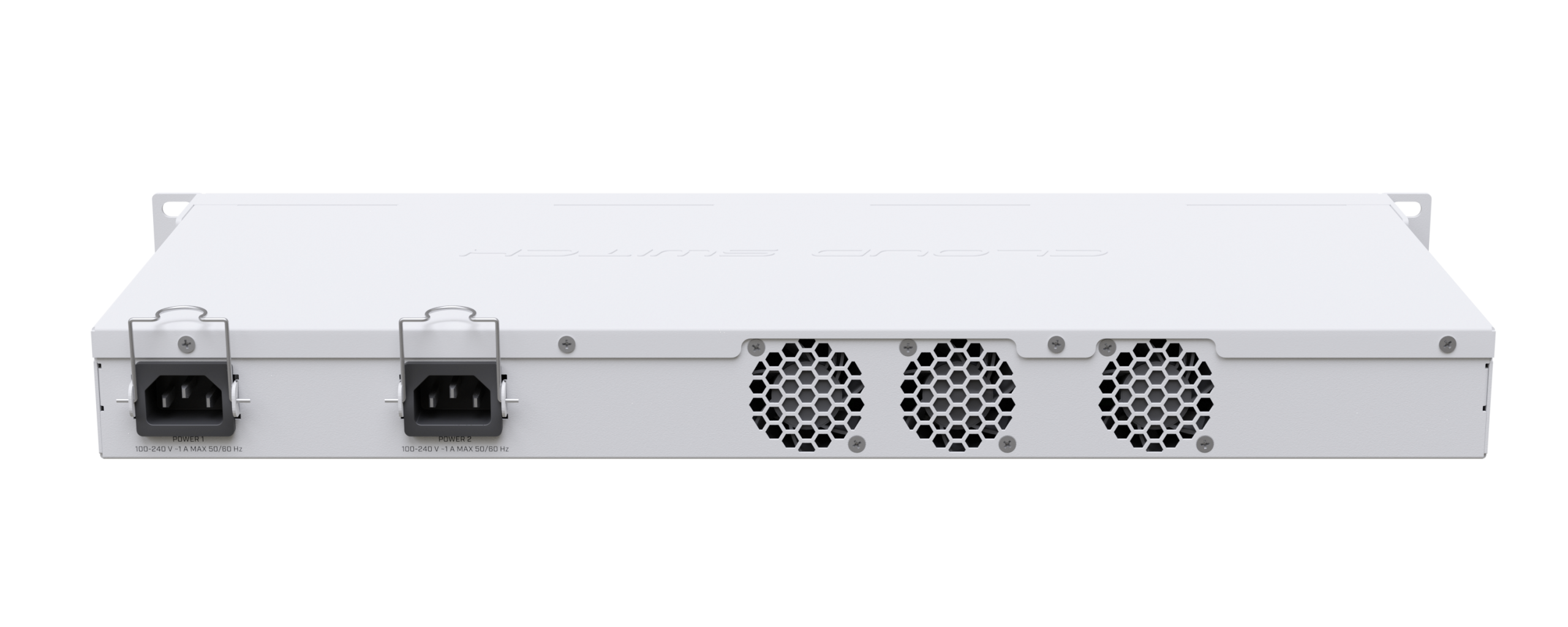

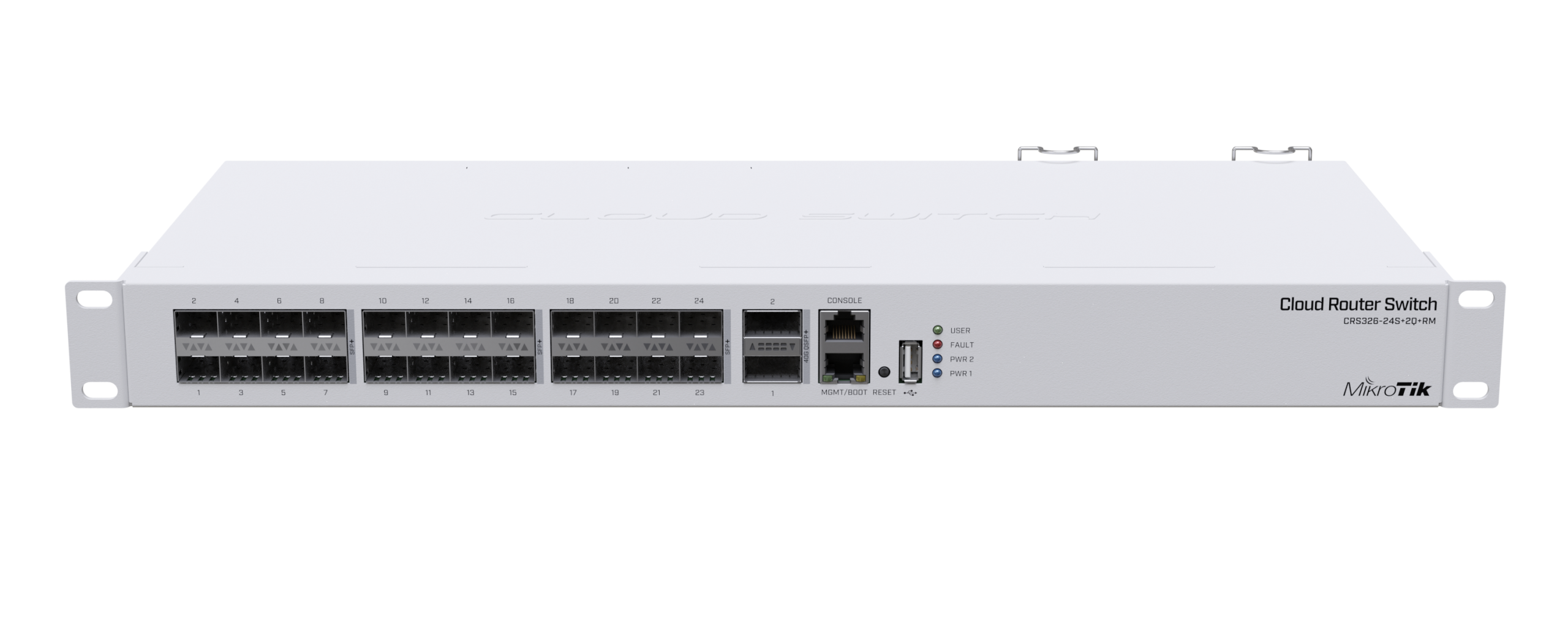

MikroTik CRS326-24S+2Q+RM

Our fastest switch for the most demanding setups

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection. Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets. CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful! You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS  Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code CRS326-24S+2Q+RM Architecture MIPSBE CPU QCA9531 CPU core count 1 CPU nominal frequency 650 MHz Switch chip model 98DX8332 Dimensions 443 x 200 x 44 mm RouterOS license 5 Operating System RouterOS v7 / SwitchOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 200’000 hours at 25C Tested ambient temperature -20°C to 60°C Suggested price $599.00 Powering Details Number of AC inputs 2 AC input range 100-240 Number of PSU slots 2 Frequency (Hz) 50-60 Max power consumption 69 W Max power consumption without attachments 42 W Cooling type 3 fans Ethernet Details 10/100 Ethernet ports 1 Fiber Details SFP+ ports 24 Number of 40G QSFP+ ports 2 Peripherals Details Serial console port RJ45 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Certification & Approvals Details Certification CE, EAC, ROHS IP IP20 Included parts Screw and feet kit (K10) 2x IEC cords Rack ears The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products XS+2733LC15D $349 S+AO0005 $49 S-55DLC80D $39 XS+DA0003 $39 XQ+DA0003 $59 XQ+DA0001 $39 S-31DLC20D $29.00 XQ+BC0003-XS+ $79 XS+DA0001 $29 S-RJ01 $29.00 XQ+85MP01D $89 UP1302C-12 $59 S+85DLC03D $59.00 S+RJ10 $65 S-85DLC05D $22.00 S-3553LC20D $79.00 S-4554LC80D $89
