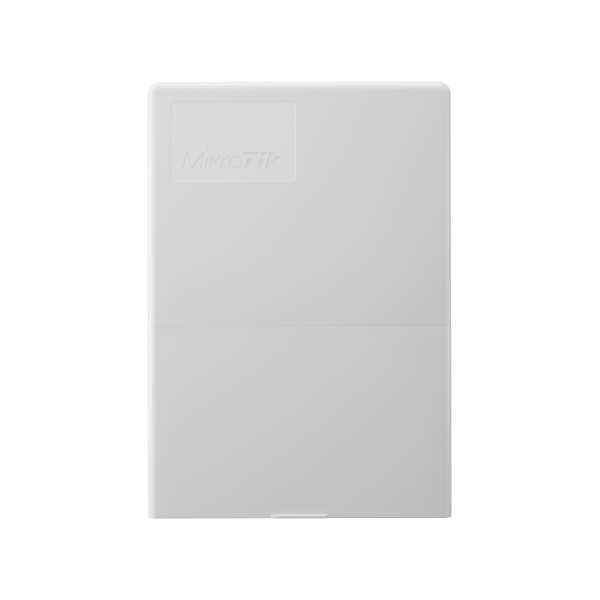

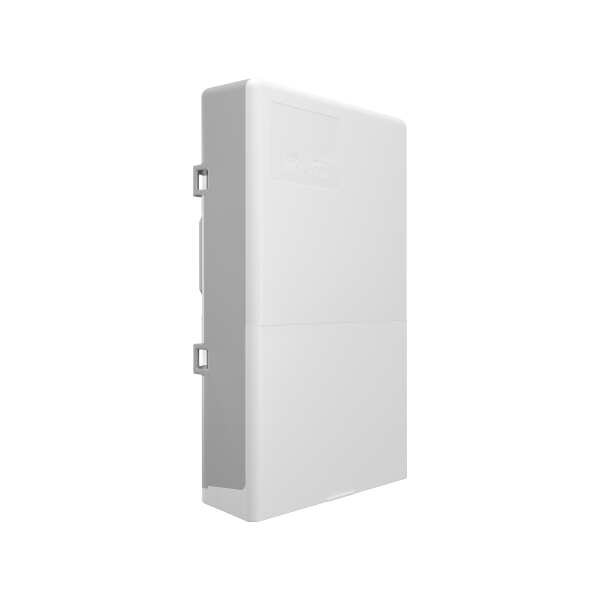

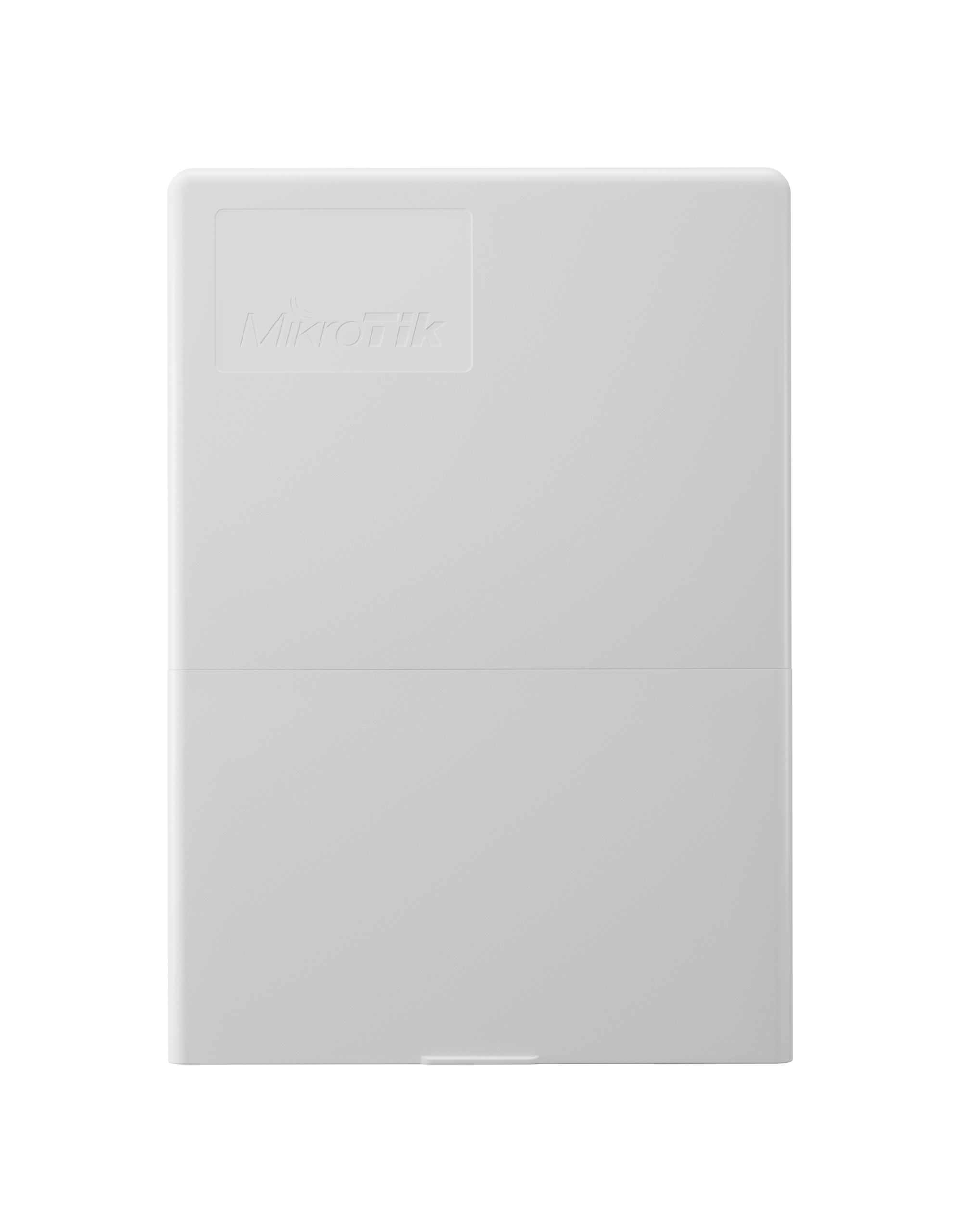

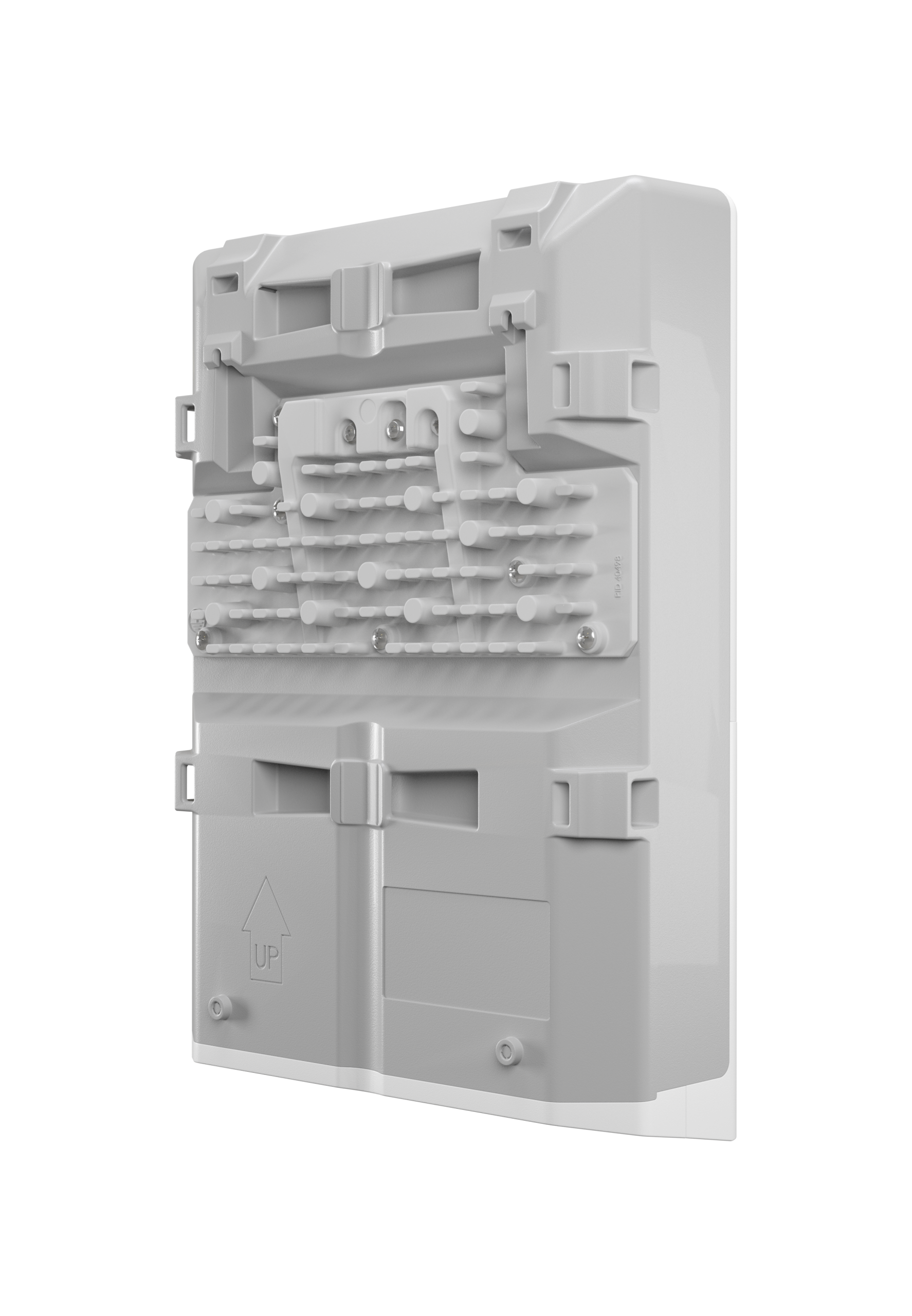

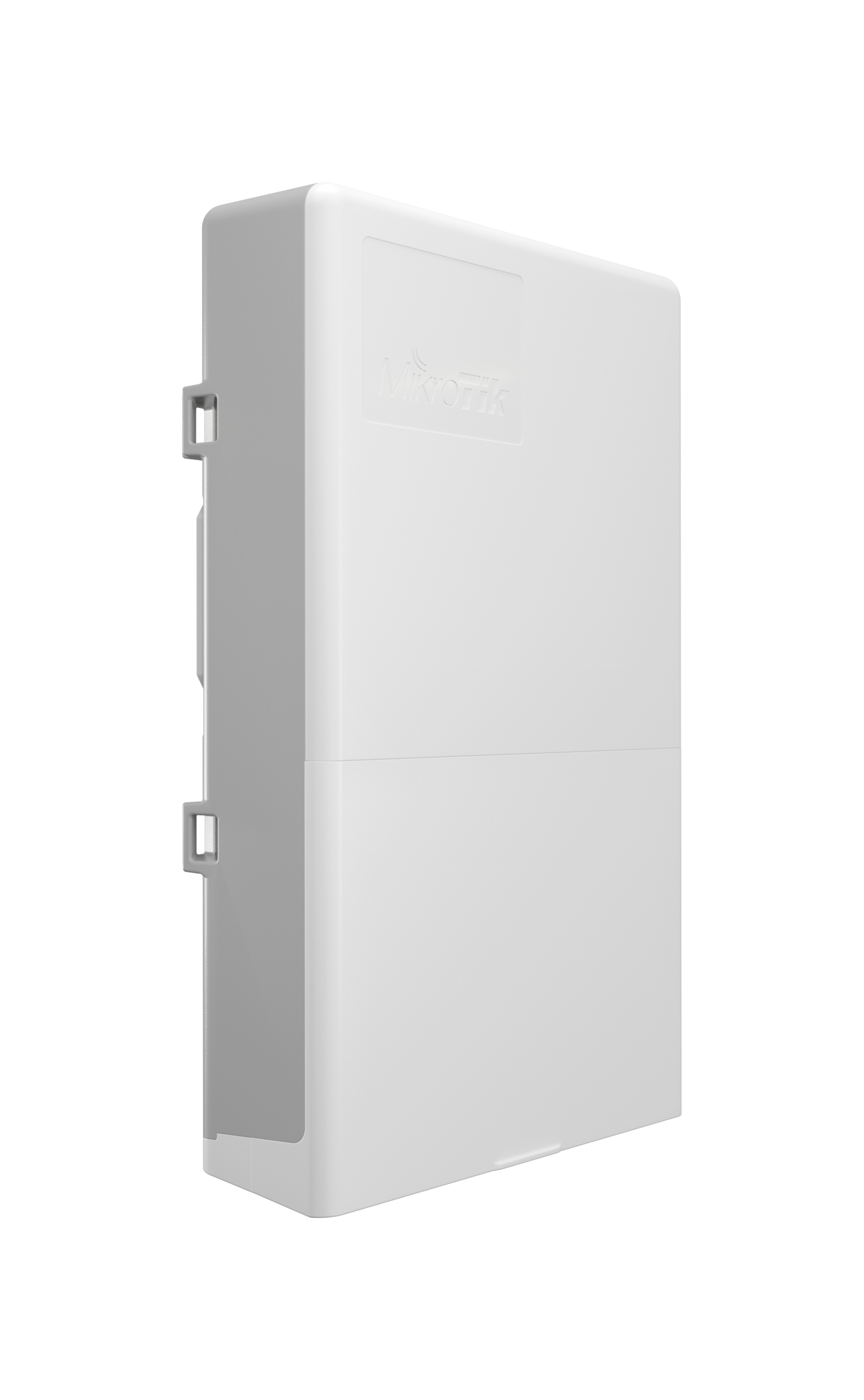

MikroTik netPower 15FR

An outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments. You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit. There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up! netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps. The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.  Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code CRS318-1Fi-15Fr-2S-OUT Architecture ARM 32bit CPU 98DX224S CPU core count 1 CPU nominal frequency 800 MHz Switch chip model 98DX224S Dimensions 304 x 212 x 71 mm RouterOS license 5 Operating System RouterOS / SwitchOS Size of RAM 256 MB Storage size 16 MB Storage type FLASH MTBF Approximately 200’000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $169.00 Powering Details Number of DC inputs 16 (PoE-IN, DC jack) DC jack input Voltage 18-57 V Max power consumption 29 W Max power consumption without attachments 10 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 18-57 V (recommended 36-57V) PoE-out Details PoE-out ports Ether15 PoE out Passive PoE Max out per port output (input 18-30 V) 0.75 A Max out per port output (input 30-57 V) 0.5 A Max total out (A) 0.75 A Ethernet Details 10/100 Ethernet ports 16 Fiber Details SFP ports 2 Other Details CPU temperature monitor Yes Voltage Monitor Yes Certification & Approvals Details Certification CE, EAC, ROHS IP IP54 Included parts Hose clamp 2 K-66 fastening set DC to Terminal block adapter The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products XS+2733LC15D $349 GPEN21 $40 S+AO0005 $49 MT48-480095-11DG $12 S-55DLC80D $39 XS+DA0003 $39 GPEN11 $14 S-31DLC20D $29.00 XS+DA0001 $29 S-RJ01 $29.00 S+85DLC03D $59.00 GPeR $29 48V2A96W $39 S-85DLC05D $22.00 S-3553LC20D $79.00 S-4554LC80D $89 24HPOW $18.00 48POW $18.00 MT48-570080-11DG $12 QME $10 GPeR IP67 Case $7
