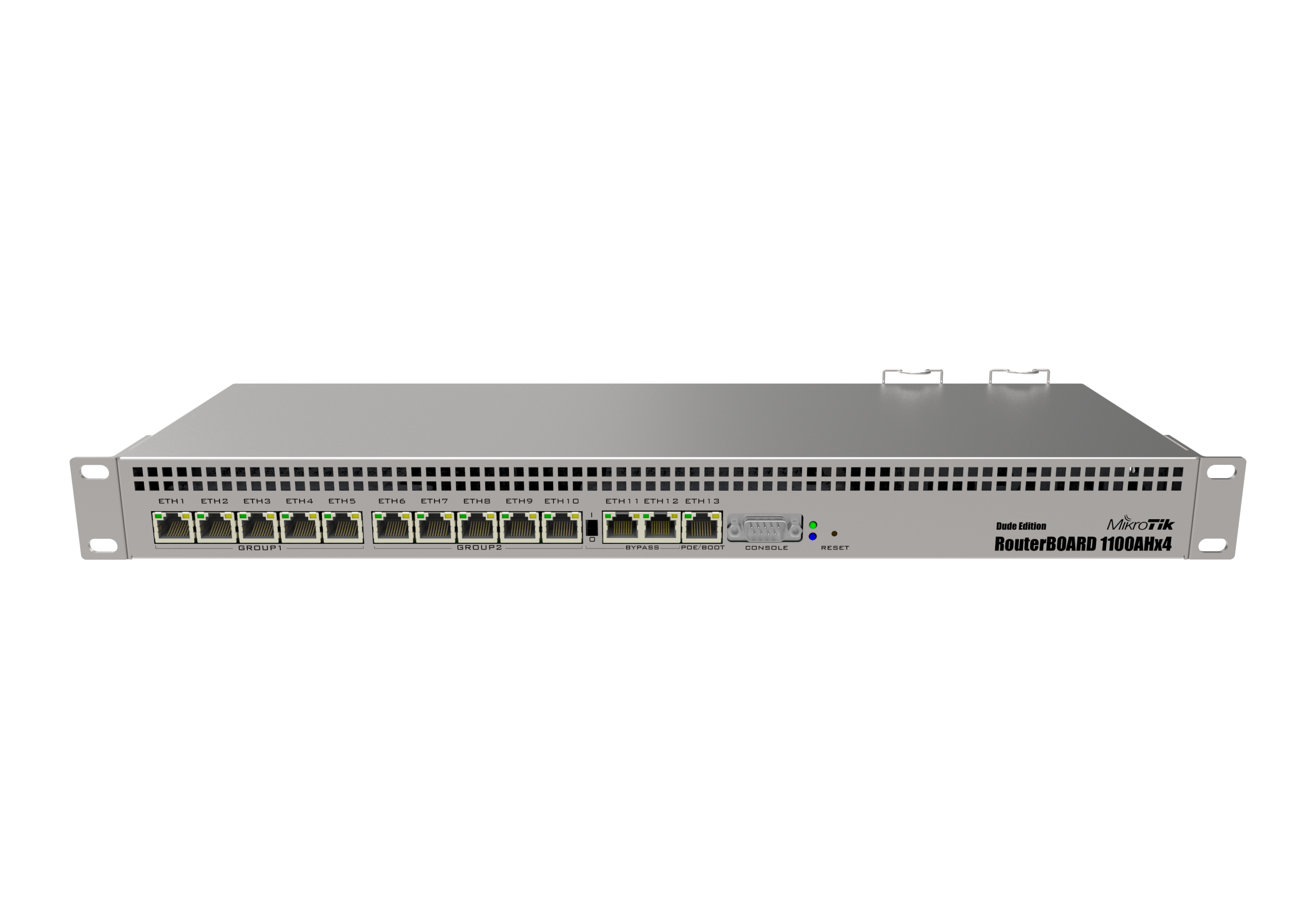

MikroTik RB1100AHx4 Dude Edition
Powerful 1U rackmount router with 13x Gigabit Ethernet ports, 60GB M.2 drive for Dude database
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128). Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed. Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RB1100Dx4 Architecture ARM 32bit CPU AL21400 CPU core count 4 CPU nominal frequency 1.4 GHz Switch chip model RTL8367 Dimensions 443 x 148 x 44 mm RouterOS license 6 Operating System RouterOS Size of RAM 1 GB Storage size 128 MB Storage type NAND MTBF Approximately 200’000 hours at 25C Tested ambient temperature -40°C to 70°C IPsec hardware acceleration Yes Suggested price $385.00 Powering Details Number of AC inputs 2 Number of DC inputs 2 (2-pin terminal, PoE-IN) 2-pin terminal input Voltage -48, 20-57 V Max power consumption 33 W Max power consumption without attachments 25 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 20-57 V Ethernet Details 10/100/1000 Ethernet ports 13 Peripherals Details Extended storage 60GB M.2 SSD included Memory card type microSD Memory Cards 1 SATA ports 2x SATA3 Serial console port RS232 Number of M.2 slots 2 Other Details Current Monitor Yes PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes Certification & Approvals Details Certification CE, EAC, ROHS IP IP20 Included parts SATA cables Rack ears M.2 SSD 60GB Screw and feet kit (K10) 2x IEC cords The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
