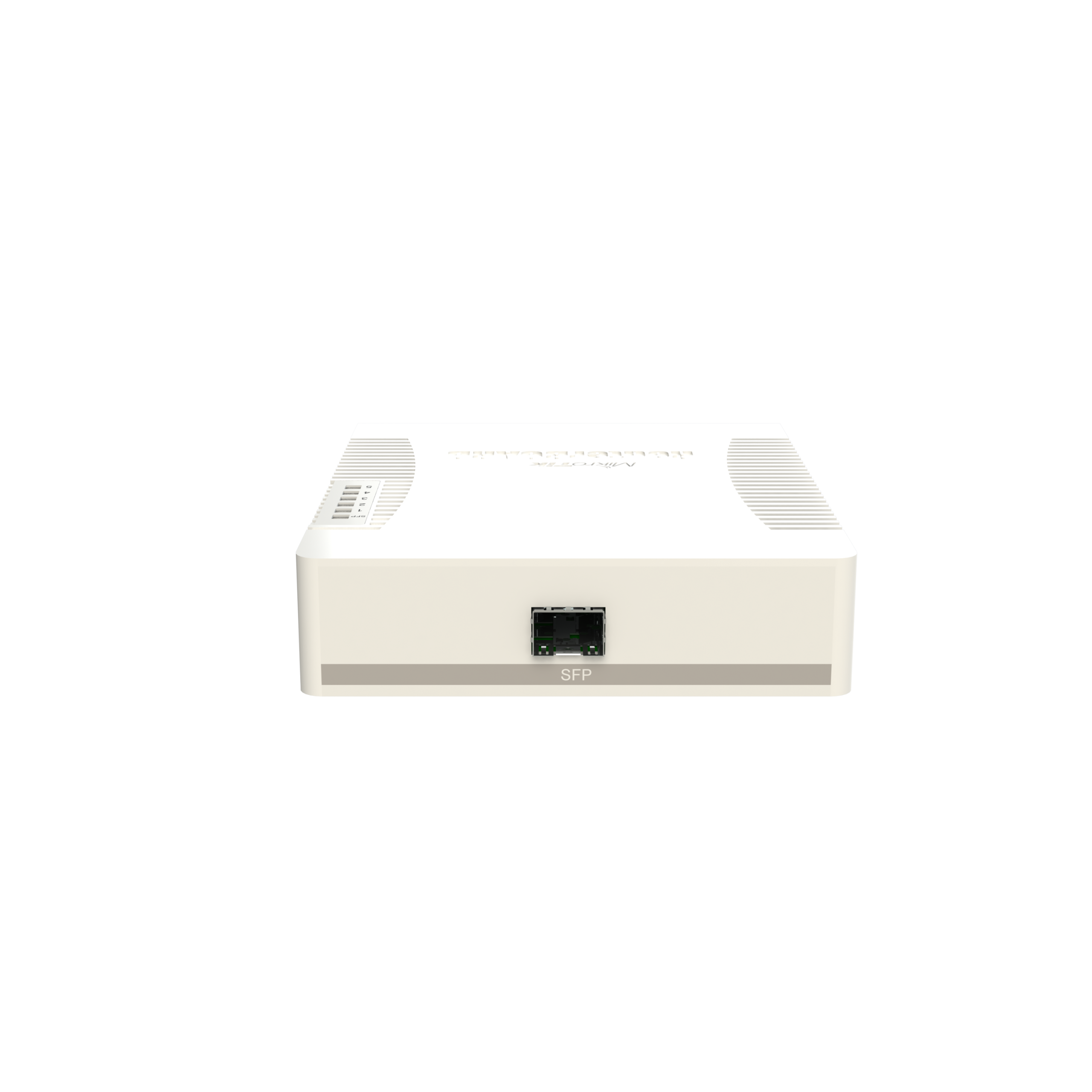

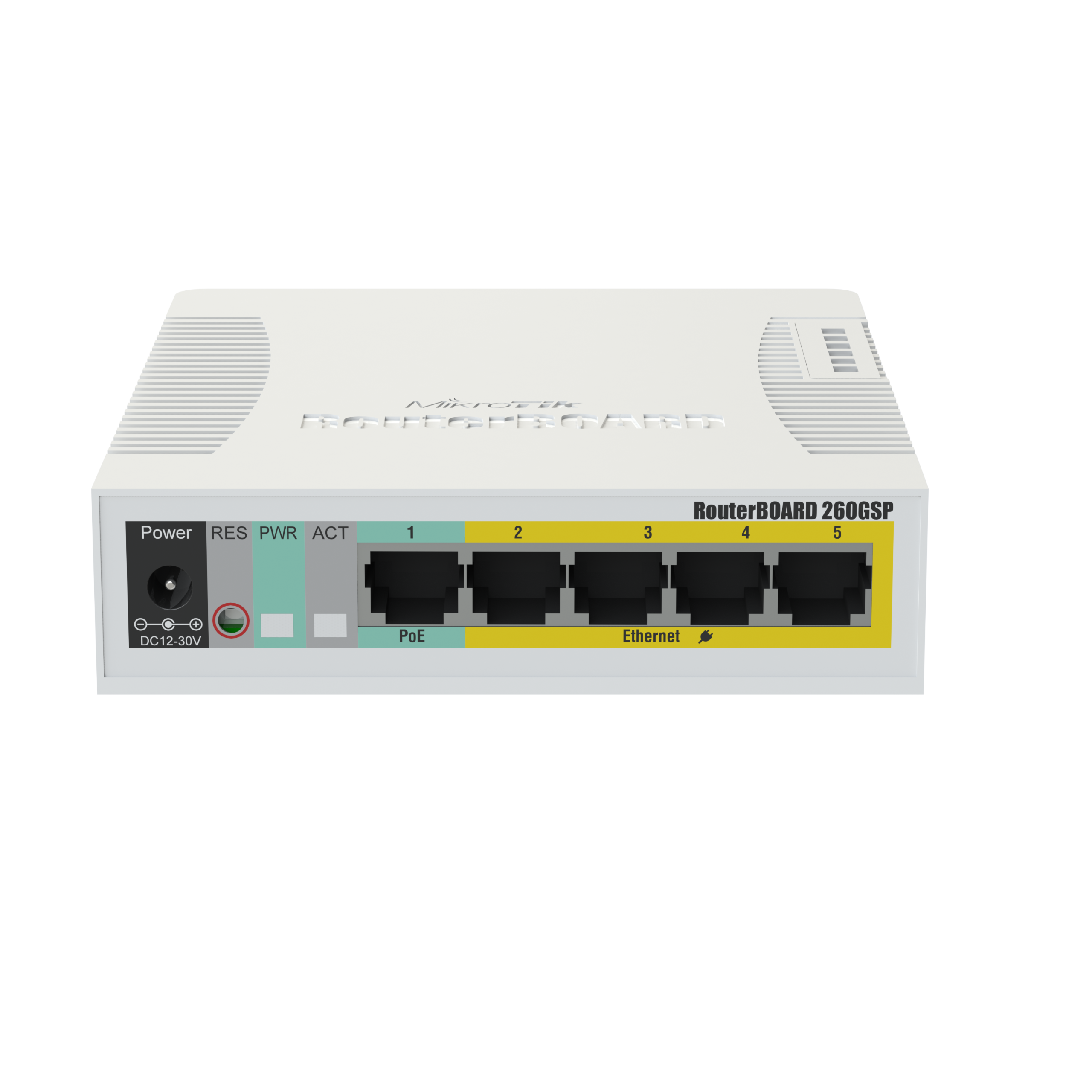

MikroTik RB260GSP
5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS
The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products – SwOS. Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code CSS106-1G-4P-1S Switch chip model QCA8337 Dimensions 113x139x28mm Operating System MikroTik SwOS Storage size 128 KB Storage type FLASH MTBF Approximately 100’000 hours at 25C Tested ambient temperature -20°C to 70°C Suggested price $55.95 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 11-30 V Max power consumption 53 W Max power consumption without attachments 5 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 11-30 V PoE-out Details PoE-out ports Ether2-Ether5 PoE out Passive PoE Max out per port output (input 18-30 V) 1 A Max total out (A) 2 A Ethernet Details 10/100/1000 Ethernet ports 5 Fiber Details SFP DDMI Yes SFP ports 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Certification & Approvals Details Certification CE, EAC, ROHS IP IP20 Included parts 24V 2.5A power adapter IEC cord Related products XS+2733LC15D $349 S+AO0005 $49 S-55DLC80D $39 XS+DA0003 $39 S-31DLC20D $29.00 XS+DA0001 $29 S-RJ01 $29.00 S+85DLC03D $59.00 S-85DLC05D $22.00 S-3553LC20D $79.00 S-4554LC80D $89
