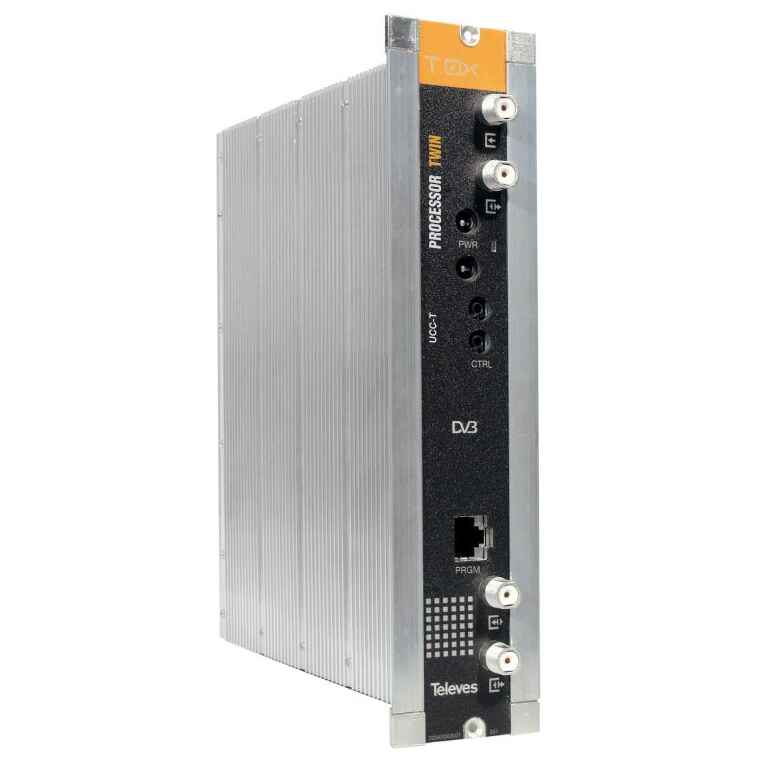

Processor Channel A/D Twin Televes
KSh155,978.00
Module that processes 2 input channels, analog or digital, regardless of the type of service, to function as a channel converter (using different input and output channels) or as an amplifier (with the same input and output channel). Televes 564901
Module that processes 2 input channels, analog or digital, regardless of the type of service, to function as a channel converter (using different input and output channels) or as an amplifier (with the same input and output channel).
Stands out for
SAW Filtering (Surface Acoustic Wave). It provides high selectivity, avoiding interfering adjacent channels.
Adjustable slope, to balance the signal within the bandwidth.
Remotely controllable with the CDC (Head Control)
Features
In converter mode, it allows assigning a different output channel to the input channel (Twin).
In amplifier mode, it allows to equalize and filter a Digital Multiplex to adapt it to the levels of the rest of the signals.
Specifications
Reference 564901
INPUT
A/D RF Input frequency MHz 47…862
Frequency steps KHz 125 (digital), 166 (digital), 250 (analog)
Engagement margin ? 500
Gain input loop dB 0 ? 3
Input leves dB 50 a 80
Bandwidth (filter) MHz 6 /7/ 8
Power preamplifiers Vdc 0, 12, 24
Return losses dB > 10
Impedance ? 75
OUTPUT
A/D RF Output Frequency MHz 47…862
Frequency steps KHz 125 (digital), 166 (digital), 250 (analog)
Maximum output level dB?V 80 ? 5 typ.
margin dB > 15
Spurious level dBc > 60
END (Equivalent Noise Degradation) dB < 2
Passage losses ? 1,5
Return losses > 12
Impedance ? 75
GENERAL Feeding Vdc 24
Consumption mA 400 (0 Prev.), 450 (1 Prev.)
Protection index IP 20
?
