RJ45 female connector UTP Cat 6A for data cables Televes…
KSh17,230.00

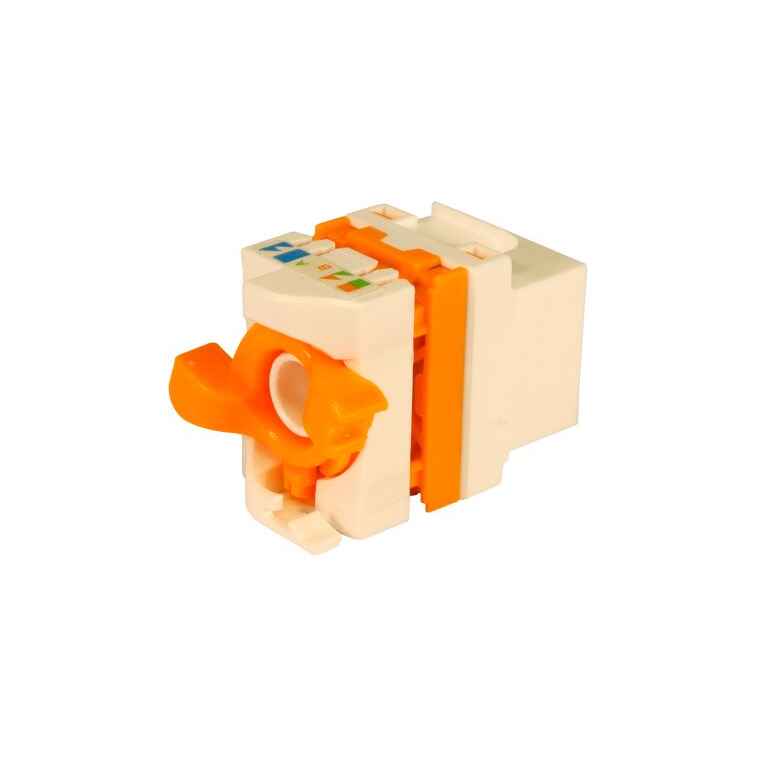

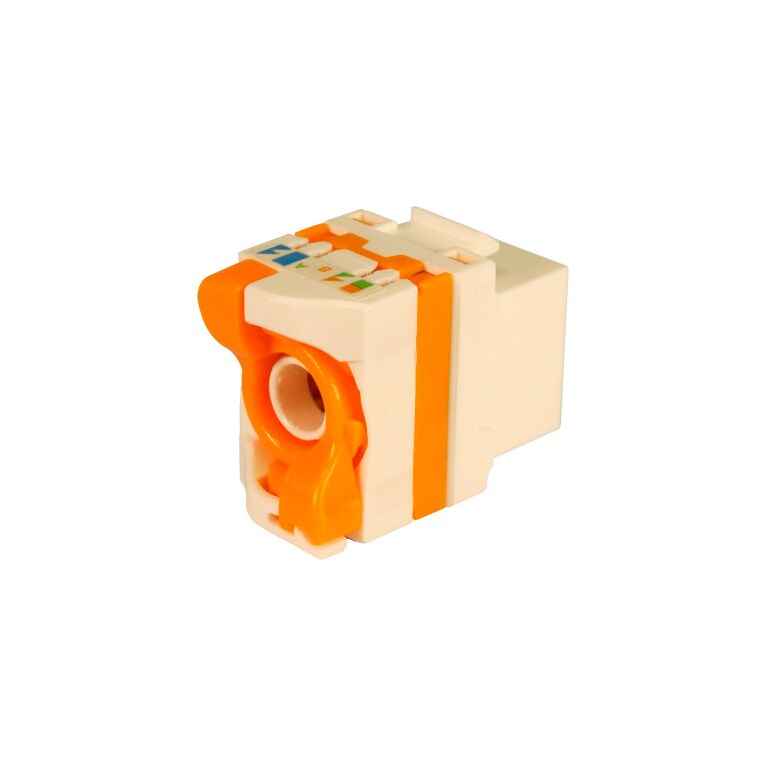

RJ45 UTP Cat 6A female connector, reusable and easy to connect. The connector allows self-crimping by rotating the wing-nut built into the rear part. Supplied in 10-unit professional plastic box.
RJ45 UTP Cat 6A female connector, reusable and easy to connect. The connector allows self-crimping by rotating the wing-nut built into the rear part.
Supplied in 10-unit professional plastic box.
Highlights
Wing nut-type connector: no specific tool is required for installation
Reusable: can be removed and reinstalled without deteriorating or losing functionality
Multiple-connection guaranteed without losses
Main features
Optimal for Cat 6A UTP, Cat 6 UTP, Cat 5e UTP and Cat 5 UTP
180? cable input
Labels with connection diagrams (A or B) are included on the connector
Gold-plated pins
Specifications
Electrical
Voltage rating 125 V c.c RMS
Current rating 1,5 A
Contact resistance 100 m?
Insulation resistance 1000 M?
Dielectric streght 750 60 Hz / 1 min
Optimal for categories 5UTP, 5e UTP,?6UTP, 6A UTP Cat.
Mechanical
Operative life 750 Times plugging 1
Weight 6,4 g
Measurement 16,6 x 22,4 x 30,4 mm
IDC N.? EIA/TIA 568 A EIA/TIA 568 B
Pair Wire colour Pair Wire colour
PIN5 1 White/Blue 1 White/Blue
PIN4 Blue Blue
PIN1 3 White/Green 2 White/Orange
PIN2 Green Orange
PIN3 2 White/Orange 3 White/Green
PIN6 Orange Green
PIN7 4 White/Brown 4 White/Brown
PIN8 Brown Brown
Application example
