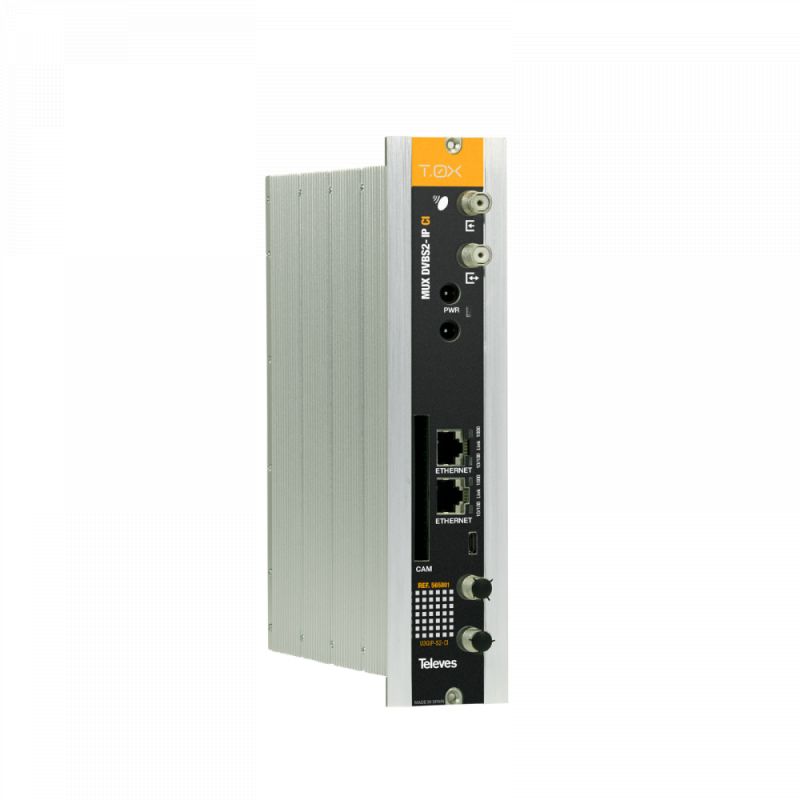

Streamer with remultiplexing DVBS/S2 – IP, with CI Televes

Streamer generating an IP encapsulated output from the multiplexing of the services available in up to 3 different TV SAT transponders.

These may be extracted from 2 different satellites (2 independent SAT inputs), or from a single satellite, using the headend’s input loop.

The encrypted satellite channels are transformed into free IP services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization.

The system will encompass a power supply and some streamer modules depending on the number of services to be distributed.

Highlights
32 IP streams SPTS
DiSEqC 1.0 for multiswitches control
Service decryption by insertion of a PCMCIA module
Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802)
Internal switch for IP out Daisy chain of serveral modules
Embedded user web interface for module configuration:
Configuration of the entire headend selecting one of the module as a master
Automatic detection of the modules that are connected to the master
Cloning function to replicate configurations between modules and headends
Main features
Selection of services among the 3 input muxes to distribute in streaming
Provides flow information of each service to estimate the global output flow of the module
Device monitoring and signal status LEDs
Specifications
SATELLITE
DEMODULATOR Input frequency MHz 950…2150
Symbol rate Mbaud 2 – 45
?Frequency steps MHz 1
?In/Out connectors tipo ?F? female
?Input impedance ? 75
?LNB powering Vdc/KHz 13 – 17 – OFF / 22KHz (ON-OFF)
?Satellite selection (DiSEqC) Port A, B, C, D
?Through losses (typ.) dB < 1,5 ?Modulation DVB-S2 QPSK, 8PSK DVB-S QPSK ?FEC inner code LDPC 9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2 ?FEC outer code Bose-Chaudhuri-Hocquenghem ?Roll-Off factor % 20, 25, 35 Input SWR (min.) dB 10 ?IP OUT ?Mode Multicast/Unicast ?Format SPTS ?Protocol IPv4, UDP, DHCP ?Number of IP services Max. 32 ?Connectors 2 X RJ45 (1 GB Ethernet 1000 BaseT) ?GENERAL ?Consumption 24Vdc (Base+CAM+LNB) mA 1050 (450+100+250/LNB) ?Protection index IP IP20 ?Temperature range ?C 0...45
