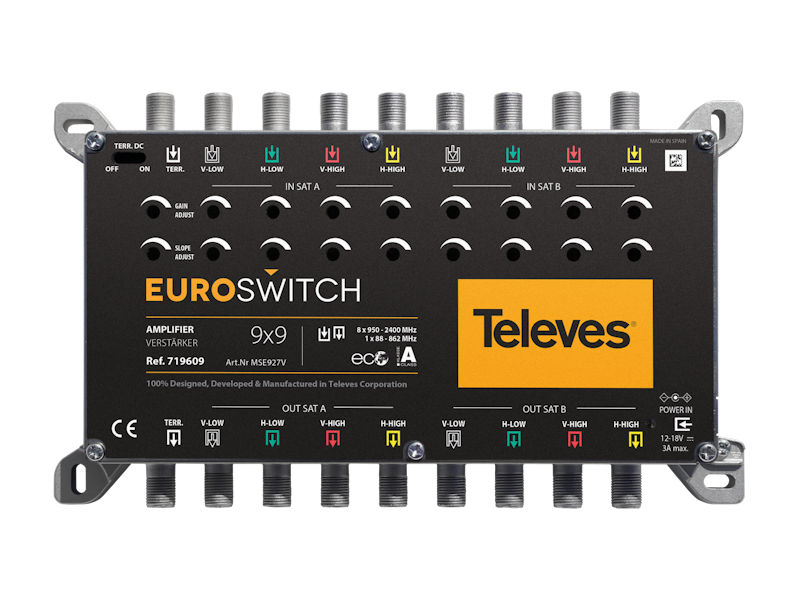

TELEVES Euroswitch 9×9 CASCADE Launch Amp
TELEVES Euroswitch 9×9 CASCADE Launch
Amp 27/31dB Vo 114/117dBµV – 2 Year
Warranty *Special Order! NCNR – Check Lead Time* Compact amplifier equipped with 9 inputs
(one terrestrial and the four polarities of two satellites) that allows
increasing the number of users in the installation while optimizing the
signal received by each of them. Amplification around 27 dB for terrestrial,
and 31 dB for satellite. RED compliant
Main Features: High shielding
(A class) thanks to its manufacture in Zamak Low power consumption Wide
12-18V power supply range, making it compatible with most existing systems
Input and output colour identification
