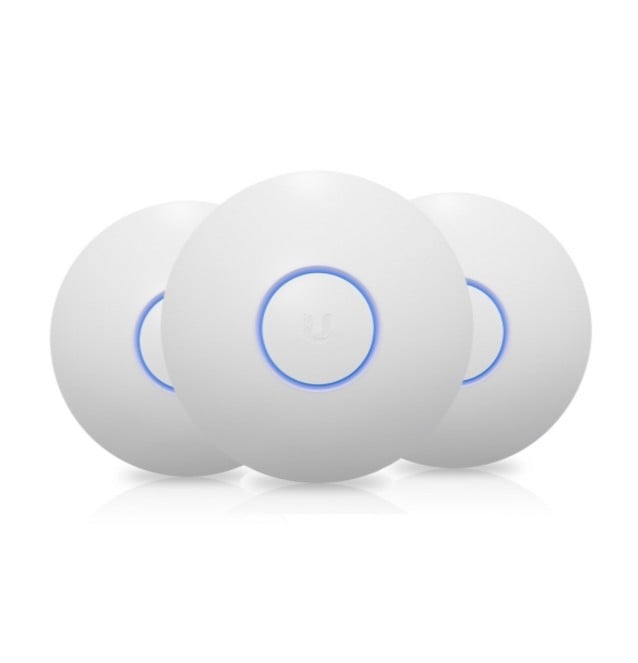

Ubiquiti Networks UAP-PRO-3 wireless access point 450 Mbit/s White Power over Ethernet (PoE)

Ubiquiti
UAP-Pro-3 – combining high quality and an affordable price
The set of innovative UAP-Pro-3 access points is distinguished by its
functionalities and work. It works perfectly in environments that require
high capacity wireless networks. The devices use Wi-Fi 802.11 a/b/g/n
technology. Their raw, Ubiquiti signature design makes them an ideal fit for
any space.

The UniFi UAP-Pro access point set works perfectly in high capacity
wireless networks. Ubiquiti ensures that their products are distinguished by
innovations, high quality, ease of use and a signature (and aesthetic)
design.

Perfect parameters

 The devices can transfer data with speeds of up to 450 Mbit/s. They work
in the 2.4 GHz (3×3 MIMO) and 5 GHz (2×2 MIMO) bands. They are equipped with
two Ethernet LAN (RJ-45) ports. They are powered with the use of Passive
Power over Ethernet (48V) technology, also called PoE.

Latest technologies in a compact form

Users value these devices not only because of their functionality and
reliability, but also because of the signature Ubiquiti look that combines
simple shapes with industrial design.

Key features
high level capacity
5 times better speed with the Dual-Radio 3×3 11AC MIMO technology
resistance ideal for unfavourable weather conditions
scalability
extraordinary design

Use

The UAP-Pro access points are a perfect fit for a variety of environments,
including offices, hotels or schools, and provide perfect wireless
connection.

Structure example

Comparison


  UAP-IW UAP UAP-LR UAP-PRO
2.4 GHz Speed¹ 150 Mbps 300 Mbps 300 Mbps 450 Mbps
5 GHz Speed¹       300 Mbps
Range¹ 25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)
Gigabit Ethernet

Secondary Ethernet Port


Wi-Fi Standards 802.11 b/g/n 802.11 a/b/g/n 802.11 a/b/g/n 802.11
a/b/g/n
2.4 GHz

5 GHz

Simultaneous Dual-Band

Ubiquiti Passive PoE

802.3af PoE
²

Security Lock

See video

PoE Switch Compatibility for UAPs and UVCs
AP/Camera
Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter:
INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
