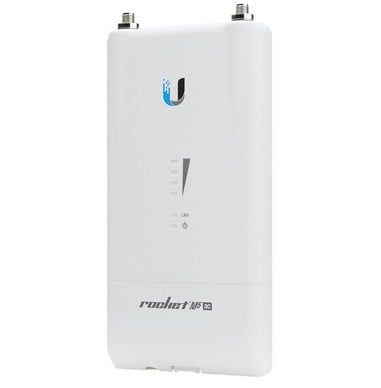

Ubiquiti R5AC-PTMP Networks Rocket AC 450 Mbit/s White
KSh32,902.41
Ubiquiti
R5AC-PTMP – high quality solution
The Ubiquiti R5AC-PTMP is a reliable solution used to support highly
efficient Point-to-MultiPoint connections.
The device belongs to the Air Max Rocket AC series. Is is based on airPrism
technology which enables a high SNR ratio. The device works in the 5470 –
5875 MHz band.
Work
This product is equipped with a 720 MHz Atheros MIPS 74KC processor. It
uses 128 MB of internal memory and 16 MB of flash memory. The device works in
the 802.11ac standard.
Construction
It is a high quality product capable of working in unfavourable weather
conditions. Its case is UV resistant. It can be used at temperatures ranging
from -40 to 80 degrees Celsius.
Use
The R5AC-PTMP is used to create emitters where high capacity is required.
It is used to create Point-to-MultiPoint links.
Key features
works in the 5 GHz band
330 Mbps bandwidth
airMax ac technology
airPrism technology
198.5 x 86.4 x 44.1 mm size
Comparison
R5AC-Lite R5AC-PTP R5AC-PTMP
FREQUENCY Full-Band 5 GHz Mid-Band 5 GHz Mid-Band 5 GHz
THROUGHPUT 500+ Mbps (max. 80 MHz) 500+ Mbps (max. 80 MHz) 330+ Mbps (max.
40 MHz)
PORTS (1) 10/100/1000 Ethernet (1) 10/100/1000 Ethernet (1) 10/100/1000
Ethernet
airMAX ac TECHNOLOGY
airPrism TECHNOLOGY
PtP FUNCTIONALITY
*
PtMP FUNCTIONALITY
**
*
GIGABIT ETHERNET
UBIQUITI POE
OUTPUT POWER 27 dBm 27 dBm 27 dBm
Manufacturer’s content
Read more in the manufacturer’s documentation
Read the manual
Specifications
Related products
-
Read moreUbiquiti

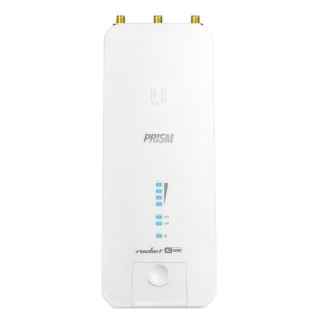

Networks RP-5AC-Gen2 White Power over Ethernet (PoE)
Ubiquiti Networks RP-5AC-Gen2Ubiquiti Networks has designed airMAX ac radios with high performance and
ease of installation in mind. The Rocket®Prism 5AC Gen 2 features both airMAX
ac and airPrism technologies for maximum wireless performance in high density
areas.Management Wi-Fi Radio
The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy
setup using your mobile device.Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
GPS Synchronization
The Rocket® Prism AC supports GPS Sync for faster, more scalable,
carrier-class networks, with 90% higher throughout than competing
solutions.Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio
selectivity in unlicensed wireless band performance. airPrism technology
isolates signals within the operating channel to increase capacity and
throughput in co-location deployments.Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism
circuitry, and the airView® real-time spectrum analyzer to deliver maximum
spectral efficiency/throughput.Full-Band 5 and 2.4 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with
a single radio. The 2.4 GHz band is covered by the Rocket Prism 2AC.Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support,
real-time RF analytics, and an all-new design for enhanced usability.M5 R5AC-Lite R2AC-PRISM RP?5AC?Gen2
Frequency 5 GHz Full-Band 5 GHz Full-Band 2.4 GHz Full-Band 5 GHz
Throughput 150+ Mbps 500+ Mbps (Max. 80 MHz) 330+ Mbps 500+ Mbps (Max. 80
MHz)
Ports (1) 10/100 Ethernet (1) 10/100/1000 Ethernet (1) 10/100/1000 Ethernet
Port (1) 10/100/1000 Ethernet Port
airPrism™ Technology – –
Management Radio – –
GPS Sync – –
