Ubiquiti PoE Adapters
Showing all 26 results
-
Read moreUbiquiti

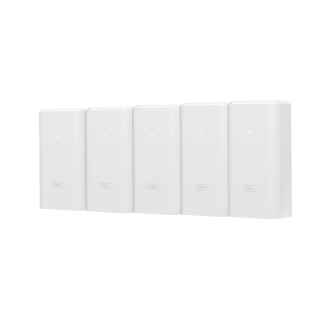

POE-24-12W efficiency and reliability
The PoE Ubuiqiti POE-24-12W adapter protects from electrostatic discharges
providing grounding and surge protection.The product is intended for 24 V devices. It can be mounted on walls with a
selection of optional mounting brackets.Parameters
The electrical rating required to power the device is 90-260 V, 47-63 Hz.
The adapter is equipped with two power signal LEDs. It works well with base
stations and client CPE stations. It is compatible with airGateway series
solutions.Key features
2 Ethernet LAN (RJ-45) ports
12 W power consumption
110-220 V voltageComparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read moreReliable
Ubiquiti POE-24-12W-G
The Ubiquiti’s wide offer of products includes reliable and high quality
POE-24-12W-G adapters.The PoE Ubiquiti POE-24-12W-G is characterised by 90-260 V, 47-63 Hz input
voltage. It is compatible with airGateway series solutions.Construction
POE-24-12W-G is equipped with two Ethernet LAN (RJ-45) ports. It is
dedicated to powering 24 V to 0.5 A devices. It is equipped with a power
signal LED and a reset button.Use
The adapter can be used with CPE client stations and base stations. It can
be used at temperatures up to 40 degrees Celsius. The use of optional
mounting brackets allows it to be mounted on a wall.Key features
2 Ethernet LAN (RJ-45) ports
24 V PoE
90-260 V voltageComparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-

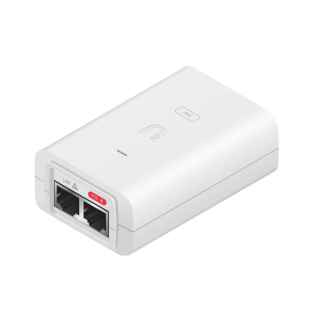

Read moreUbiquiti POE-24-12W-WH. Product color:
White. Power over Ethernet (PoE) voltage: 24 V, Output power: 12 W. Width:
1.73″ (44 mm), Depth: 1.14″ (29 mm), Height: 3.43″ (87 mm).
Number of products included: 1 pc(s) -
Read moreReliable

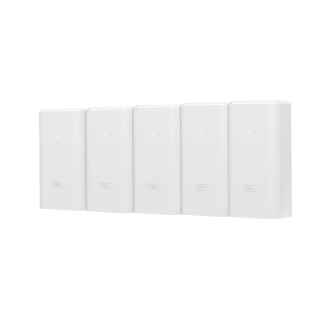

Ubiquiti POE-24-24W adapter
The Ubiquiti POE-24-24W adapter is perfect for CPE customer stations and
base stations.Combined with TOUGHCable solutions the adapter provides reliable
protections from surges and electrostatic discharges.Parameters
The device’s input voltage is 47-63 Hz with Ethernet LAN transfer speed at
10, 100, 1000 Mbit/s levels. It is intended for 24 V devices. Its input
voltage is 90-260 V.Construction
The PoE Adapter is equipped with 2 Ethernet LAN (RJ-45) ports. It can be
used at temperatures ranging from 0 to 40 degrees Celsius.Comparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read moreUbiquiti
POE-24-24W-G – reliable work
The Ubiquiti POE-24-24W-G adapter is distinguished by its high quality and
reliability.POE-24-24W-G’s output power is 24 V with input voltage at a level of 1.0 A.
The adapter is equipped with two Ethernet LAN RJ-45 Gigabit ports.Reliability
This model boasts reliable operation and supports passive PoE. It is
compatible with Ubiquiti TOUGHCable grounding systems, which increases its
resistance in unfavourable outdoor conditions by protecting it from
electrostatic discharges. The device is compliant with industrial standards:
IEC 60950-1:2005+A1, UL60950-1, EN55022:2010 and EN55024:2010.Key features
2 Ethernet LAN ports (RJ-45)
maximum data transfer speed through Ethernet LAN 1000 Mbit/s
PoE 24 V
1 A input powerComparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read morePOE-24-30W
adapter – a reliable Ubiquiti solution
The device perfectly complements high quality Ubiquiti products. It is
distinguished by reliability.The Ubiquiti POE-24-30W adapter is characterised by 30 W power and output
voltage of 24 V. The input voltage is 100-240 V. The adapter is equipped with
2 Ethernet LAN ports.Unrivalled quality
The adapter is built from durable components which increases its quality to
meet the requirements of the most demanding users.Key features
Gigabit Ethernet interface
maximum Ethernet LAN 1000 Mbit/s data transfer speed
2 Ethernet LAN (RJ-45) ports
24 V PoE
30 W output powerManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Add to cartUbiquiti
PoE Adapters provide a variety of features to help protect your PoE
devices.Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
-
Read morePOE-48-24W
– Ubiquiti class quality
The PoE Ubiquiti POE-48-24W provides reliable protection from surges and
electrostatic discharges.Its input voltage is 90-260 V power, 47-63 Hz. The device supports PoE. It
has a 48 V output voltage and 0.5 power.Use
POE-48-24W can be used at temperatures ranging from -10 to 60 degrees
Celsius and stored at temperatures ranging from -20 to 85 degrees Celsius. It
can be used in relative humidity from 5 to 90%.Key features
48 V output voltage
0.5 A output power
230 VAC voltageComparison
POE-48-24W POE-48-24W-G POE-50-60W
OUTPUT VOLTAGE 48VDC @ 0.5A 48VDC @ 0.5A 50VDC @ 1.2A
GIGABIT LAN Port NO YES YES
DIMENSIONS 88 x 57 x 33 mm 96 x 62 x 35 mm 101 x 60 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
-
Read moreUbiquiti
POE-48-24W-G – comfortable power
The Ubiquiti POE-48-24W-G is a uniquely reliable adapter that supports
passive type powering through the Ethernet network.The device is compatible with Ubiquiti TOUGHCable grounding systems which
provide increased protection from electrostatic discharges. The device’s
output voltage is 48 V with input power of 0.5 A.Construction
POE-48-24W-G is equipped with two Ethernet LAN Gigabit RJ-45 ports.
The adapter is IEC 60950-1:2005+A1, UL60950â€1, EN55022:2010, EN55024:2010
and FCC Class B compliant.Key features
2 Ethernet LAN (RJ-45) ports
PoE 48 V
90-260 input voltage
47-63 Hz input dataComparison
POE-48-24W POE-48-24W-G POE-50-60W
OUTPUT VOLTAGE 48VDC @ 0.5A 48VDC @ 0.5A 50VDC @ 1.2A
GIGABIT LAN Port NO YES YES
DIMENSIONS 88 x 57 x 33 mm 96 x 62 x 35 mm 101 x 60 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read moreUbiquiti POE-48-24W-WH. Product color:
White. Power over Ethernet (PoE) voltage: 48 V, Output power: 24 W. Width:
2.24″ (57 mm), Depth: 1.3″ (33 mm), Height: 3.46″ (88 mm).
Number of products included: 1 pc(s) -
Read moreUbiquiti
POE-50-60W – functionality and reliability
The Ubiquiti POE-50-60W adapter is a high quality device that complements
the Ubiquiti solutions.The POE-50-60W supports the passive Ethernet power solution. It is a
reliable device. In combination with the Ubiquiti TOUGHCable grounding system
it provides better protection from electrostatic discharges.Parameters
The device’s output voltage is 50 V with 1.2 A input power and 60 W power
consumption. The device is IEC 60950-1:2005+A1, UL60950-1, EN55022:2010 and
EN55024:2010 compliant.Construction
POE-50-60W is equipped with two Ethernet Gigabit RJ-45 ports. The
device is based on durable components which results in quality and
reliability as well as resistance to unfavourable weather
conditions.Key features
Gigabit interface
2 Ethernet LAN (RJ-45) ports
PoE 50 V
1.2 A input power
60 W power consumptionComparison
POE-48-24W POE-48-24W-G POE-50-60W
OUTPUT VOLTAGE 48VDC @ 0.5A 48VDC @ 0.5A 50VDC @ 1.2A
GIGABIT LAN Port NO YES YES
DIMENSIONS 88 x 57 x 33 mm 96 x 62 x 35 mm 101 x 60 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read morePOE-54V-80W
– Ubiquiti quality and reliability
The high quality, reliable POE-54V-80W adapter complements the wide and
varied Ubiquiti product offer.The POE-54V-80W’s output voltage is 54V with 80 W output power and an input
voltage of 90-260 VAC. The device is dedicated to EdgePoint products.Construction
POE-54V-80W is built from high quality components to increase its
durability and reliability. It can be used at temperatures ranging from 0 to
40 degrees Celsius.Key features
54VDC @ 1.5A output voltage
Gigabit LAN port
high durability
modern design
100 kHz max switching frequencyManufacturer’s content
Read more in the manufacturer’s documentation
-
Ubiquiti Networks POE-WM mounting kit
KSh127.63 -
Add to cart
Delivers
up to 15W of PoECompatible with most UniFi Protect cameras and some APs such as U6+ and U6
MeshSurge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE output
LED indicator for status monitoring
-
Add to cart
An adapter
that can power UniFi PoE+ devices with wireless mesh applications, or offload
PoE switch power dependencies.Delivers up to 30W of PoE+
Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR,
and other PoE+ devicesSurge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
-
Add to cart
Long-range
Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE
output.Extend PoE connections up to 1 km*
(1) GbE RJ45 port for PoE/PoE+ input**
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
*Repeaters must be placed in 100 m increments.
**Powered with pins 1, 2+; 3, 6- which may not be supported by certain
third-party switches. We recommend using a UniFi switch to power the device. -
Ubiquiti POE-24-12W-G-WH 24V DC PoE Adapter
KSh1,734.55Add to cartUbiquiti
PoE Adapters provide a variety of features to help protect your PoE
devices.Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
-
Read moreThe
Ubiquiti U-PoE PoE Adapter (15W) is a reliable solution for powering your
network devices efficiently. Designed by Ubiquiti, this adapter provides a
robust output of 48V DC @ 0.32A, ensuring that your devices receive the
necessary power for optimal performance. With a compact design measuring 86 x
46 x 33 mm and weighing only 100 g, it can easily fit into any setup without
taking up much space. The adapter features a Gigabit LAN port, allowing for
high-speed data transfer alongside power delivery, making it an ideal choice
for modern networking needs.One of the standout features of the Ubiquiti U-PoE PoE Adapter is its
impressive efficiency rating of 84.25%+, which minimizes energy waste and
reduces operational costs. The adapter is designed to operate within a wide
voltage range of 100—240V AC and is equipped with advanced surge protection
capabilities, including 1500A max surge discharge and 11V clamping protection
for data lines. This ensures that both your power and data connections remain
safe from unexpected surges, providing peace of mind in any
installation.With a temperature operating range of 0 to 40°C and a storage temperature
of -30 to 70°C, the Ubiquiti U-PoE PoE Adapter is built to withstand various
environmental conditions, making it suitable for both indoor and outdoor use.
Its certifications, including CE, FCC, IC, and UL, further affirm its
compliance with industry standards, ensuring reliability and safety in your
networking applications. -
Read moreThe

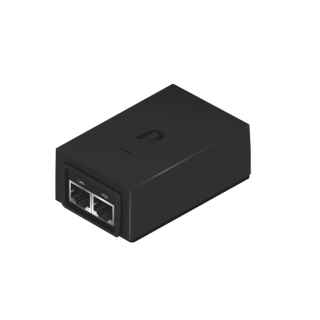

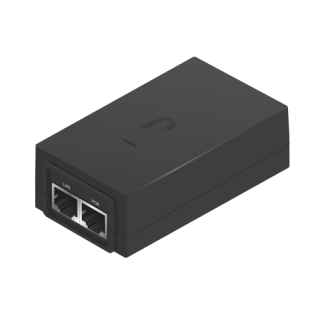

Ubiquiti U-PoE+ PoE+ Adapter (30W) is a high-performance power over Ethernet
solution designed to deliver reliable power and data connectivity. With a
robust output voltage of 48V DC @ 0.65A, this adapter is ideal for powering
devices such as IP cameras, wireless access points, and VoIP phones. Its
Gigabit LAN port ensures high-speed data transmission, making it a perfect
choice for modern network environments.Engineered for efficiency, the U-PoE+ adapter boasts an impressive 87%
efficiency rating, minimizing energy waste while providing stable power. The
device features advanced surge protection capabilities, including 1500A max
surge discharge for power and 36A peak pulse current for data, safeguarding
your equipment against voltage spikes. Additionally, it operates effectively
in a wide temperature range of 0 to 40°C (32 to 104°F), making it suitable
for various deployment scenarios.Manufactured by Ubiquiti, a leader in networking technology, the U-PoE+
adapter is built to meet rigorous standards with certifications including CE,
FCC, IC, and UL. Its compact design, measuring 93 x 62 x 35 mm, allows for
easy installation in tight spaces, while its durable construction ensures
long-lasting performance. This adapter is a reliable choice for anyone
looking to enhance their network infrastructure with a dependable PoE
solution. -

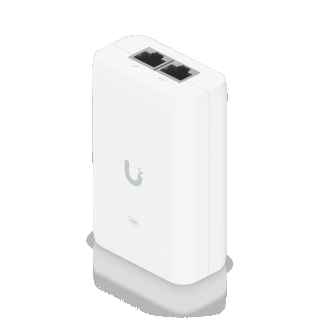

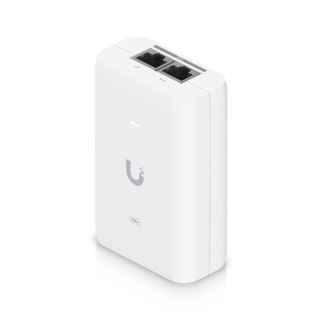

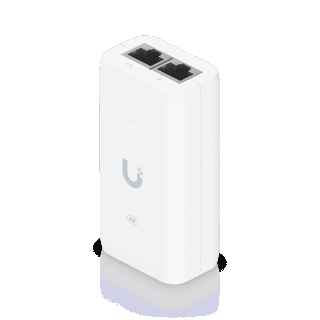

Read moreUbiquiti UACC-PoE+-2.5G. Ethernet
interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates:
10,100,1000,2500 Mbit/s. Product color: White, LED indicators: Status, Power
protection features: Over current, Peak pulse, Surge protection. Power over
Ethernet (PoE) voltage: 48 V, AC adapter input voltage: 100 – 240 V, AC
adapter frequency: 50/60 Hz. Compliance certificates: CCC, CE, Federal
Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL.
Width: 2.44″ (62 mm), Depth: 1.38″ (35 mm), Height: 3.66″ (93
mm)
