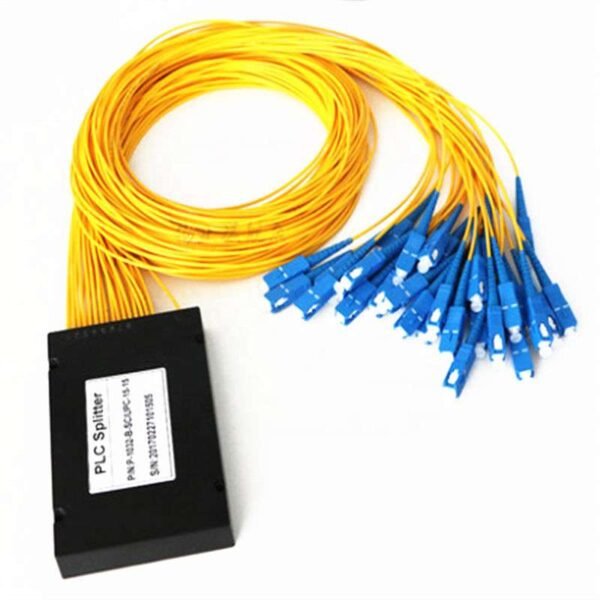

1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors – Kenya
KSh29,000.00
1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors?
1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors from the leading dealer in Nairobi Kenya, buy online 1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors and have it delivered at your doorstep.
?
Geehes PLC splitters feature low insertion loss, good channel-to-channel uniformity and low PDL over the 1260 to 1650 nm wavelength range. For maximum network robustness and minimum maintenance requirements, these splitters are designed to operate over a wide temperature range suitable for outside plant installation.
Service operators can extend service to customers taking advantage of passive optical networks requiring anywhere from 1 x 2 to 1 x 64 splits. Features:
?Single fiber, SC/LC/ST/FC-based connector
?In-line connection available
?Operating temperature: -40? to 85?C
?Cable Diameter Range: 1.5mm, 2.0mm, 3.0mm,2.0*3.0mm
Application:
?FTTx systems
?PON networks
?CATV links
?Optical signal distribution
?Broadband, CATV, telecom, data centers, LAN, WAN, medical, military and wireless
?Compliance
? Specification: ?
FIber Optical?PLC Splitter?
Parameter 1?4 1?8 1?16 1?32 1?64 2?4 2?8 2?16 2?32
Operating Wavelength(nm) 1260~1650
Port Wavelength Range (nm) 1310 ?20,1490 ?10 and 1550 ?20
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ?0.3
Return Loss@ 1310/1551 nm (dB) ?-55
Input Power (mW) 250max
Operating Temperature (?) -40~+85?
Storage Temperature (?) -40~+85?
Fiber Type Corning G657A1
1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors?
1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors from the leading dealer in Nairobi Kenya, buy online 1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors and have it delivered at your doorstep.
?
Geehes PLC splitters feature low insertion loss, good channel-to-channel uniformity and low PDL over the 1260 to 1650 nm wavelength range. For maximum network robustness and minimum maintenance requirements, these splitters are designed to operate over a wide temperature range suitable for outside plant installation.
Service operators can extend service to customers taking advantage of passive optical networks requiring anywhere from 1 x 2 to 1 x 64 splits. Features:
?Single fiber, SC/LC/ST/FC-based connector
?In-line connection available
?Operating temperature: -40? to 85?C
?Cable Diameter Range: 1.5mm, 2.0mm, 3.0mm,2.0*3.0mm
Application:
?FTTx systems
?PON networks
?CATV links
?Optical signal distribution
?Broadband, CATV, telecom, data centers, LAN, WAN, medical, military and wireless
?Compliance
? Specification: ?
FIber Optical?PLC Splitter?
Parameter 1?4 1?8 1?16 1?32 1?64 2?4 2?8 2?16 2?32
Operating Wavelength(nm) 1260~1650
Port Wavelength Range (nm) 1310 ?20,1490 ?10 and 1550 ?20
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ?0.3
Return Loss@ 1310/1551 nm (dB) ?-55
Input Power (mW) 250max
Operating Temperature (?) -40~+85?
Storage Temperature (?) -40~+85?
Fiber Type Corning G657A1
