1 X 64 PVC 0.9mm fiber jacket SC/APC Rack Splitter connectors – Kenya
KSh30,000.00

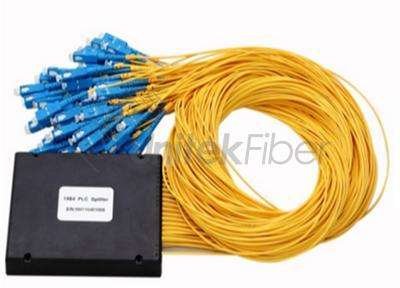

1 X 64 PVC 0.9mm fiber jacket SC/APC Rack Splitter connectors**
The 1 x 64 PVC 0.9mm Fiber Jacket SC/APC Rack Mount Splitter is a high-capacity optical splitter designed for efficient signal distribution in fiber optic networks. This splitter features one input fiber and 64 output fibers, making it ideal for applications requiring extensive signal distribution, such as large-scale FTTH, PON, and CATV networks.
Housed in a compact, 19-inch rack-mountable enclosure, it is equipped with SC/APC connectors, which provide reduced back reflection and improved performance in high-density environments. The splitter uses singlemode fibers with a 0.9mm PVC jacket, ensuring both flexibility and durability.
With a typical insertion loss of **21.5 dB, high return loss of **60 dB, and excellent uniformity, the splitter ensures reliable and consistent performance across a wide wavelength range of 1260 nm to 1650 nm. Designed for easy installation and maintenance, it includes built-in cable management and clear port labeling. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, this splitter offers high stability and longevity for demanding network applications.
Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260**1650
Channel Number ** 1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB **45(PC)**50(UPC)**60(APC)
Directivity dB **55
** Dimension (mm) **
Splitter 1X2 1X4 1X8 1X16 1X32 1X64
Cassette size 60**7**4 60**7**4 60**7**4 60**12**4 80x20x6 100x40x6
Splitter 2X2 2X4 2X8 2X16 2X32 2X64
Cassette size 60**7**4 60**7**4 60**7**4 60**12**4 80x20x6 100x40x6
Products: Fiber Optic PLC Splitter 1**64 Mini Module 900**m SC APC Singlemode Package Style: Mini Module
Connector Type: SC/APC Fiber Type: Singlemode
Return Loss: **60dB Insertion Loss: 13.5/13.8
Operating/Storage Temperature: -40~85**C Directivity: **55dB
High Light:
rack mount plc splitter
,
plc splitter module
1 X 64 PVC 0.9mm fiber jacket SC/APC Rack Splitter connectors?
The 1 x 64 PVC 0.9mm Fiber Jacket SC/APC Rack Mount Splitter is a high-capacity optical splitter designed for efficient signal distribution in fiber optic networks. This splitter features one input fiber and 64 output fibers, making it ideal for applications requiring extensive signal distribution, such as large-scale FTTH, PON, and CATV networks.
Housed in a compact, 19-inch rack-mountable enclosure, it is equipped with SC/APC connectors, which provide reduced back reflection and improved performance in high-density environments. The splitter uses singlemode fibers with a 0.9mm PVC jacket, ensuring both flexibility and durability.
With a typical insertion loss of ?21.5 dB, high return loss of ?60 dB, and excellent uniformity, the splitter ensures reliable and consistent performance across a wide wavelength range of 1260 nm to 1650 nm. Designed for easy installation and maintenance, it includes built-in cable management and clear port labeling. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, this splitter offers high stability and longevity for demanding network applications.
Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260?1650
Channel Number ? 1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ?45(PC)?50(UPC)?60(APC)
Directivity dB ?55
? Dimension (mm) ?
Splitter 1X2 1X4 1X8 1X16 1X32 1X64
Cassette size 60?7?4 60?7?4 60?7?4 60?12?4 80x20x6 100x40x6
Splitter 2X2 2X4 2X8 2X16 2X32 2X64
Cassette size 60?7?4 60?7?4 60?7?4 60?12?4 80x20x6 100x40x6
Products: Fiber Optic PLC Splitter 1?64 Mini Module 900?m SC APC Singlemode Package Style: Mini Module
Connector Type: SC/APC Fiber Type: Singlemode
Return Loss: ?60dB Insertion Loss: 13.5/13.8
Operating/Storage Temperature: -40~85?C Directivity: ?55dB
High Light:
rack mount plc splitter
,
plc splitter module
