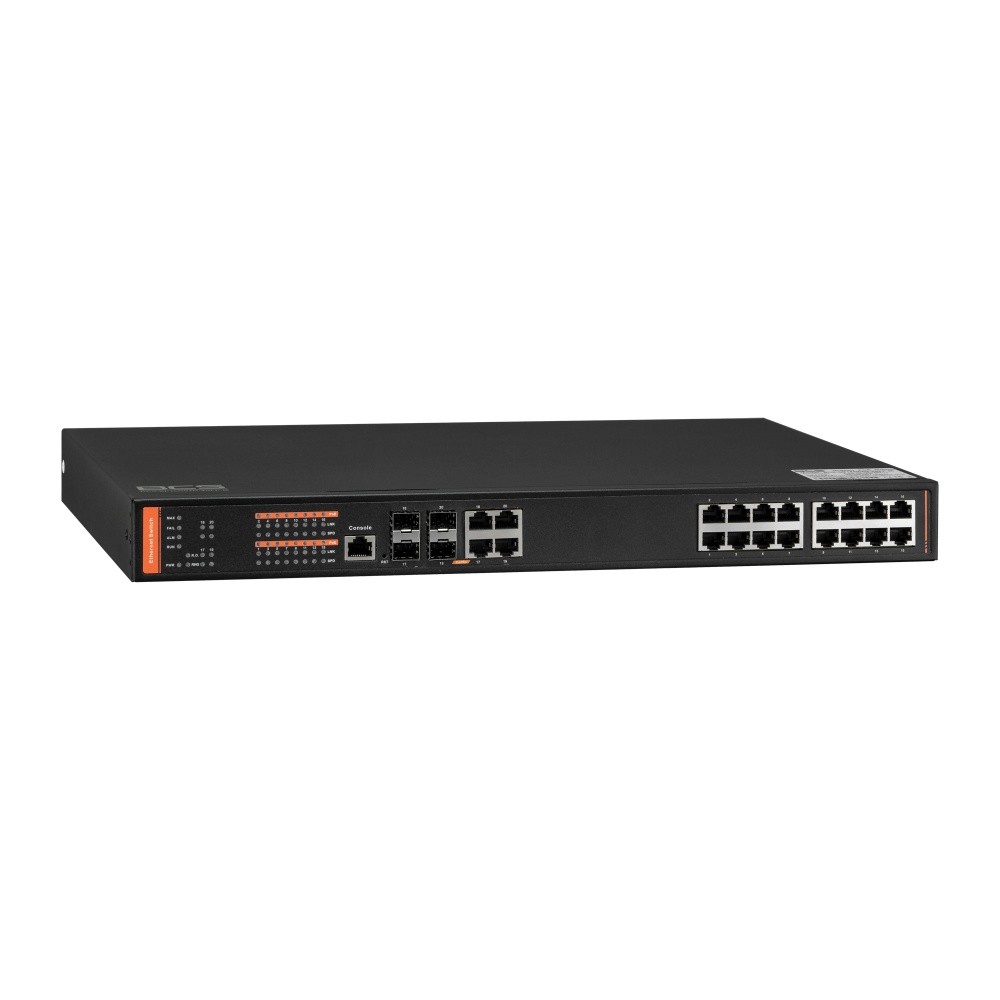

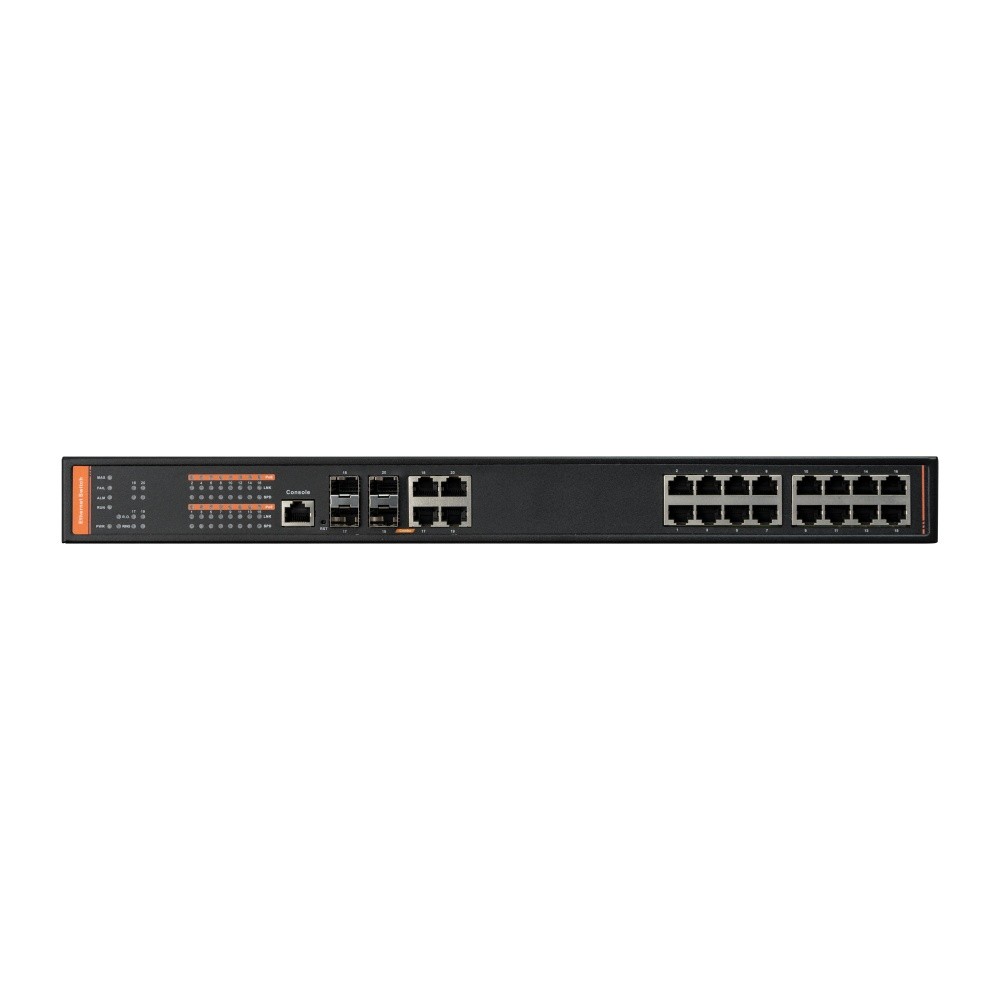

BCS BCS-SP16G04G-4SFP-M Managed PoE Switch 16 Ports 1Gbps with SFP and RJ45 Uplinks

Name: BCS BCS-SP16G04G-4SFP-M Managed PoE Switch 16 Ports 1Gbps with SFP and RJ45 Uplinks | +254720548999
SKU: BCS-L-TIP56VCR6L6-Ai1
Price: 168349.79 KES
Availability: InStock

KSh168,349.79

>
Product Line: BCS UNIVERSAL

>
PoE Ports: 16×RJ45 1Gbps

>
Uplink Ports: 4×RJ45 1Gbps / 4×SFP 1Gbps

>
Managed Switch: Yes

>
Management Port: 1×RJ45

>
Management Features: Redundant network, STP/RSTP, Multicast, IGMP Snooping
V1/V2, VLAN, IEEE 802.1Q 4K VLAN, QINQ, Link Aggregation, CLI/WEB/SNMP, Port
mirroring, Ping, Alarm management, RMON, SNMP Trap, DHCP Snooping, User
hierarchical management

>
IEEE Standards: 802.3af / 802.3at / 802.3 / 802.3u / 802.3x / 802.3ab /
802.3z / 802.1q

>
Transfer Rate: 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation,
auto MDI/MDIX

>
Packet Forwarding: 47.616Mpps

>
Throughput: 56Gbps

>
MAC Table: 8K

>
Packet Buffer Memory: 4Mbit

>
Standard Mode: 100m

>
PoE Pin: 1,2(+), 3,6(-)

>
PoE Switch Power: 400W (max 30W/port)

>
Protection: 4kV surge protection

>
Power Supply: 100~240V AC

>
Operating Conditions: 0°C~+50°C max 90% RH

>
Weight: 3.6 kg

>
Enclosure: 1U

>
Dimensions (W×D×H): 440×200×45mm

The
BCS-SP16G04G-4SFP-M is a 16-port managed PoE switch designed to provide
high-performance networking solutions. Manufactured by BCS, this switch is
part of the BCS UNIVERSAL product line and supports 16×RJ45 1Gbps PoE ports,
ensuring efficient power delivery and data transmission. Enhanced with 4
uplink ports, comprising both 4×RJ45 1Gbps and 4×SFP 1Gbps, it allows for
greater flexibility and scalability in network management.

This switch is equipped with advanced management features, including
support for redundant network, STP/RSTP, VLAN, and IGMP Snooping across
versions 1 and 2. Its IEEE standards compliance (802.3af / 802.3at / 802.1Q)
ensures seamless integration into existing networks, making it ideal for
various application scenarios. The switch boasts a maximum PoE power of 400W,
providing up to 30W per port, which efficiently supports connected
devices.

Built with performance in mind, the switch delivers a packet forwarding
capacity of 47.616Mpps and a total bandwidth of 56Gbps, enabling smooth data
flow even under heavy load. The 4kV surge protection feature ensures
reliability and durability in demanding environments. With its compact 1U
rack-mounted design and operating conditions ranging from 0°C to +50°C, the
BCS-SP16G04G-4SFP-M stands out as a robust solution for managing evolving
network demands.
