Connector RJ45 Male UTP Category 6A 209922 from Televes

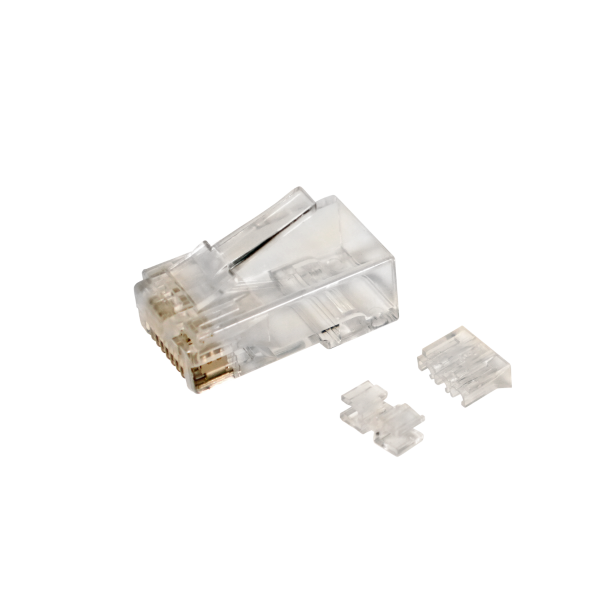

Transparent Male RJ45 Connector for Cat6A UTP Cable 209922
RJ45 connector for UTP data cable. UTP cables are used for local data or internet network installations.
To connect the connector to the cable, a specific tool called a crimper is necessary, which will fix the connector to the UTP cable.
The connector has 8 connection pins and has an operational life of 2000 connections. It is made of clear plastic.
Technical Specifications of the Transparent Male RJ45 Connector for Cat6A UTP Cable 209922
?
Data connector model ? Male
Data connector type ? RJ45
Categorie ? Cat 6A
Connector shielding ? No
Voltage max. Vac 250
Max. current mA 2
Contact resistance m? 20
Insulation resistance M? 500
Dielectric strength (60Hz/1min) Vac 1000
Special tool required ? Yes
Durability (connection cycles) ? 2000
Reusable ? No
Cable output ? 180?
Colour ? Transparent
