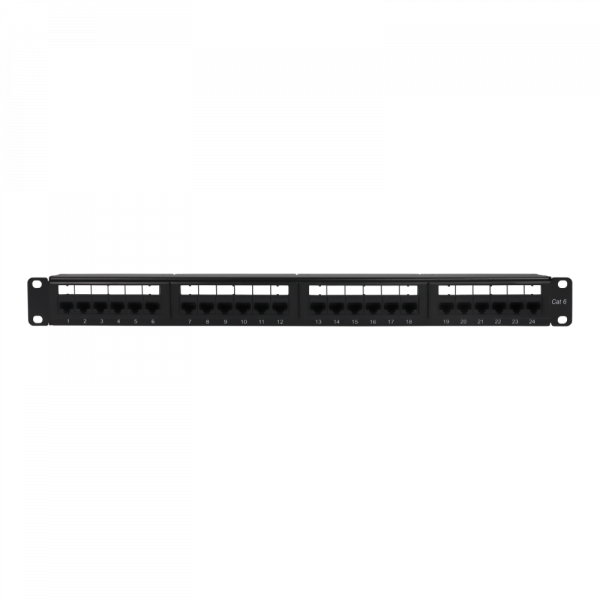

Connectorized Rack Panel 19” 1U up to 24RJ45 CAT6 UTP Female
Connectorized panel for Rack 19” 1U up to 24 RJ45 CAT6 UTP Female
This panel has 24 RJ45 Cat6 UTP connectors for 19** rack, allowing the organization of cables in the rack cabinet. It has a height of 1U and comes with everything you need to install it and keep all the wiring organized.
The panel is made of a very resistant material, a die-cast zinc alloy that gives it great resistance. Each port is labeled with a number to make organization easier. Its connectors are reusable.
It includes:
*4 screws
*4 nuts
* 2 ties with velcro, for the organization and fastening of the wiring
* 8 plastic ties, for the organization and fastening of the wiring
Technical Specifications of the Connectorized Panel for Rack 19” 1U up to 24 RJ45 CAT6 UTP Female
?
Brand: Televes
Height: 1 Unit
Colour: Black RAL 9005
Connection Table: T568A or T568B on panel
Accessories included: 4 screws, 4 nuts, 2 velcro ties, 8 plastic ties
