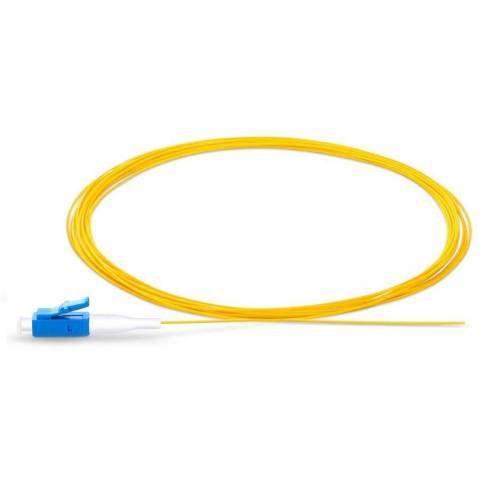

LC/UPC 15mtr Single Mode Pigtails
KSh1,100.00
Gigaset
Description
LC/UPC 15mtr Single Mode Pigtails
The LC/UPC 10mtr Single Mode Pigtails are premium fiber optic cables engineered for reliable, high-performance connectivity in telecommunications and networking applications. Featuring LC/UPC connectors, these pigtails are specifically designed for low insertion loss, making them ideal for long-distance signal transmission.
With a length of 10 meters (approximately 32.8 feet), these pigtails provide flexibility for various installations, whether in data centers, telecommunications networks, or for fiber optic patching. Constructed from single mode fiber with a core diameter of 9/125µm, they support high bandwidth and enable efficient data transfer over extended distances.
The pigtails are optimized for performance, with an insertion loss typically ≤ 0.3 dB, ensuring minimal signal degradation. Additionally, their return loss of ≥ 50 dB effectively reduces signal reflections, enhancing overall transmission quality. The UPC polishing of the connectors further improves optical performance by ensuring minimal contact loss.
Housed in a durable jacket made of PVC or LSZH (Low Smoke Zero Halogen) material, these pigtails are designed for safety and flexibility during installation. They can operate efficiently across a wide temperature range, typically from -40°C to +70°C, making them suitable for a variety of indoor and outdoor applications.
The LC/UPC 10mtr Single Mode Pigtails comply with industry standards such as Telcordia GR-326 and undergo rigorous factory testing to guarantee quality and performance. Each pigtail is carefully packaged to prevent damage during transport, ensuring that they arrive ready for immediate use.
These pigtails are an essential component for professionals looking to establish robust and reliable fiber optic connections, making them a trusted choice for enhancing network efficiency and performance in any environment.
