LNB Wide Band Kit and Optical Transmitter Module 1550nm FC/UPC
LNB Wide Band Kit and Optical Transmitter Module 1550nm FC/UPC
This kit will help you convert your RF signal coming from the LNB to an optical signal through the fiber cable. It is made up of a broadband LNB, with RF output, which captures the entire frequency spectrum of a satellite, transmitting them in 2 outputs (both vertical and horizontal) in a frequency range between 290 and 2340Mhz.
On the other hand, the kit also includes a 7dBm transmitter with 2 satellite inputs and one terrestrial and an FC/UPC optical output with which you can distribute up to a maximum of 32 users in the 1550nm window.

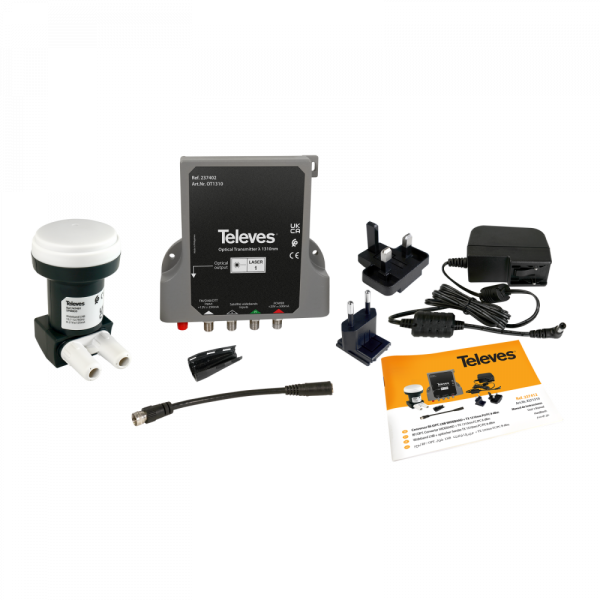

Kit Content:
*LNB Wide Band Ref. 747401
*Optical Transmitter 1550nm Ref. 237401
*The transmitter also includes its external power supply, Jack to F type adapter cable and EU and UK plugs.
*Caps
Technical Specifications of the LNB Wide Band Kit and Optical Transmitter Module 1550nm FC/UPC
?
Inputs ?
TERR V H
Frequency range MHz
88 … 694 290 … 2340 290 … 2340
Input level dB?V
— 70 … 85 70 … 85
Input impedance ? 75
Wavelength nm 1550
Optical output power dBm 7
Input voltage Vac 20 … 20
Max power consumption W 7
Operating temperature ?C -20 … 60
